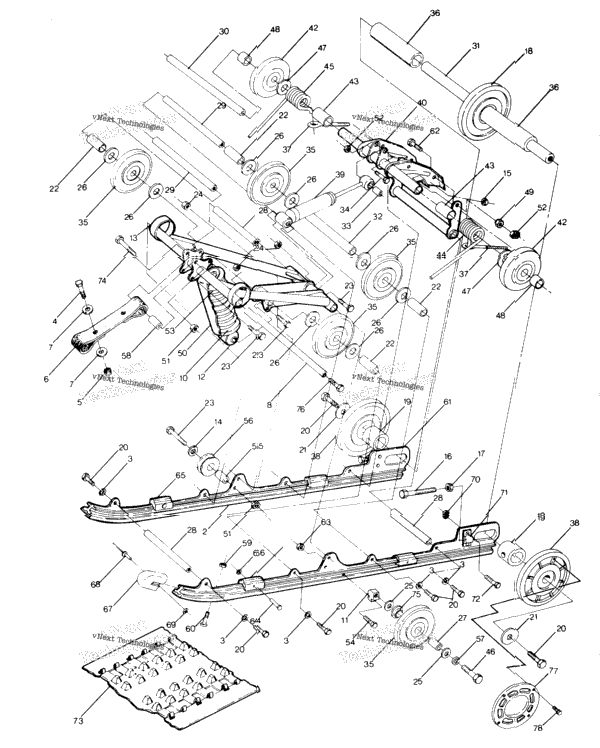

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1540554 | RAIL ASM,RH, SILVER (Incl. 64-66, 70-72) | ||
| 1 | 1540616 | RAIL ASM,RH 39 | 1 |
| 10 | 7552603 | SPRING LOCK WASHER | 10 |
| 2 | 7515307 | BOLT | 2 |
| 4 | 7542324 | NYLOK NUT | 4 |
| 5410397 | STRAP, LIMITER | ||
| 4 | 7555716 | WASHER | 4 |
| 5010149 | SHAFT,MOUNTING | ||
| 1 | 5210953 | RETAINER,SPRING | 1 |
| 2 | 5130570 | BOGIE WHEEL BRACKET | 2 |
| 7041142 | SUSPENSION SHOCK | ||
| 7041144 | SHOCK,FR.SUSP. (400 & 500 Only) | ||
| 1540565 | ARM, FRONT TORQUE | ||
| 7555743 | Discontinued | ||
| 2 | 7542402 | NUT,FLEXLOC | 2 |
| 2 | 7515455 | ADJUSTER BOLT | 2 |
| 2 | 7542440 | NUT | 2 |
| 1594021 | Discontinued | ||
| 5332641 | SPACER-IDLER-OUTER | ||
| 12 | 7515458 | SCREW | 12 |
| 7555732 | WASHER FLAT | ||
| 5332784 | Discontinued | ||
| 5 | 7515433 | SCREW | 5 |
| 7542425 | Discontinued | ||
| 4 | 7555804 | WASHER | 4 |
| 8 | 7556301 | BUSHING | 8 |
| 2 | 5332786 | SPACER | 2 |
| 3 | 5020392 | PIVOT ARM SHAFT | 3 |
| 2 | 5020415 | PIVOT ARM SHAFT | 2 |
| 5020426 | SHAFT,MTG,REAR | ||
| 5020395 | SHAFT,IDLER | ||
| 5332783 | TUBE, SUSPENSION | ||
| 1 | 5332631 | SPACER | 1 |
| 7515306 | SCREW | ||
| 6 | 1543018 | IDLER WHEEL, 5.35 IN | 6 |
| 1543020 | WHEEL,BOGIE (650 Only) | ||
| 5332734 | SPACER,IDLER,R.INNER | ||
| 2 | 7080221 | BOLT-EYE, SPRING ADJ. | 2 |
| 1594032 | WHEEL, IDLER (500/650 SKS Only) | ||
| 1594035 | Discontinued (500 Classic Only) | ||
| 1594038 | Discontinued (500 Only) | ||
| 1594039 | WHEEL, IDLER (400, 650 Only) | ||
| 1540552 | SHOCK,REAR TRACK | ||
| 1540539 | ARM, REAR TORQUE | ||
| 2 | 1543017 | TRACK CARRIER WHEEL | 2 |
| 5521089 | Discontinued | ||
| 7041119 | SPRING LH | ||
| 7041120 | SPRING,RH,BLK. | ||
| 2 | 7512659 | BOLT | 2 |
| 2 | 7555726 | WASHER | 2 |
| 2 | 5332730 | SPACER-CARR.WHEEL | 2 |
| 2 | 7542326 | NUT, SHOULDER | 2 |
| 1 | 5430671 | SPRING SHIELD | 1 |
| 7542403 | NUT LOCK | ||
| 3 | 7542302 | NUT LOCK | 3 |
| 7041140 | SPRING-SHOCK SUSP | ||
| 1 | 7041213 | COMPRESSION SPRING (500 Only) | 1 |
| 2 | 7512404 | BOLT | 2 |
| 5332787 | SPACER | ||
| 5430540 | ROLLER-SPRING* | ||
| 2 | 7553201 | WASHER,SPLIT LOCK | 2 |
| 5010212 | BUSHING,SUSPENSION | ||
| 2 | 7542122 | NYLOK NUT | 2 |
| 2 | 7512227 | SCREW | 2 |
| 2 | 5521127 | WHITE SLIDER (Red) (400 & 650 Only) | 2 |
| 2 | 5521146 | HI FAX-MED BLUE (Blue) (500 Only) | 2 |
| 5521320 | Discontinued (Black) (500 Classic Only) | ||
| 2 | 7515317 | BOLT | 2 |
| 7661609 | RIVET,(50) | ||
| 4 | 5410315 | BUMPER, RAIL | 4 |
| 4 | 7670009 | PALNUT(10) | 4 |
| 2 | 5430627 | COVER-RAIL TIP | 2 |
| 2 | 7621435 | RIVET(10) | 2 |
| 2 | 7555746 | WASHER | 2 |
| 2 | 5130530 | BLOCK-IDLER BOLT ADJ. | 2 |
| 7512247 | BOLT | ||
| 5410461 | TRACK, 133 (500/650 SKS Only) | ||
| 5410492 | TRACK (400 Only) | ||
| 5410504 | TRACK | ||
| 1 | 7515438 | BOLT | 1 |
| 6 | 5430789 | WHEEL INSERT | 6 |
| 7515432 | BOLT,NYLOC,BLACK | ||
| 7515493 | BOLT,NYLOC,BLACK (650 Only) | ||
| 2 | 5220442 | COVER,IDLER WHL. (500 Classic Only) | 2 |
| 7511853 | SCREW,WHL.COVER(SE)(10) (500 Classic Only) | ||
| 1 | 7041213 | COMPRESSION SPRING (500 Only} | 1 |
| 2 | 5521104 | WHITE SLIDER (Black) (500 Classic Only) | 2 |
| 1540553 | RAIL ASM, LH,SILVER (Incl. 64-66, 70-72) |
