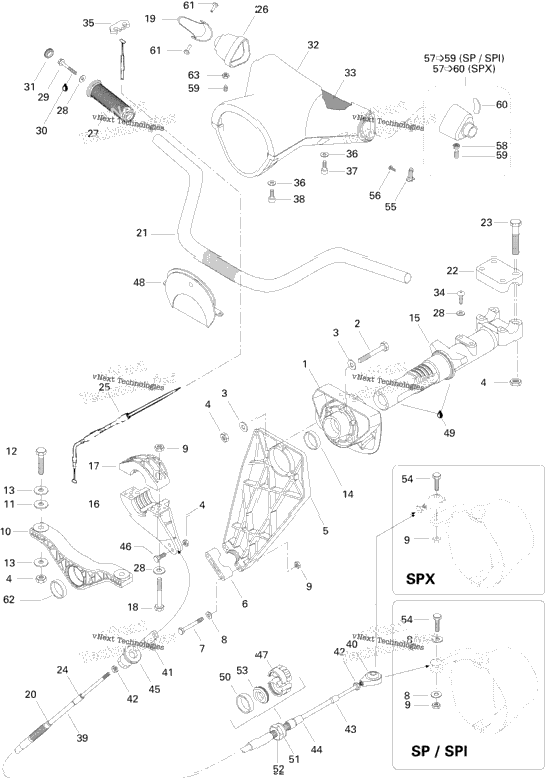

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 277000106 | Rear Support | ||
| 215686560 | Hex. Screw M8 x 65 | ||
| 6 | 213200002 | Flat Washer 8 mm | 6 |
| 9 | 212000002 | Elastic Stop Nut M8 | 9 |
| 277000161 | Cable Support | ||
| 1 | 277000162 | Support Thrust | 1 |
| 2 | 215665060 | Hex. Screw M6 x 50 | 2 |
| 4 | 213200001 | Flat Washer 6 mm | 4 |
| 6 | 212000001 | Elastic Stop Nut M6 | 6 |
| 277000291 | Front Support | ||
| 277000100 | Plastic Washer | ||
| 2 | 215684060 | Hexagonal Screw M8 x 40 | 2 |
| 4 | 213200011 | Flat Washer 8 mm | 4 |
| 293900008 | Spherical Cushion | ||
| 277000375400 | Steering Stem | ||
| 277000165 | Steering Stem Arm | ||
| 277000510 | THRUST ARM | ||
| 2 | 207163060 | Hex. Screw M6 X 30 | 2 |
| 277000214 | Throttle Handle | ||
| 277000277 | Large Boot | ||
| 277000305 | Handle bar | ||
| 277000142 | STEERING CLAMP | ||
| 4 | 215685060 | Hex. Screw M8 x 50 | 4 |
| 1 | 277000278 | SMALL BOOT | 1 |
| 277000252 | Throttle Cable | ||
| 277000285 | Throttle Handle Housing | ||
| 1 | 295500111 | Handle Grip Kit (Green) Includes 28,29,31 | 1 |
| 6 | 213200007 | Washer 6 mm | 6 |
| 2 | 211000031 | Hex. Screw M6 x 45 | 2 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 2 | 277000204 | Grip Cap (Green) | 2 |
| 277000257 | Steering Cover (B. Violet) | ||
| 277000187 | Foam (Top) | ||
| 2 | 211000036 | HEX. FLANGED SCREW 1/4-20 X 1/2 | 2 |
| 1 | 277000279 | TAB LOCK | 1 |
| 4 | 213200004 | Flat Washer 5 mm | 4 |
| 2 | 211000021 | PHILLIPS SCREW #10 X 7/8 | 2 |
| 211000037 | Phillips Screw 10-14 X 7/8” | ||
| 277000289 | STEERING CABLE | ||
| 1 | 277000153 | BALL JOINT | 1 |
| 277000174 | Rotule | ||
| 2 | 212100005 | Hex. Nut | 2 |
| 277000038 | Small Boot | ||
| 1 | 277000039 | LARGE BOOT | 1 |
| 1 | 277000167 | KNOB ADJUSTER | 1 |
| 1 | 211000022 | HEX. SPECIAL SCREW M6 X 25 | 1 |
| 277000168 | Half-Ring | ||
| 277000258 | Plate (Violet) | ||
| 293550010 | Synthetic Grease, 400 G | ||
| 211100010 | Retaining Ring | ||
| 1 | 211200006 | FLAT WASHER, STAINLESS | 1 |
| 211100011 | Hex. Jam Nut 1/2-20 | ||
| 211100009 | RUBBER WASHER | ||
| 1 | 215664060 | Hex. Screw M6 x 40 | 1 |
| 277000219 | Retainer Plate | ||
| 1 | 211000032 | Tapping Screw | 1 |
| 277000036 | LH HANDLE HOUSING ASS'Y Includes 57 to 59 | ||
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 206361260 | SCREW-SET SOCKET DIN.914A2 | ||
| XXX | Not Available As Spare Parts | ||
| 2 | 277000381 | PIN | 2 |
| 293900009 | Spherical Cushion |
