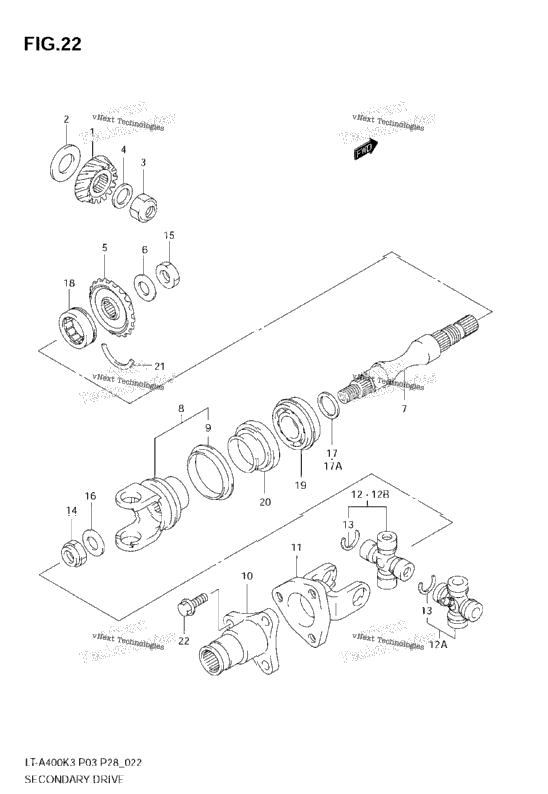

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 24911-38F00 | GEAR, SEC DRIVE BEVEL NT:17 | ||
| 1 | 24935-19810 | SHIM SET, SEC DRIVE BEVEL GR MODEL K3/K4/K5 T:0.25/0.30/0.35/0.90/1.00/ 1.05/1.10/1.15 | 1 |
| 1 | 24935-03811 | SHIM SET,SEC DRIVE BEVEL MODEL K6/K7 T:0.25/0.30/0.35/0.55/0.58/ 0.60/0.63/0.65/0.68/0.70/ 0.73/0.75/0.78/0.80/0.83/ 0.85/0.88/0.90/0.93/0.95/ 0.98/1.00/1.03/1.05/1.08/ 1.10/1.13/1.15/1.18/1.20/ 1.23/1.25/1.28/1.30 | 1 |
| 1 | 09140-20012 | NUT, SEC DRIVE BEVEL GR | 1 |
| 1 | 09181-20223 | WASHER, SEC DRIVE BEVEL GR 20X32X1 | 1 |
| 24921-38F00 | GEAR, SEC DRIVEN BEVEL | ||
| 1 | 08211-22365 | WASHER, SEC DRIVEN GEAR | 1 |
| 24971-38F00 | SHAFT, SEC DRIVEN OUTPUT RR | ||
| 1 | 27130-03G00 | YOKE, RR DRIVE OUTPUT Includes Item(s) 9 | 1 |
| 1 | 27592-38F00 | PLATE, OUTPUT | 1 |
| 1 | 27150-38F00 | SHAFT, PROPELLER RR | 1 |
| 1 | 27161-38F20 | YOKE, PROP SHAFT JOINT RR MODEL K3/K4/K5 | 1 |
| 1 | 27161-38F11 | YOKE, PROP SHAFT JOINT RR MODEL K6/K7 | 1 |
| 1 | 27200-19810 | JOINT SET, UNIVERSAL MODEL K3 | 1 |
| 1 | 27200-38810 | JOINT SET, UNIVERSAL MODEL K4 | 1 |
| 1 | 27200-19810 | JOINT SET, UNIVERSAL MODEL K5/K6/K7; Includes Item(s) 13 | 1 |
| 4 | 09380-20016 | CIRCLIP | 4 |
| 1 | 09159-16003 | NUT, REAR DRIVE OUTPUT YOKE | 1 |
| 1 | 09159-22005 | NUT, SEC DRIVEN GEAR | 1 |
| 1 | 09160-16026 | WASHER, REAR OUTPUT YOKE 16X30X3 | 1 |
| 1 | 09181-25051 | SHIM, SEC DRIVEN 25X34X0.6,MODEL K3/K4/K5 | 1 |
| 1 | 09181-25052 | SHIM, SEC DRIVEN 25X34X0.65,MODEL K3/K4/K5 | 1 |
| 1 | 09181-25053 | SHIM, SEC DRIVEN 25X34X0.70,MODEL K3/K4/K5 | 1 |
| 1 | 09181-25054 | SHIM, SEC DRIVEN 25X34X0.75,MODEL K3/K4/K5 | 1 |
| 1 | 09181-25055 | SHIM, SEC DRIVEN 25X34X0.80,MODEL K3/K4/K5 | 1 |
| 1 | 09181-25056 | SHIM, SEC DRIVEN 25X34X0.85,MODEL K3/K4/K5 | 1 |
| 1 | 09181-25057 | SHIM, SEC DRIVEN 25X34X0.90,MODEL K3/K4/K5 | 1 |
| 1 | 09181-25058 | SHIM, SEC DRIVEN 25X34X0.95,MODEL K3/K4/K5 | 1 |
| 1 | 09181-25059 | SHIM, SEC DRIVEN 25X34X1.00,MODEL K3/K4/K5 | 1 |
| 1 | 09181-25060 | SHIM, SEC DRIVEN 25X34X1.05,MODEL K3/K4/K5 | 1 |
| 1 | 09181-25061 | SHIM, SEC DRIVEN 25X34X1.10,MODEL K3/K4/K5 | 1 |
| 1 | 09181-25062 | SHIM, SEC DRIVEN 25X34X1.15,MODEL K3/K4/K5 | 1 |
| 1 | 09181-25063 | SHIM, SEC DRIVEN 25X34X1.20,MODEL K3/K4/K5 | 1 |
| 1 | 24945-03811 | SHIM SET,SEC DRIVEN BEVEL MODEL K6/K7 T:0.55/0.58/0.60/0.63/0.65/0.68 /0.70/0.73/0.75/0.78/0.80/0.83 /0.85/0.88/0.90/0.93/0.95/0.98 /1.00/1.03/1.05/1.08/1.10/1.13 /1.15/1.18/1.20/1.23/1.25/1.28 /1.30/1.33/1.35/1.38/1.40 | 1 |
| 1 | 09263-30050 | BRG, SEC DRIVEN GEAR, M 30X50X17 | 1 |
| 1 | 09267-25014 | BRG, SEC DRIVEN OUTPUT SFT RR 25X52X20.6 | 1 |
| 1 | 09283-34008 | OIL SEAL, DRIVEN SFT, RR 34X52X9 | 1 |
| 1 | 09390-50002 | RING, SEC DRIVEN BRG, M | 1 |
| 3 | 01550-10203 | BOLT, PROP SHAFT RR | 3 |
