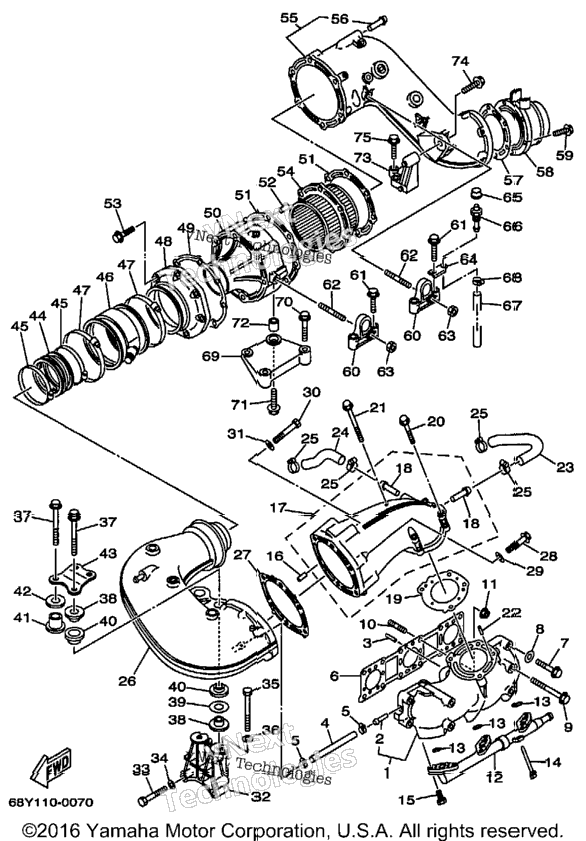

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 66V-14711-00-8P | Muffler 1 | ||
| 65U-14251-00-00 | . Nipple | ||
| 2 | 93606-12019-00 | Pin, Dowel | 2 |
| 90445-12M10-00 | Hose (L125) | ||
| 2 | 90460-11M17-00 | Clamp, Hose | 2 |
| 1 | 66V-14613-00-00 | .Gasket, Exhaust Pipe | 1 |
| 6 | 97013-10055-00 | Bolt | 6 |
| 6 | 92903-10600-00 | Washer, Plate | 6 |
| 90119-10M11-00 | Bolt, With Washer | ||
| 2 | 90116-10M68-00 | Bolt, Stud | 2 |
| 90179-10M36-00 | Nut | ||
| 66V-24377-00-00 | Pipe, Joint 2 | ||
| 3 | 93210-17MA4-00 | .O-Ring | 3 |
| 1 | 90465-13M36-00 | Clamp | 1 |
| 6 | 90109-06M99-00 | Bolt | 6 |
| 66V-14712-00-00 | Spring, Joint | ||
| 66E-51129-00-00 | Nipple | ||
| 1 | 66V-14739-00-00 | .Gasket, Muffler Damper 1 | 1 |
| 3 | 90119-10M20-00 | Bolt, With Washer | 3 |
| 1 | 90119-10M19-00 | Bolt, With Washer | 1 |
| 66V-12576-00-00 | Hose 1 | ||
| 1 | 66V-12577-00-00 | Hose 2 | 1 |
| 4 | 90450-22M14-00 | Hose Clamp Assy | 4 |
| 1 | 66V-14721-01-8P | Muffler 2 | 1 |
| 66V-14749-00-00 | .Gasket, Muffler Damper 2 | ||
| 97013-00650-00 | Bolt | ||
| 1 | 92903-10600-00 | Washer, Plate | 1 |
| 97013-10085-00 | Bolt | ||
| 5 | 92903-10600-00 | Washer, Plate | 5 |
| 1 | 66V-14771-01-94 | Stay, Muffler 1 | 1 |
| 97013-10060-00 | Bolt | ||
| 2 | 92903-10600-00 | Washer, Plate | 2 |
| 97013-10090-00 | Bolt | ||
| 2 | 90119-10M23-00 | Bolt, With Washer | 2 |
| 2 | 90387-12M05-00 | Collar | 2 |
| 1 | 90201-28008-00 | Washer, Plate | 1 |
| 2 | 90480-30M78-00 | Grommet | 2 |
| 66V-14779-00-00 | Collar | ||
| 66V-1477L-00-00 | Plate 2 | ||
| 1 | 66V-11152-00-00 | Bracket, Cylinder Head Cover | 1 |
| 1 | 66V-14625-00-00 | Joint, Exhaust 2 | 1 |
| 2 | 90460-90M19-00 | Clamp, Hose | 2 |
| 1 | 66V-14615-01-00 | Joint, Exhaust 1 | 1 |
| 2 | 90460-99M20-00 | Clamp, Hose | 2 |
| 66V-41113-01-00 | Outer Cover, Exhaust | ||
| 1 | 66V-41114-00-00 | .Gasket, Exhaust Outer Cover | 1 |
| 1 | 66V-41111-02-8P | Inner Cover, Exhaust | 1 |
| 2 | 66V-41124-00-00 | .Gasket, Exhaust Outer Cover | 2 |
| 2 | 93606-14081-00 | .Pin, Dowel | 2 |
| 6 | 90119-08M63-00 | Bolt, With Washer | 6 |
| 66V-14740-00-00 | Catalyst Assy | ||
| 66V-41123-00-8P | Outer Cover, Exhaust | ||
| 66E-51129-00-00 | . Nipple | ||
| 66V-14623-00-00 | Gasket, Exhaust Pipe | ||
| 66V-14784-01-8P | Pipe, Tail | ||
| 6 | 90105-08M22-00 | Bolt, Flange | 6 |
| 2 | 66E-14771-01-94 | Stay, Muffler 1 | 2 |
| 4 | 90119-10M18-00 | Bolt, With Washer | 4 |
| 2 | 90116-10M66-00 | Bolt, Stud | 2 |
| 2 | 90179-10M35-00 | Nut | 2 |
| 66V-1477K-00-00 | Plate 1 | ||
| 66345-11900-00 | Cap, Grease Nipple | ||
| 1 | 61L-5169A-00-00 | Nipple, Grease | 1 |
| 1 | 90445-09M33-00 | Hose (L580) | 1 |
| 1 | 90465-11M10-00 | Clamp | 1 |
| 1 | 66V-14782-00-94 | Stay 5 | 1 |
| 2 | 90105-10M87-00 | Bolt, Flange | 2 |
| 2 | 97513-10545-00 | Bolt, With Washer | 2 |
| 1 | 99590-14016-00 | Pin, Dowel | 1 |
| 66V-14791-01-8P | Stay, Muffler | ||
| 2 | 90119-10M00-00 | Bolt, With Washer | 2 |
| 1 | 90119-10M13-00 | Bolt, With Washer | 1 |
