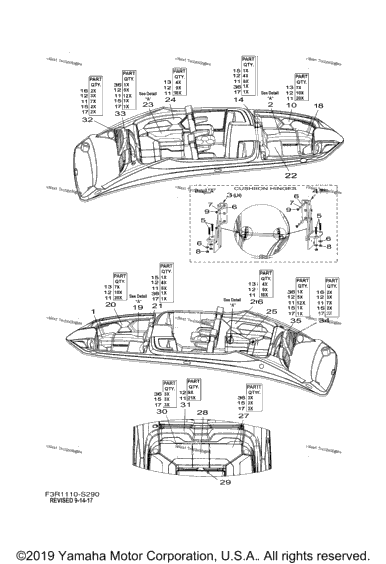

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | F3R-U35A6-00-00 | Cushion, Fore 6 UR FOR NC7 | 1 |
| 1 | F3R-U35A6-10-00 | Cushion, Fore 6 UR FOR PBC8 | 1 |
| 1 | F3R-U35A1-10-00 | Cushion, Fore 1 UR FOR PBC8 | 1 |
| 1 | F3R-U35A1-00-00 | Cushion, Fore 1 UR FOR NC7 | 1 |
| 1 | F3F-U3714-20-00 | Bracket,Seat UN | 1 |
| 1 | F3F-U3714-30-00 | Bracket,Seat UN | 1 |
| 1 | 90151-10S16-00 | Screw, Countersunk UN | 1 |
| 1 | 90201-10S00-00 | Washer, Plate UN | 1 |
| 1 | 90204-10S00-00 | Washer, Spring UN | 1 |
| 1 | 90185-10S00-00 | Nut, Self-Locking UN | 1 |
| 1 | 90170-10S00-00 | Nut UN | 1 |
| 1 | F3R-U35B1-10-00 | Backrest Front, Port UR FOR PBC8 | 1 |
| 1 | F3R-U35B1-00-00 | Backrest Front, Port UR FOR NC7 | 1 |
| 1 | 90167-08SA8-00 | Screw, Tapping UN | 1 |
| 1 | F1C-U5195-00-00 | Clip, 1 UN | 1 |
| 1 | 90169-08SA5-00 | Tapping Screw UN | 1 |
| 1 | F3R-U3796-10-00 | Back Rest 3 UR FOR PBC8 | 1 |
| 1 | F3R-U3796-00-00 | Back Rest 3 UR FOR NC7 | 1 |
| 1 | 90204-14S00-00 | Washer, Spring UN | 1 |
| 1 | 90209-14SA3-00 | Washer UN | 1 |
| 1 | 90170-14S00-00 | Nut UN | 1 |
| 1 | F3R-U35A5-00-00 | Cushion, Fore 5 UR FOR NC7 | 1 |
| 1 | F3R-U35A5-10-00 | Cushion, Fore 5 UR FOR PBC8 | 1 |
| 1 | F3R-U35A2-00-00 | Cushion Seat, Front Right UR FOR NC7 | 1 |
| 1 | F3R-U35A2-10-00 | Cushion Seat, Front Right UR FOR PBC8 | 1 |
| 1 | F3R-U35B2-00-00 | Backrest Front, Stbd UR FOR NC7 | 1 |
| 1 | F3R-U35B2-10-00 | Backrest Front, Stbd UR FOR PBC8 | 1 |
| 1 | F3R-U3798-10-00 | Back Rest, 4 UR FOR PBC8 | 1 |
| 1 | F3R-U3798-00-00 | Back Rest, 4 UR FOR NC7 | 1 |
| 2 | F3R-U372F-00-00 | Cushion 5 | 2 |
| 1 | F3R-U371D-00-00 | Cushion 1 UR FOR NC7 | 1 |
| 1 | F3R-U371D-10-00 | Cushion 1 UR FOR PBC8 | 1 |
| 1 | F3R-U3791-00-00 | Back Rest 1 UR FOR NC7 | 1 |
| 1 | F3R-U3791-10-00 | Back Rest 1 UR FOR PBC8 | 1 |
| 1 | F3R-U371E-00-00 | Cushion 2 UR FOR NC7 | 1 |
| 1 | F3R-U371E-10-00 | Cushion 2 UR FOR PBC8 | 1 |
| 1 | F3R-U3795-00-00 | Backrest 2 UR FOR NC7 | 1 |
| 1 | F3R-U3795-10-00 | Backrest 2 UR FOR PBC8 | 1 |
| 1 | F3R-U372D-10-00 | Cushion, 3 UR FOR PBC8 | 1 |
| 1 | F3R-U372D-00-00 | Cushion, 3 UR FOR NC7 | 1 |
| 1 | F3R-U3724-00-00 | Cushion Seat, Rear UR FOR NC7 | 1 |
| 1 | F3R-U3724-10-00 | Cushion Seat, Rear UR FOR PBC8 | 1 |
| 1 | F1C-U5192-00-00 | .Snap | 1 |
| 1 | F3R-U372E-10-00 | Cushion 4 UR FOR PBC8 | 1 |
| 1 | F3R-U372E-00-00 | Cushion 4 UR FOR NC7 | 1 |
| 1 | F3R-U3766-00-00 | Backrest 1 UR FOR NC7 | 1 |
| 1 | F3R-U3766-10-00 | Backrest 1 UR FOR PBC8 | 1 |
| F3R-U592C-20-00 | Pad 1 UR FOR PBC8 | ||
| 1 | F3R-U592C-00-00 | Pad 1 UR FOR NC7 | 1 |
| F3R-U521C-10-00 | Pad 1 UR FOR PBC8 | ||
| 1 | F3R-U521C-00-00 | Pad 1 UR FOR NC7 | 1 |
| F3R-U592C-30-00 | Pad 1 UR FOR PBC8 | ||
| 1 | F3R-U592C-10-00 | Pad 1 UR FOR NC7 | 1 |
| 1 | F3R-U521D-00-00 | Pad 2 UR FOR NC7 | 1 |
| F3R-U521D-10-00 | Pad 2 UR FOR PBC8 | ||
| 1 | 90209-14SA2-00 | Washer UN | 1 |
