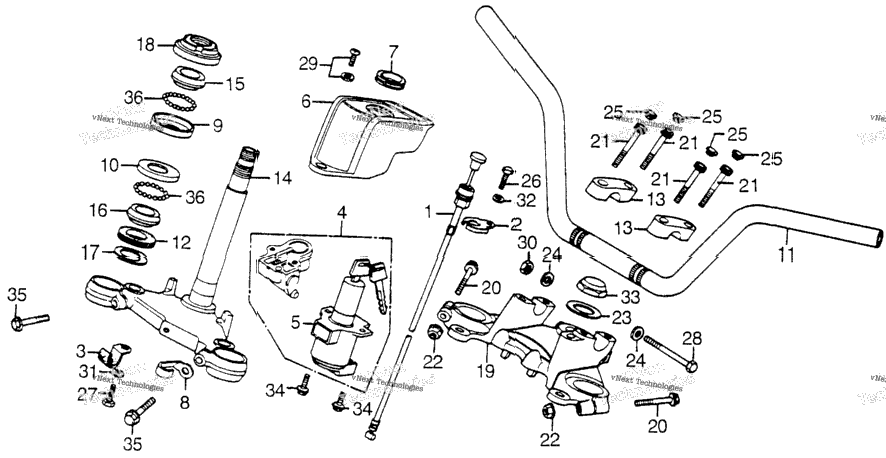

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 17950-404-670 | CABLE, CHOKE | ||
| 17950-405-000 | CABLE, CHOKE | ||
| 17951-404-670 | STAY, CHOKE CABLE | ||
| 32123-390-000 | CLIP, WIRE HARNESS | ||
| 35010-393-770 | LOCK SET Use from Frame SN 7110052 | ||
| 35010-393-771 | LOCK SET Use from Frame SN 7110052 | ||
| 35010-393-772 | LOCK SET Use from Frame SN 7110052 | ||
| 35010-410-000 | LOCK SET Use from Frame SN 7110052 | ||
| 35010-377-007 | LOCK SET (HONDALOCK) | ||
| 35010-377-007 | LOCK SET (HONDALOCK) Use up to Frame SN 7110051 | ||
| 35100-377-007 | SWITCH ASSY., COMBINATION (HONDALOCK) | ||
| 37622-393-770 | COVER, IGNITION SWITCH | ||
| 37623-393-770 | RUBBER, IGNITION SWITCH COVER | ||
| 45147-393-770 | CLIP, FR. BRAKE HOSE | ||
| 1 | 50301-268-000 | RACE, STEERING BALL (UPPER) | 1 |
| 1 | 50301-268-010 | RACE, STEERING TOP BALL | 1 |
| 1 | 50301-268-305 | RACE, STEERING BALL (UPPER) | 1 |
| 1 | 50302-268-000 | RACE, STEERING BALL (LOWER) | 1 |
| 1 | 50302-268-010 | RACE, STEERING BALL (LOWER) | 1 |
| 1 | 50302-268-305 | RACE, STEERING BALL (LOWER) | 1 |
| 53100-393-770 | HANDLEBAR | ||
| 1 | 53124-250-000 | DUST SEAL, STEERING HEAD | 1 |
| 1 | 53214-250-000 | DUST SEAL, STEERING HEAD | 1 |
| 2 | 53131-371-000 | HOLDER, HANDLEBAR (UPPER) | 2 |
| 53200-392-000ZA | STEM, STEERING *NH1* (BLACK) | ||
| 1 | 53211-268-000 | RACE, STEERING CONE (UPPER) | 1 |
| 1 | 53211-268-010 | RACE, STEERING TOP CONE | 1 |
| 1 | 53211-268-305 | RACE, STEERING CONE (UPPER) | 1 |
| 1 | 53212-250-000 | RACE, STEERING CONE (LOWER) | 1 |
| 1 | 53212-250-010 | RACE, STEERING CONE (LOWER) | 1 |
| 1 | 53212-250-305 | RACE, STEERING CONE (LOWER) | 1 |
| 1 | 53215-250-000 | WASHER, STEERING HEAD DUST SEAL | 1 |
| 53220-286-000 | THREAD, STEERING HEAD (UPPER) | ||
| 53230-405-000 | BRIDGE, FORK TOP | ||
| 2 | 90155-369-000 | BOLT, FLANGE (7X54) | 2 |
| 4 | 90185-371-000 | BOLT, HEX. SOCKET (8X32) | 4 |
| 2 | 90355-369-000 | NUT, FLANGE (7MM) | 2 |
| 1 | 90503-283-000 | WASHER, STEERING STEM | 1 |
| 2 | 90518-921-000 | WASHER, PLAIN (8MM) | 2 |
| 2 | 90518-931-000 | WASHER, SPECIAL (8MM) | 2 |
| 2 | 90555-283-000 | WASHER, SPECIAL (8MM) | 2 |
| 4 | 91456-371-770 | CAP, SOCKET BOLT | 4 |
| 1 | 92000-08016-0B | BOLT, HEX. (8X16) | 1 |
| 1 | 92101-08016-0B | BOLT, HEX. (8X16) | 1 |
| 1 | 92000-08020-0A | BOLT, HEX. (8X20) | 1 |
| 1 | 92101-08020-0A | BOLT, HEX. (8X20) | 1 |
| 93000-08074-0B | BOLT, HEX. (8X74) | ||
| 1 | 93891-06016-07 | SCREW-WASHER (6X16) | 1 |
| 1 | 94001-08020-0S | NUT, HEX. (8MM) | 1 |
| 1 | 94102-08000 | WASHER, PLAIN (8MM) | 1 |
| 1 | 94102-08200 | WASHER, FLAT (8MM) | 1 |
| 1 | 90304-415-000 | NUT, STEERING STEM | 1 |
| 1 | 95020-11300 | NUT, STEERING STEM | 1 |
| 2 | 95700-06016-00 | BOLT, FLANGE (6X16) | 2 |
| 2 | 95701-06016-00 | BOLT, FLANGE (6X16) | 2 |
| 2 | 95700-10040-00 | BOLT, FLANGE (10X40) | 2 |
| 2 | 95701-10040-00 | BOLT, FLANGE (10X40) | 2 |
| 37 | 96211-08000 | BALL, STEEL (#8) (1/4) | 37 |
