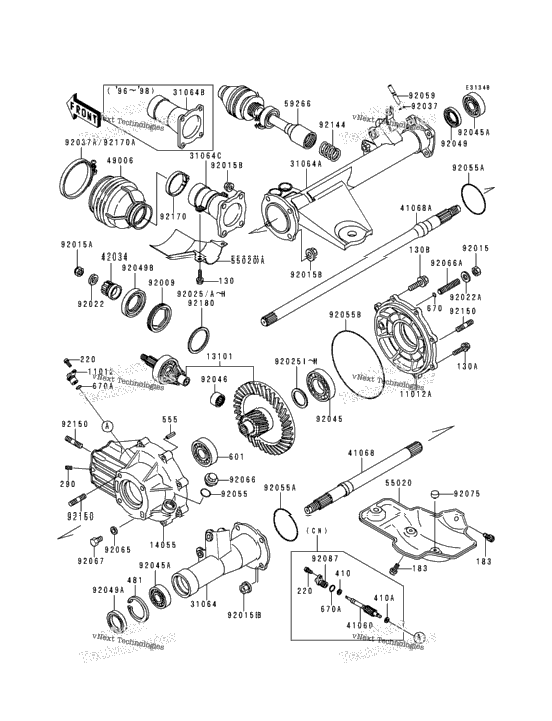

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 11012-1650 | CAP,METER GEAR [US] | 1 |
| 1 | 11012-1651 | CAP,GEAR CASE | 1 |
| 13101-5084 | GEAR-ASSY-BEVEL | ||
| 1 | 14055-1089 | CASE-GEAR,RR | 1 |
| 1 | 31064-1098 | PIPE-COMP,LH | 1 |
| 1 | 31064-1099 | PIPE-COMP,RH | 1 |
| 31064-1128 | PIPE-COMP,DRIVE SHAFT | ||
| 1 | 41060-1126 | GEAR-METER SCREW [CN] | 1 |
| 1 | 41068-1347 | AXLE,LH | 1 |
| 1 | 41068-1348 | AXLE,RH | 1 |
| 42034-1104 | COUPLING | ||
| 1 | 49006-1237 | BOOT,DRIVE SHAFT | 1 |
| 1 | 55020-1306 | GUARD,ENGINE | 1 |
| 59266-1089 | JOINT-BALL | ||
| 92009-1528 | SCREW | ||
| 1 | 92015-006 | NUT 12MM | 1 |
| 1 | 92015-1182 | NUT,12MM | 1 |
| 12 | 92015-1335 | NUT,FLANGED,10MM | 12 |
| 1 | 92022-1293 | WASHER,12X3X25X3.2 | 1 |
| 1 | 92022-1538 | WASHER,12MM | 1 |
| 1 | 92025-1669 | SHIM,52.5X61.5X0.15 | 1 |
| 1 | 92025-1670 | SHIM,52.5X61.5X0.18 | 1 |
| 1 | 92025-1671 | SHIM,52.5X61.5X0.8 | 1 |
| 1 | 92025-1672 | SHIM,52.5X61.5X0.9 | 1 |
| 1 | 92025-1673 | SHIM,52.5X61.5X1.0 | 1 |
| 1 | 92025-1674 | SHIM,52.5X61.5X1.1 | 1 |
| 1 | 92025-1675 | SHIM,52.5X61.5X1.2 | 1 |
| 1 | 92025-1676 | SHIM,52.5X61.5X1.3 | 1 |
| 1 | 92025-1677 | SHIM,52.5X61.5X1.4 | 1 |
| 1 | 92025-1849 | SHIM,35.3X46X1.00 | 1 |
| 1 | 92025-1850 | SHIM,35.3X46X0.10 | 1 |
| 1 | 92025-1851 | SHIM,35.3X46X0.15 | 1 |
| 1 | 92025-1856 | SHIM,35.3X46X0.50 | 1 |
| 1 | 92025-1857 | SHIM,35.3X46X0.80 | 1 |
| 1 | 92037-147 | CLAMP,TUBE | 1 |
| 6 | 130P0830 | BOLT-FLANGED,8X30 | 6 |
| 2 | 130P1035 | BOLT-FLANGED | 2 |
| 3 | 183H0814 | BOLT-UPSET-WS-SMALL | 3 |
| 1 | 220X0614 | SCREW-PAN-CROS | 1 |
| 1 | 290Q0612 | SCREW-SET-SOCKET | 1 |
| 1 | 410B0500 | WASHER PLAIN 5MM [CN] | 1 |
| 1 | 410B0600 | WASHER-PLAIN-SMALL,6MM [CN] | 1 |
| 1 | 481J5200 | CIRCLIP-TYPE-C,52MM | 1 |
| 1 | 555A0422 | PIN-SPRING | 1 |
| 1 | 601B6007 | BEARING-BALL,#6007C3 | 1 |
| 1 | 670B1509 | O RING,9MM | 1 |
| 1 | 670B2012 | O RING,12MM | 1 |
| 1 | 92037-1654 | CLAMP [US] | 1 |
| 1 | 92045-1110 | BEARING-BALL | 1 |
| 2 | 92045-1229 | BEARING-BALL | 2 |
| 1 | 92046-1183 | BEARING-NEEDLE,NK20/1 | 1 |
| 1 | 92049-1236 | SEAL-OIL | 1 |
| 1 | 92049-1287 | SEAL-OIL | 1 |
| 1 | 92049-1310 | SEAL-OIL,TC406510 | 1 |
| 1 | 92055-1136 | RING-O,25.7X2.4 | 1 |
| 2 | 92055-1207 | RING-O | 2 |
| 1 | 92055-1411 | RING-O,164.1X2.5 | 1 |
| 1 | 92059-1968 | TUBE 5X9X1240 | 1 |
| 1 | 92065-058 | GASKET,10.5X16X1 | 1 |
| 1 | 92066-1303 | PLUG | 1 |
| 1 | 92066-1305 | PLUG | 1 |
| 1 | 92067-001 | PLUG,DRAIN,10X12 | 1 |
| 3 | 92075-021 | DAMPER RUBB OIL TANK | 3 |
| 1 | 92087-1057 | BUSHING-METER GEAR [CN] | 1 |
| 1 | 92144-1278 | SPRING | 1 |
| 12 | 92150-1197 | BOLT,10X22 | 12 |
| 1 | 92170-1674 | CLAMP | 1 |
| 1 | 92170-1676 | CLAMP [CN] | 1 |
| 1 | 92180-1115 | SHIM,52.5X61.5X0.10 | 1 |
