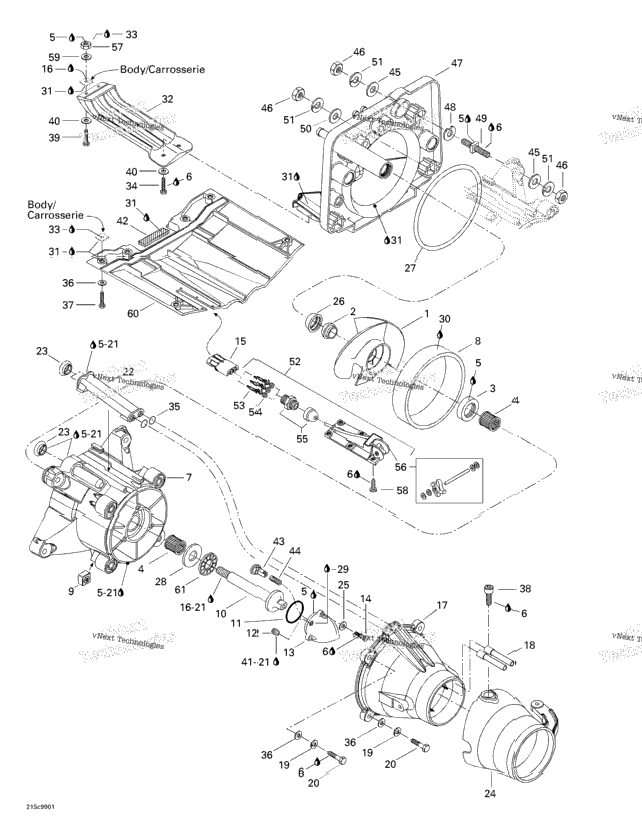

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 271000920 | Impeller Ass’Y | 1 |
| 271000931 | Stainless Steel Impeller Ass'ym (H.A.) | ||
| 1 | 271000516 | Impeller Boot | 1 |
| 1 | 293200025 | Double Lip Seal | 1 |
| 2 | 293350017 | Needle Bearing | 2 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 271000943 | Impeller Housing Includes 7 - 9. | ||
| 1 | 271000653 | Wear Ring | 1 |
| 4 | 211100033 | Square Nut M8 | 4 |
| 1 | 271000965 | Impeller Shaft | 1 |
| 1 | 293300011 | O-Ring | 1 |
| 1 | 211500001 | Pipe Plug Socket Head 1/8-27 Npt | 1 |
| 271000971 | IMPELLER COVER | ||
| 3 | 205062560 | Socket Head Screw M6 X 25 | 3 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 271000994 | Venturi Ass'y Includes 17 - 18. | ||
| 2 | 271000338 | Siphon Tube | 2 |
| 4 | 234181601 | Lock Washer 8 mm, Stainless | 4 |
| 4 | 207084560 | Hex. Screw M8 X 45 | 4 |
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 1 | 271000785 | Water Outlet | 1 |
| 3 | 293250084 | Watertight Seal | 3 |
| 271000806 | Nozzle | ||
| 3 | 234061600 | Stainless, Flat Washer M6 | 3 |
| 1 | 271000517 | Impeller Ring | 1 |
| 1 | 293200051 | Neoprene Seal | 1 |
| 1 | 293350020 | THRUST WASHER | 1 |
| 293600011 | Redline Pump Oil, 75W90, 12 x 6 oz | ||
| 1 | 293800054 | Loctite 648, 50 ml | 1 |
| 1 | 293800053 | Sealant Right Stuff 26015, 7 oz | 1 |
| 271000790 | PUMP GRATE | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 2 | 207161660 | Hex. Screw M6 X 16 | 2 |
| 2 | 293300013 | O-Ring | 2 |
| 10 | 234081600 | Stainless, Flat Washer 8 mm | 10 |
| 6 | 207383060 | Hex. Screw M8 X 30, Scotch Grip | 6 |
| 2 | 211000127 | Socket Head Screw M8 X 10, Scotch Grip | 2 |
| 2 | 207163560 | Hex. Screw M6 X 35 | 2 |
| 4 | 234061600 | Stainless, Flat Washer M6 | 4 |
| 1 | 219704454 | Was 293800013 Loctite 56765 | 1 |
| 1 | 219704364 | Neoprene Seal (1PAC=3M) | 1 |
| 1 | 271000978 | PUSHER | 1 |
| 271000973 | SPRING | ||
| 6 | 234002600 | Flat Washer 10 mm, Stainless | 6 |
| 8 | 232001600 | HEX. NUT M10 | 8 |
| 271000954 | Pump Support | ||
| 1 | 272000053 | Shim, 0.3 mm | 1 |
| 4 | 271000693 | Stud | 4 |
| 2 | 234001600 | Flat Washer 10 mm, Stainless | 2 |
| 234001601 | Lock Washer 10 mm | ||
| 278000849 | Speed Sensor Includes 52 - 56. | ||
| 3 | 278000222 | Male Terminal | 3 |
| 3 | 278000218 | Wire Seal | 3 |
| 1 | 293710031 | ELECTRIC CONNECTION | 1 |
| 295500108 | Paddle Wheel Kit | ||
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 6 | 250000020 | Phillips Screw M5 X 10 | 6 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 271000955 | RIDING PLATE, BLACK | 1 |
| 1 | 293350022 | Thrust-Bearing | 1 |
