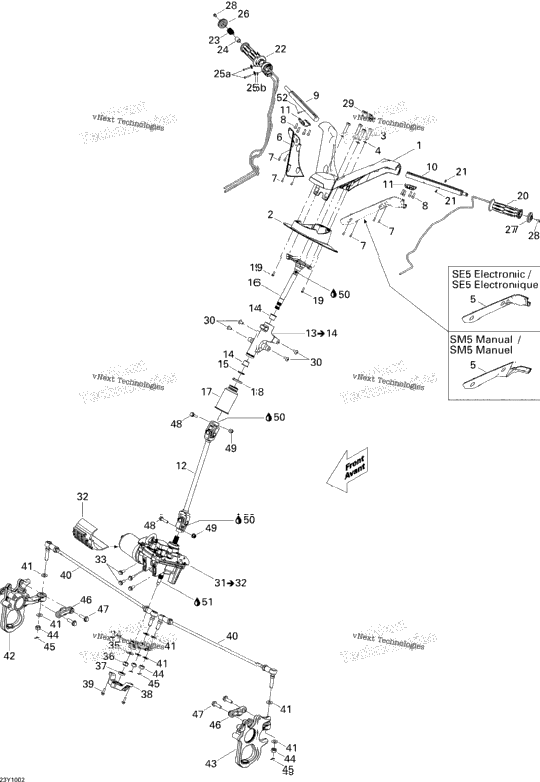

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 709400693 | HANDLEBAR, CRYSTAL SILVER | ||
| 1 | 709400579 | Handlebar Central Cover | 1 |
| 4 | 250000456 | Thin Socket Screw M10 X 40, Scotch Grip | 4 |
| 4 | 250200105 | Stainless Flat Washer, 10 mm | 4 |
| 1 | 709400577 | LH Steering Cover SE5 Electronic | 1 |
| 1 | 709400578 | RH Steering Cover | 1 |
| 8 | 205041094 | Socket Screw, M4 X 10 | 8 |
| 8 | 205061644 | SOCKET HEAD SCREW M6 X 16 | 8 |
| 709400629 | RH Handlebar Tube Produced Before February 01 2010 | ||
| 1 | 709400884 | RH Handlebar Tube Produced After February 01 2010 | 1 |
| 709400775 | LH Handlebar Tube | ||
| 2 | 709400631 | Handlebar Clamp | 2 |
| 1 | 709400658 | Lower Steering Column | 1 |
| 709400808 | STEERING COLUMN SUPPORT ASS'Y Includes 13 to 14 | ||
| XXXX | Not Available As Spare Part - Cushion | ||
| 1 | 709000089 | O-Ring | 1 |
| 1 | 709400774 | Upper Steering Column | 1 |
| 1 | 709400790 | Bellows | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 4 | 210251680 | Hex. Forming Screw M5 X 16 | 4 |
| 1 | 709400625 | Heating Handle Grip | 1 |
| 2 | 250000453 | Torx Cutting Screw, M4 X 10 | 2 |
| 1 | 709400624 | Heating Throttle Handle | 1 |
| 1 | 709400773 | Spring | 1 |
| 1 | 709400782 | Bushing | 1 |
| 2 | 205042594 | Socket Screw, M4 X 25 | 2 |
| 2 | 234040600 | Flat Washer 4 mm | 2 |
| 1 | 709400765 | RH Handlebar End Piece | 1 |
| 1 | 709400793 | Handlebar End Piece LH | 1 |
| 2 | 205061094 | Socket Screw, M6 X 10 Produced Before February 01 2010 | 2 |
| 2 | 250000495 | SOCKET SCREW, M6 X 10 SCOTCH GRIP Produced After February 01 2010 | 2 |
| 1 | 709400680 | CRYSTAL SILVER CAP | 1 |
| 4 | 250000198 | TORX TRUSS SCREW M8 X 16 | 4 |
| 1 | 709400770 | Power Steering Module Includes 31 to 32 | 1 |
| 1 | 219800191 | DPS HARDWARE KIT Not Shown | 1 |
| 709400551 | PROTECTOR | ||
| 4 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 4 |
| 1 | 709400469 | ARM | 1 |
| 1 | 250200113 | Flat Washer, 12 mm | 1 |
| 1 | 250000047 | Hex. Flange Elastic Nut M12 | 1 |
| 1 | 293200113 | Seal Ring | 1 |
| 1 | 709400455 | SENSOR SUPPORT | 1 |
| 2 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 2 |
| 2 | 709400727 | ROD_TIE ASSY | 2 |
| 8 | 250200086 | Flat Washer | 8 |
| 1 | 505071711 | KNUCKLE RH | 1 |
| 1 | 505071709 | KNUCKLE LH | 1 |
| 4 | 250100099 | Nut M12 | 4 |
| 4 | 250400034 | Cotter Pin | 4 |
| 2 | 706200528 | UPPER SUPPORT | 2 |
| 4 | 207503534 | SCREW-HEX.FLANGE DIN.6921 S.GRIP | 4 |
| 2 | 207583586 | Hex. Flange Screw M8 X 35, Scotch Grip Sub 250000986 | 2 |
| 2 | 233281416 | Hex. Elastic Flange Nut M8 | 2 |
| 293550010 | Synthetic Grease, 400 G | ||
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 1 | 250000494 | Socket Screw, M4 X 16 Scotch Grip Produced After February 01 2010 | 1 |
