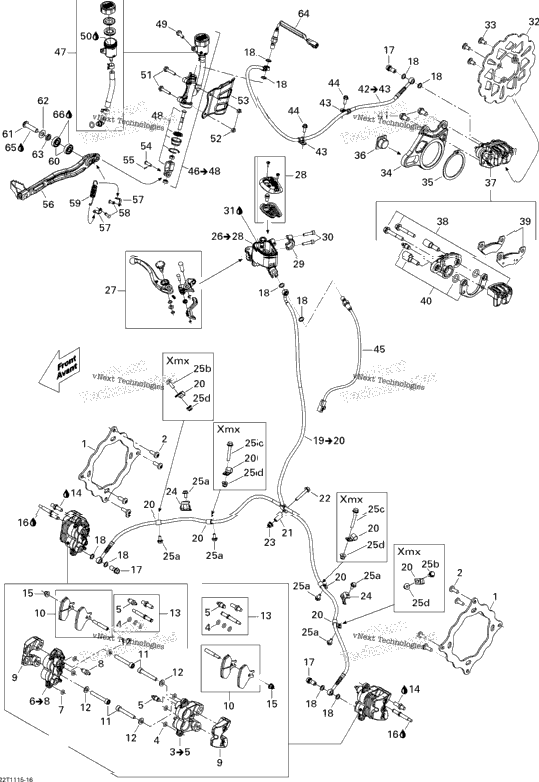

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 705600400 | FRONT BRAKE DISC | 2 |
| 8 | 250000117 | Torx Screw M8 X 20, Scotch Grip | 8 |
| 1 | 705600401 | LH FRONT CALIPER ASS'Y Includes 3 to 5 | 1 |
| 705600425 | PIN SLIDE KIT | ||
| 705600568 | Screw Bleeder | ||
| 1 | 705600404 | RH FRONT CALIPER ASS'Y Includes 6 to 8 | 1 |
| 705600560 | OUTER CALIPER | ||
| 4 | 705600402 | Front Brake Pad Kit | 4 |
| 205085534 | SOCKET HEAD SCREW M8 X 55 | ||
| 4 | 234081430 | Flat Washer M8 | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | 233261434 | Flange Elastic Nut M6 | 2 |
| 3 | 705600628 | Banjo Bolt | 3 |
| 10 | 705600310 | Copper Washer | 10 |
| 1 | 705600712 | Front Brake Line Includes 19 to 20 | 1 |
| 3 | 705600459 | Clamp | 3 |
| 1 | 512059812 | SPACER | 1 |
| 207664034 | Hex. Flange Screw M6 X 40 | ||
| 1 | 233261434 | Flange Elastic Nut M6 | 1 |
| 705600553 | Hose Holder | ||
| 6 | 207561234 | Hex. Flange Screw M6 X 12, Scotch Grip | 6 |
| 2 | 207661634 | Hex. Flange Screw M6 X 16 | 2 |
| 4 | 233261434 | Flange Elastic Nut M6 | 4 |
| 1 | 705600409 | CYLINDER MASTER ASS'Y Includes 26 to 28 | 1 |
| 1 | 705600491 | Brake Lever Kit | 1 |
| 1 | 705600493 | CAP SET | 1 |
| 1 | 705600619 | BRACKET KIT | 1 |
| 2 | 205062534 | SOCKET HEAD SCREW M6 X 25 | 2 |
| 293600062 | BRAKE FLUID, GTLMA, DOT 4, 12 X 354 ML | ||
| 1 | 705600410 | REAR DISC BRAKE | 1 |
| 3 | 250000330 | SHOULDER SCREW M8 | 3 |
| 1 | 705600411 | REAR CALIPER SUPPORT | 1 |
| 1 | 293370045 | SNAP RING | 1 |
| 1 | 705600412 | GUIDE REAR CALIPER | 1 |
| 1 | 705600713 | Rear Caliper Ass'y | 1 |
| 1 | 705600490 | ANVIL KIT | 1 |
| 1 | 705600711 | Brake Pad Kit | 1 |
| 1 | 705600714 | BRACKET KIT | 1 |
| 250000313 | HEX. FLANGED SCREW M8 X 20, SCOTCH GRIP | ||
| 1 | 705600414 | Rear Brake Hose Ass'y Includes 42 to 43 | 1 |
| 2 | 210261680 | Hex. Flange Screw M6 X 16 | 2 |
| 1 | 710000853 | Brake Switch | 1 |
| 1 | 705600738 | Rear Master Cylinder Includes 46 to 48 | 1 |
| 1 | 705600740 | SET TANK ASS'Y | 1 |
| 1 | 705600498 | ROD SET | 1 |
| 1 | 207662034 | Hex. Flange Screw M6 X 20 | 1 |
| 2 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 2 |
| 2 | 232561434 | Elastic Stop Nut M6 | 2 |
| 1 | 705600538 | Hose Protector | 1 |
| 1 | 250400031 | Clevis Pin | 1 |
| 1 | 250400032 | Cotter Pin | 1 |
| 1 | 705600534 | BRAKE PEDAL | 1 |
| 1 | 705600631 | FIXATION PLATE | 1 |
| 1 | 390407200 | Pop Rivet 3/16” | 1 |
| 705600635 | BRAKE PEDAL SPRING | ||
| 2 | 705600458 | Bearing | 2 |
| 205404036 | SOCKET HEAD SCREW M10 X 40 | ||
| 1 | 506152194 | Washer | 1 |
| 1 | 293900087 | Bushing | 1 |
| 710001377 | BRAKE SWITCH | ||
| 1 | 413703100 | Loctite 609, 10 ml | 1 |
