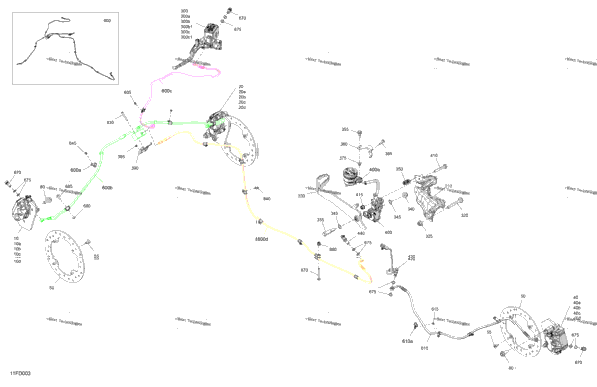

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705601808 | LH Front Brake Caliper Includes 10 to 10d | 1 |
| 1 | 705602070 | LH Pad Brake | 1 |
| 1 | 705601016 | Pin Set | 1 |
| 1 | 705601017 | Bleeding Screw | 1 |
| 1 | 705601018 | Retaining Spring | 1 |
| 1 | 705601809 | RH Front Brake Caliper Includes 20 to 20d | 1 |
| 1 | 705602071 | RH Brake Pad | 1 |
| 1 | 705601811 | RH Rear Brake Caliper Includes 40 to 40d | 1 |
| 3 | 705601997 | Disc Brake | 3 |
| 12 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 12 |
| 6 | 207502546 | Hex. Flange Screw M10 X 25 | 6 |
| 1 | 705602017 | LH Front Brake Master Cylinder Includes 300 to 300c1 | 1 |
| 1 | 705602075 | Master Cylinder Lever | 1 |
| 1 | 507032477 | Clamp And Screw Kit Includes 300b to 300b1 | 1 |
| 2 | 250000447 | Hex. Flange Screw M6 X 25 | 2 |
| 1 | 219800096 | Cap Set Includes 300c to 300c1 | 1 |
| 2 | 415129356 | Screw M4 X 20 | 2 |
| 1 | 705207200 | Master Cylinder Support | 1 |
| 3 | 207607046 | Hex. Flange Screw M10 X 70 | 3 |
| 3 | 233201436 | Hex. Flange Elastic Nut M10 | 3 |
| 1 | 705601683 | Brake Pedal | 1 |
| 1 | 250000513 | Shoulder Screw M10 | 1 |
| 1 | 233201436 | Hex. Flange Elastic Nut M10 | 1 |
| 2 | 293300144 | O-Ring | 2 |
| 1 | 705600792 | Brake Pedal Spring | 1 |
| 1 | 705602073 | Oil Tank Screw | 1 |
| 1 | 705208962 | Oil Tank Support | 1 |
| 1 | 250000722 | Torx Screw M6 X 20 | 1 |
| 1 | 233261466 | Hex. Flange Elastic Nut M6 | 1 |
| 1 | 705601816 | Hose Support | 1 |
| 2 | 293150293 | Pop Rivet 3/16 X ,425 | 2 |
| 1 | 705602296 | Rear Brake Master Cylinder Ass'y Includes 400 to 400a | 1 |
| 1 | 705602137 | Brake Fluid Reservoir | 1 |
| 2 | 207685044 | Hex. Flange Screw M8 X 50 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 1 | 705601250 | Brake Switch | 1 |
| 1 | 705601051 | Bleeding Screw | 1 |
| 705602051 | HOSE_MASTER CYLINDER F Includes 600 to 600d | ||
| 12 | 293650256 | Clamp | 12 |
| 1 | 705602046 | Front Master Cylinder Hose | 1 |
| 1 | 705602047 | Brake Hose | 1 |
| 1 | 705602048 | Brake Hose | 1 |
| 1 | 293150293 | Pop Rivet 3/16 X ,425 | 1 |
| 1 | 705601819 | RH Rear Caliper Hose Includes 610 to 610a | 1 |
| 3 | 293650256 | Clamp | 3 |
| 4 | 293150293 | Pop Rivet 3/16 X ,425 | 4 |
| 4 | 705600609 | Banjo Bolt (M10 x 1.25 thread) | 4 |
| 12 | 414920600 | Washer | 12 |
| 2 | 232561434 | Elastic Stop Nut M6 | 2 |
| 2 | 250000789 | Torx Truss M6X14 | 2 |
| 1 | 207053544 | Hex. Screw M5 X 35 | 1 |
| 6 | 293150293 | Pop Rivet 3/16 X ,425 | 6 |
| 1 | 250000317 | Torx Screw M6 X 50 | 1 |
