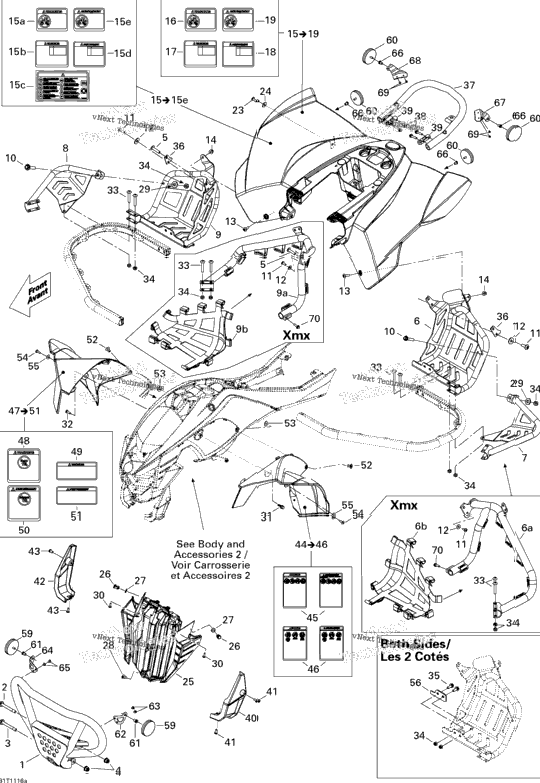

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705002767 | FRONT BUMPER | 1 |
| 2 | 250000302 | Hex Flange Screw M8 X 65, SCOTCH GRIP | 2 |
| 1 | 207587534 | Hex. Flange Screw M8 X 75, Scotch Grip | 1 |
| 2 | 233181434 | Hex. Flange Nut M8 | 2 |
| 1 | 250000256 | Torx Truss Screw M8 X 35 | 1 |
| 1 | 705003140 | LH PROTECTOR Xxc | 1 |
| 705003807 | LH PROTECTOR Xmx | ||
| 705003820 | LH NET Xmx | ||
| 1 | 705003237 | PROTECTOR | 1 |
| 1 | 705003238 | PROTECTOR | 1 |
| 1 | 705003141 | RH PROTECTOR Xxc | 1 |
| 705003817 | RH PROTECTOR Xmx | ||
| 705003821 | RH NET Xmx | ||
| 2 | 207584084 | FLANGED HEX. SCREW M8 X 40, SCOTCH GRIP | 2 |
| 2 | 250000129 | Torx Screw M6 X 16 | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 2 | 232561434 | Elastic Stop Nut M6 | 2 |
| 715000572 | REAR FENDER KIT, BLACK Includes 15 to 19, Xxc | ||
| 1 | 704900005 | WARNING DECAL, PASSENGER | 1 |
| 1 | 704901365 | WARNING DECAL, TIRE PRESSURE | 1 |
| 1 | 704901395 | Warning Decal Tire Pressure, French | 1 |
| 704900006 | Warning Decal, Passenger, French | ||
| 715000997 | Rear Fender Kit, Yellow Includes 15 to 15e, Xmx | ||
| 1 | 704902001 | WARNING DECAL, TIRE PRESSURE | 1 |
| 1 | 704901394 | International Decal, Multilingual | 1 |
| 704902002 | WARNING DECAL, PASSENGER, FRENCH | ||
| 1 | 250000223 | Torx Screw M6 X 16 | 1 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 705004009 | RADIATOR PROTECTOR ASS'Y | ||
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 2 | 506151252 | Washer | 2 |
| 1 | 250000129 | Torx Screw M6 X 16 | 1 |
| 2 | 224081201 | FLAT WASHER | 2 |
| 2 | 243141630 | Hex. Plastic Screw M4.8 X 16 | 2 |
| 1 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 1 |
| 8 | 250000298 | Torx Truss Screw M8 X 50 Xxc | 8 |
| 4 | 250000298 | Torx Truss Screw M8 X 50 Xmx | 4 |
| 14 | 232581434 | Elastic Stop Nut Xxc | 14 |
| 4 | 232581434 | Elastic Stop Nut Xmx | 4 |
| 4 | 207682034 | Hex. Flange Screw | 4 |
| 2 | 705003377 | SPACER | 2 |
| 1 | 705002769 | REAR BUMPER | 1 |
| 4 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 4 |
| 705002913 | CLAMP | ||
| 705002514 | LH RADIATOR MOULDING | ||
| 250000339 | SOCKET SCREW M6 X 12 | ||
| 1 | 705002515 | RH RADIATOR MOULDING | 1 |
| 1 | 715000576 | LH Front Fender Kit, Black Includes 44 to 46 | 1 |
| 704900002 | Warning Decal, Death And Injuries | ||
| 1 | 704901875 | Warning Decal, Death And Injuries | 1 |
| 715000569 | RH FRONT FENDER KIT, BLACK Includes 47 to 51 | ||
| 1 | 704900011 | Warning Decal, Under 16 Years Old | 1 |
| 704901133 | WARNING DECAL, PERFORMANCE | ||
| 1 | 704900012 | Warning Decal, Under 16 Years Old | 1 |
| 1 | 704901135 | Warning Decal, Performance, French | 1 |
| 2 | 293150123 | Pop Rivet 3/16" | 2 |
| 2 | 503191273 | Washer | 2 |
| 2 | 250000128 | Torx Truss Screw M6 X 20 | 2 |
| 705003378 | Spacer | ||
| 2 | 705002409 | Amber Reflector | 2 |
| 2 | 705002408 | Red Reflector | 2 |
| 2 | 293450268 | Insert M5 X 0.8 | 2 |
| 1 | 705002655 | LH REFLECTOR SUPPORT | 1 |
| 2 | 293150144 | Stavex Rivet | 2 |
| 705002656 | RH REFLECTOR SUPPORT | ||
| 705002911 | LH SUPPORT | ||
| 705002912 | RH SUPPORT | ||
| 4 | 293150144 | Stavex Rivet | 4 |
| 2 | 207662034 | Hex. Flange Screw M6 X 20 | 2 |
