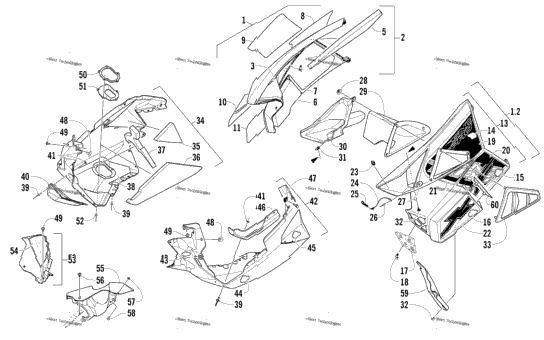

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 3718-908 | Panel, Side - Right - w/Decals - Orange (inc. 2-11) | ||
| 1 | 3718-856 | Panel, Side - w/o Decals - Right - Orange (inc. 3-7) | 1 |
| 1 | 0617-626 | Foam, Side Panel - Upper Front - Right | 1 |
| 1 | 6606-414 | Foil, Protective | 1 |
| 1 | 0617-628 | Foam, Side Panel - Upper Rear - Right | 1 |
| 1 | 0617-632 | Foam, Side Panel - Lower Front - Right | 1 |
| 1 | 6606-416 | Foil, Protective | 1 |
| 1 | 0621-696 | Decal, Side Panel - Upper - Right | 1 |
| 0621-704 | Decal, Side Panel - Lower Rear - Right | ||
| 0621-698 | Decal, Side Panel - Center - Right | ||
| 0621-706 | Decal, Side Panel - Lower Front - Right | ||
| 3718-909 | Panel, Side - Left - w/Decals - Orange (inc. 13-22) | ||
| 3718-867 | Panel, Side - w/o Decals - Left - Orange (inc. 14-18) | ||
| 1 | 0617-669 | Foam, Side Panel - Upper Rear - Left | 1 |
| 1 | 0617-635 | Foam, Side Panel - Lower Rear - Left | 1 |
| 1 | 0617-681 | Foam, Side Panel - Lower Front - Left | 1 |
| 1 | 2602-704 | Screen, Vent | 1 |
| 8 | 0623-269 | Clip, Retaining | 8 |
| 0621-693 | Decal, Side Panel - Upper - Left | ||
| 1 | 0621-705 | Decal, Side Panel - Lower Rear - Left | 1 |
| 0621-699 | Decal, Side Panel - Center - Left | ||
| 1 | 0621-707 | Decal, Side Panel - Lower Front - Left | 1 |
| 1 | 1623-637 | Clip, U-Nut | 1 |
| 2 | 0607-447 | Cable | 2 |
| 2 | 0605-283 | Clip, Hairpin | 2 |
| 2 | 8060-486 | Rivet | 2 |
| 2 | 8050-127 | Washer | 2 |
| 3 | 1623-469 | Nut, Stamped | 3 |
| 1 | 0708-596 | Duct, Heat | 1 |
| 2602-457 | Duct, Air - Clutch | ||
| 1 | 1623-030 | Clip, U-Nut | 1 |
| 3 | 0623-797 | Screw, Self-Tapping | 3 |
| 1 | 0608-648 | Vent, Heat Duct | 1 |
| 1 | 3718-422 | Plate, Skid - w/o Decals - Right - Black (inc. 35-41) | 1 |
| 1 | 0617-640 | Foam, Skid Plate - Upper Rear - Right | 1 |
| 1 | 0617-638 | Foam, Skid Plate - Center Front - Right | 1 |
| 1 | 0617-636 | Foam, Skid Plate - Upper Front - Right | 1 |
| 1 | 2612-850 | Foil, Protective | 1 |
| 26 | 8061-708 | Rivet | 26 |
| 1 | 2612-754 | Deflector, Heat | 1 |
| 8 | 0123-802 | Washer | 8 |
| 1 | 3718-789 | Plate, Skid - Left w/Foam - Black (inc. 43-46) | 1 |
| 1 | 0617-637 | Foam, Skid Plate - Upper Front - Left | 1 |
| 1 | 0617-639 | Foam, Skid Plate - Center Front - Left | 1 |
| 1 | 0617-641 | Foam, Skid Plate - Upper Rear - Left | 1 |
| 1 | 6606-613 | Panel, Reinforcement | 1 |
| 2 | 1623-748 | Clip, Retaining | 2 |
| 2 | 6606-592 | Pin, Retaining | 2 |
| 1623-129 | Screw, Self-Tapping | ||
| 1 | 2612-796 | Plate, Exhaust Outlet | 1 |
| 1 | 2612-799 | Seal, Exhaust Outlet | 1 |
| 6 | 8061-710 | Rivet | 6 |
| 1 | 3718-302 | Fascia, Front - Right - Black (inc. 54) | 1 |
| 1 | 6606-404 | Foil, Protective | 1 |
| 1 | 6606-351 | Fascia, Front - Left - Black | 1 |
| 2 | 0623-784 | Screw, Self-Tapping | 2 |
| 1 | 2623-001 | RETAINER,PUSHNUT - 3/16" STUD Optional | 1 |
| 1 | 1623-999 | Screw, Thumb Optional | 1 |
| 1 | 2602-711 | Deflector, Air | 1 |
| 1 | 2602-703 | Retainer, Air Deflector | 1 |
