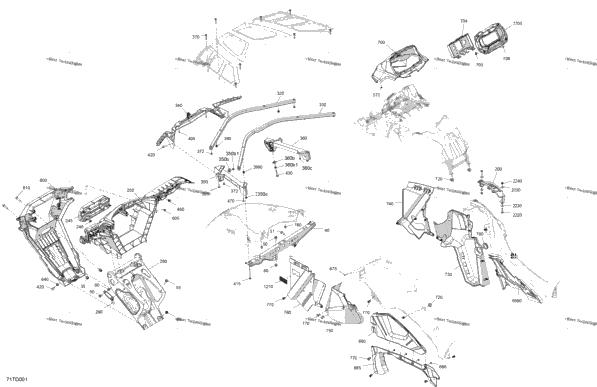

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 1 | 705006812 | Cargo Rack Center Support | 1 |
| 6 | 207682044 | Hex. Flange Screw M8 X 20 | 6 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 2 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip | 2 |
| 12 | 233281414 | Hex. Flange Elastic Nut M8 | 12 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 1 | 715003977 | Shifter Gate Kit Includes 200 to 200a | 1 |
| 2 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 2 |
| 4 | 224061201 | Flat Washer | 4 |
| 2 | 233261434 | Flange Elastic Nut M6 | 2 |
| 1 | 705016613 | Air Inlet Grille | 1 |
| 4 | 517306478 | Clip | 4 |
| 1 | 705016526 | Fascia | 1 |
| 1 | 705016893 | Front Bumper Support | 1 |
| 2 | 705004565 | Lower Fender Support | 2 |
| 1 | 705016640 | Sectional Bent Tube | 1 |
| 1 | 705016641 | Sectional Bent Tube | 1 |
| 1 | 705004523 | Lugage Rack Moulding | 1 |
| 1 | 705011553 | LH Support Luggage Rack Ass'y Includes 350 to 350c | 1 |
| 2 | 269501943 | Elastic Nut Housing M8 Includes 350b to 350b1 | 2 |
| 1 | 232581200 | Hex. Elastic Nut M8 Brass | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 705011555 | RH Support Luggage Rack Ass'y Includes 360 to 360c | 1 |
| 2 | 269501943 | Elastic Nut Housing M8 Includes 360b to 360b1 | 2 |
| 8 | 250000646 | Black, Torx Screw M6 X 35 | 8 |
| 6 | 233261434 | Flange Elastic Nut M6 | 6 |
| 4 | 250100199 | Insert Half Hex Body M6 x 1.0 | 4 |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 4 | 241140060 | Screw K40 X 10 | 4 |
| 2 | 207567044 | Hex. Flange Screw M6x70, Scotch Grip | 2 |
| 2 | 250000886 | Torx Screw M8 X 30 | 2 |
| 2 | 207683544 | Hex. Flange Screw M8 X 35 | 2 |
| 8 | 517302785 | Edge Clip | 8 |
| 2 | 250000101 | Plastite Screw Type K-40, M4 X 25 | 2 |
| 4 | 732610072 | Push Nut | 4 |
| 1 | 705016527 | Front Skid Plate | 1 |
| 4 | 250000725 | Screw M4 X 16 | 4 |
| 2 | 236282054 | Hex. Screw M8 X 20 | 2 |
| 2 | 705004497 | Ring | 2 |
| 2 | 250000723 | Phillips Screw K40 X 16 | 2 |
| 1 | 715007294 | Deflector Body Panel Kit | 1 |
| 1 | 705014061 | Deflector Body Panel | 1 |
| 1 | 705003444 | Engine Cover | 1 |
| 1 | 705013984 | Gauge Support | 1 |
| 4 | 250100143 | Extruded Panel Nut M4 X 0.7 | 4 |
| 1 | 705018350 | Int Gauge Support | 1 |
| 1 | 705015547 | Gauge Trim | 1 |
| 4 | 250000797 | Torx Head Screw M4 X 16 | 4 |
| 4 | 705003264 | Grommet | 4 |
| 1 | 705013925 | RH Wheel Arch Protector | 1 |
| 1 | 705017002 | RH Front Wheel Arch Protector | 1 |
| 1 | 705013924 | LH Wheel Arch Protector | 1 |
| 1 | 705017001 | LH Front Wheel Arch Protector | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 293250242 | Rubber Cover | 1 |
| 2 | 520002680 | Amber, Reflector | 2 |
