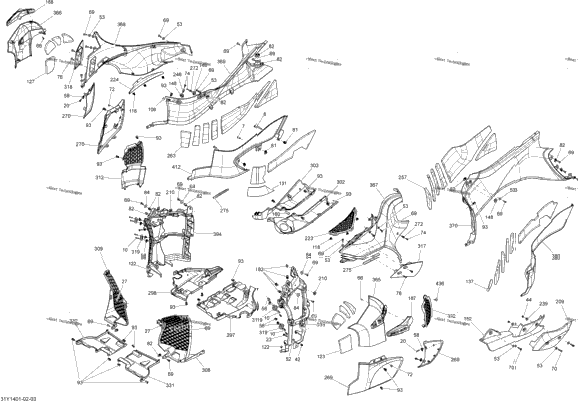

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 205482060 | Socket Head Screw M8 X 20 | 1 |
| 1 | 205484560 | Socket Screw M8 X 45 | 1 |
| 1 | 207152060 | Hex. Screw M5 X 20 | 1 |
| 1 | 207652044 | Hex.Flange Screw M5 X 20 | 1 |
| 2 | 207662544 | Hex. Flange Screw M6 X 25 | 2 |
| 1 | 210261680 | Hex. Flange Screw M6 X 16 | 1 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 233261494 | Hex. Flange Elastic Nut M6 | 1 |
| 1 | 234062410 | Flat Washer 6 mm | 1 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 1 | 250000079 | Panel Nut M5 X 0.8 Model-RT S | 1 |
| 1 | 250000294 | Torx Screw K40 X 16 | 1 |
| 1 | 250000350 | Torx Truss Screw M6 X 20 | 1 |
| 3 | 250000371 | Torx Screw M6 X 30 Stainless | 3 |
| 1 | 250000454 | Torx Screw M6 X 12 | 1 |
| 4 | 250000459 | Torx Screw, K50X16 | 4 |
| 1 | 250000488 | Torx Truss Screw M6 X 20 | 1 |
| 4 | 250100111 | Panel Nut M8 | 4 |
| 1 | 250100113 | Panel Nut, M6 X 1.0 Model-RT S | 1 |
| 4 | 250200029 | Washer M6 | 4 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 2 | 293830143 | Rubber Pad | 2 |
| 1 | 517302785 | Edge Clip | 1 |
| 4 | 518321954 | Panel Fastener | 4 |
| 518324751 | LH Side Panel Foam | ||
| 1 | 518324752 | RH Side Panel Foam | 1 |
| 1 | 518324756 | RH LOWER PANEL FOAM | 1 |
| 1 | 518327490 | LH Lower Panel Foam | 1 |
| 1 | 705000321 | Oval Washer | 1 |
| 1 | 705002092 | Lower Belt Guard | 1 |
| 3 | 219704364 | Neoprene Seal (1PAC=3M) | 3 |
| 1 | 705007441 | Platine Side Panel Cap Kit Model-RT S | 1 |
| 1 | 705007442 | Platine RH Panel Cap Model-RT S | 1 |
| 1 | 705003250 | Belt Guard Cap | 1 |
| 1 | 705003264 | Grommet | 1 |
| 1 | 705003385 | LH Upper Side Panel Grille | 1 |
| 1 | 705003386 | RH Upper Side Panel Grille | 1 |
| 2 | 705003696 | Adhesive Spacer | 2 |
| 2 | 705003746 | Angled Knob | 2 |
| 1 | 705003757 | LH Upper Lateral Panel Foam | 1 |
| 1 | 705003758 | RH Upper Lateral Panel Foam - Call Your Local BRP Dealership | 1 |
| 1 | 705003759 | LH Water Deflector Ass'y | 1 |
| 1 | 705003760 | RH Water Deflector Ass'y | 1 |
| 2 | 705003842 | Knob | 2 |
| 2 | 219704368 | Seal Tray 1000Mm Long | 2 |
| 1 | 705004610 | LH Deflector Pannel | 1 |
| 1 | 705004611 | RH Deflector Pannel | 1 |
| 1 | 705004631 | LH Tank Cover Ass'y | 1 |
| 1 | 705004632 | RH Tank Cover Ass'y | 1 |
| 1 | 705004789 | LH Radiatior Moulding | 1 |
| 1 | 705004790 | RH Radiatior Moulding | 1 |
| 1 | 705004803 | RH Side Grille | 1 |
| 1 | 705004924 | LH Lower Air Deflector | 1 |
| 1 | 705004925 | RH Lower Air Deflector | 1 |
| 2 | 705005055 | Grommet Ass'y | 2 |
| 1 | 705005438 | LH Skid Plate | 1 |
| 1 | 705005439 | RH Skid Plate | 1 |
| 705006311 | YELLOW LH LATERAL SIDE PANEL Model-Circuit Yellow Met | ||
| 705007595 | COGNAC LH LATERAL SIDE PANEL Model-Cognac | ||
| 1 | 705007593 | Timeless Black M LH Lateral Side Panel Model-Timeless Black Met | 1 |
| 1 | 705006158 | White LH Lateral Side Panel Model-Vegas White Pearl | 1 |
| 705006306 | YELLOW RH LATERAL SIDE PANEL Model-Circuit Yellow Met | ||
| 1 | 705007596 | Cognac RH Lateral Side Panel Model-Cognac | 1 |
| 1 | 705007594 | Timeless Black M RH Lateral Side Panel Model-Timeless Black Met | 1 |
| 1 | 705006157 | White RH Lateral Side Panel Model-Vegas White Pearl | 1 |
| 1 | 705006329 | YELLOW LH UPPER PANEL Model-Circuit Yellow Met | 1 |
| 1 | 705007601 | PANEL_BODY UP L B-367 Model-Cognac | 1 |
| 1 | 705007599 | TIMELESS BLACK MET LH UPPER PANEL Model-Timeless Black Met | 1 |
| 1 | 705006168 | White LH Upper Panel Model-Vegas White Pearl | 1 |
| 705006320 | YELLOW RH UPPER PANEL Model-Circuit Yellow Met | ||
| 1 | 705007602 | Cognac RH Upper Panel Model-Cognac | 1 |
| 1 | 705007600 | TIMELESS BLACK MET RH UPPER PANEL Model-Timeless Black Met | 1 |
| 1 | 705006167 | White RH Upper Panel Model-Vegas White Pearl | 1 |
| 1 | 705006340 | PANEL_BODY RH B-349 Model-Circuit Yellow Met | 1 |
| 1 | 705007608 | PANEL_BODY RH B-367 Model-Cognac | 1 |
| 1 | 705007606 | TIMELESS BLACK M RH UPPER LATERAL PANEL Model-Timeless Black Met | 1 |
| 1 | 705006177 | White RH Upper Lateral Panel Model-Vegas White Pearl | 1 |
| 1 | 705006341 | PANEL_BODY LH B-349 Model-Circuit Yellow Met | 1 |
| 1 | 705007607 | PANEL_BODY LH B-367 Model-Cognac | 1 |
| 1 | 705007605 | TIMELESS BLACK M LH UPPER LATERAL PANEL Model-Timeless Black Met | 1 |
| 1 | 705006178 | White LH Lateral Panel Model-Vegas White Pearl | 1 |
| 1 | 705006820 | LH Lower Pannel | 1 |
| 1 | 705007307 | LH Side Grille | 1 |
| 1 | 705007308 | LH Side Panel Support Ass'y | 1 |
| 1 | 705007309 | RH Side Panel Support Ass'y | 1 |
| 1 | 705007736 | RH Lower Pannel | 1 |
| 1 | 708000759 | Rubber Stopper | 1 |
