Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

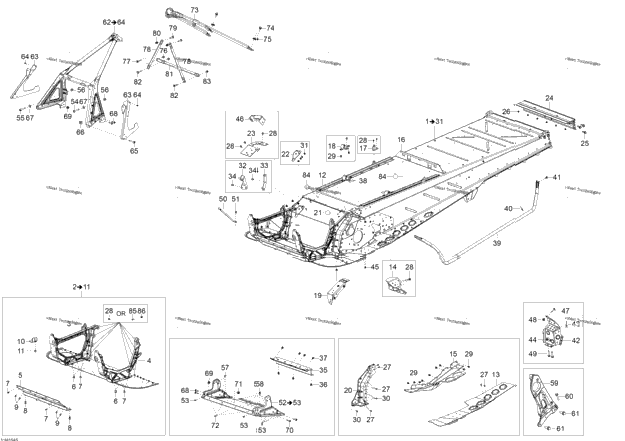

| 518328209 | FRAME XU 552 FC SC-5 RER Includes 1 To 31 | ||
| 518328189 | MODULE E Includes 2 To 11 | ||
| 1 | 518326795 | RH Member | 1 |
| 1 | 518325558 | LH Member | 1 |
| 1 | 518325818 | Front Member | 1 |
| 4 | 605636002 | Clinch Nut Hexsert M8 | 4 |
| 9 | 390909100 | Avex Rivet | 9 |
| 2 | 293150120 | Hemlock Rivet 6.5 mm | 2 |
| 4 | 293150119 | Hemlock Rivet, 6.5 mm | 4 |
| 518327219 | Muffler Support | ||
| 1 | 293150163 | Rivet Hucklok | 1 |
| 2 | 518326107 | Fastening rail | 2 |
| 518326895 | FOOTREST LH | ||
| 518326896 | FOOTREST RH | ||
| 1 | 605355235 | FASTENING BRACKET | 1 |
| XXXX | Not Available As Spare Part - LH Drive Axle Cover | ||
| XXXX | Not Available As Spare Part - RH Drive Axle Cover | ||
| 518325986 | BATTERY SUPPORT PLATE | ||
| 2 | 518327457 | SEAT BOX BRACKET | 2 |
| 1 | 518326109 | SUPPORT TUBE BRACKET LH | 1 |
| 1 | 518326110 | SUPPORT TUBE BRACKET RH | 1 |
| 1 | 518326430 | Clinch Nut plate | 1 |
| 1 | 518325524 | LH Frame Corner | 1 |
| 1 | 518328024 | RH Frame Corner | 1 |
| 1 | 518325560 | Adhesive Patch | 1 |
| 1 | 518326520 | RH Support | 1 |
| 1 | 518327877 | CHAIN CASE SUPPORT | 1 |
| 1 | 518327194 | Rear Profile | 1 |
| 6 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 6 |
| 6 | 293150174 | Hemlock Rivet, 6.4 mm | 6 |
| 1 | 390909100 | Avex Rivet | 1 |
| 1 | 390909200 | Avex Rivet | 1 |
| 1 | 293150119 | Hemlock Rivet, 6.5 mm | 1 |
| 1 | 293150183 | Rivet | 1 |
| 1 | 293150096 | Hemlock Rivet, 6.5 mm | 1 |
| 1 | 518328028 | CHAIN CASE COUNTER PLATE FRONT | 1 |
| 1 | 518328029 | CHAIN CASE COUNTER PLATE REAR | 1 |
| 1 | 390402200 | Pop Rivet 3/16" | 1 |
| 1 | 518326719 | Engine Support | 1 |
| 3 | 293150163 | Rivet Hucklok | 3 |
| 4 | 390909200 | Avex Rivet | 4 |
| 2 | 518326357 | RUBBER COVER | 2 |
| 1 | 518326963 | LH Footboard Support Tube | 1 |
| 1 | 518326964 | RH Footboard Support Tube | 1 |
| 2 | 207662056 | Hex. Flange Screw M6 x 20 | 2 |
| 1 | 518326671 | TOE HOOK LH | 1 |
| 518328103 | Toe Hook RH | ||
| 2 | 605636003 | Clinch Nut M6 Hexsert | 2 |
| 2 | 414644300 | Black, Dart | 2 |
| 1 | 518327878 | Fastening Bracket | 1 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 4 | 250000223 | Torx Screw M6 X 16 | 4 |
| 1 | 514054846 | Spring Bracket | 1 |
| 1 | 518326213 | S Module Includes 52 To 53 | 1 |
| 12 | 390909200 | Avex Rivet | 12 |
| 1 | 207662544 | Hex. Flange Screw M6 X 25 | 1 |
| 6 | 390909100 | Avex Rivet | 6 |
| 5 | 390909200 | Avex Rivet | 5 |
| 1 | 518328434 | Pulley Support | 1 |
| 1 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 1 |
| 2 | 207583086 | Hex. Flange Screw M8 X 30, Scotch Grip | 2 |
| 1 | 518327004 | Front Member Ass'y Includes 62 To 64 | 1 |
| 1 | 502007077 | LH Bumper Fastener | 1 |
| 1 | 502007078 | RH Bumper Fastener | 1 |
| 2 | 390909200 | Avex Rivet | 2 |
| 6 | 207662044 | Hex. Flange Screw M6 X 20 | 6 |
| 6 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 6 |
| 2 | 224061201 | Flat Washer | 2 |
| 8 | 207662044 | Hex. Flange Screw M6 X 20 | 8 |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 8 |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 518326103 | UPPER SUPPORT TUBE WELDED | ||
| XXXX | Not Available As Spare Part - Lock Washer | ||
| 1 | 207662556 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 2 | 518325114 | Upper Lateral Column Support | 2 |
| 1 | 518327876 | Upper Column | 1 |
| 2 | 207662556 | Hex. Flange Screw M6 X 25 | 2 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
