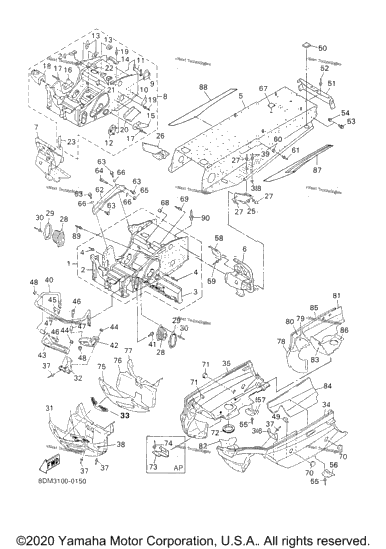

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 8DG-21940-08-00 | Front Frame Comp | ||
| 1 | 8CR-2191A-00-00 | . Bulkhead | 1 |
| 8DG-12440-00-00 | . Heat Exchanger Assy | ||
| 30 | 90267-48176-00 | . .Rivet, Blind (4.8X17 Yellow) UR UN | 30 |
| 50 | 90267-48177-00 | . .Rivet, Blind (4.8X14 Yellow) UR UN | 50 |
| 8CR-21950-06-00 | Rear Frame Comp | ||
| 8CR-21960-08-00 | Footrest Comp. 1 | ||
| 8CR-21970-08-00 | Footrest Comp. 2 | ||
| 8CR-W2195-03-00 | Frame Connection Kit | ||
| 2 | 8CR-21943-01-00 | . Bracket, Main Track 1 | 2 |
| 2 | 8CR-21953-00-00 | . Bracket, Main Track 2 | 2 |
| 1 | 8CR-2196F-00-00 | . Bracket 3 | 1 |
| 8CR-21920-00-00 | . Housing, Reinf Sub-Assy (L.H) | ||
| 3 | 8CR-21939-00-00 | . Bracket, Chain Housing | 3 |
| 2 | 8CR-21977-00-00 | . Clamp, Fuel Pipe | 2 |
| 1 | 8CR-21917-00-00 | . Panel, Sub Frame 6 | 1 |
| 1 | 8CR-21918-00-00 | . Panel, Sub-Frame 7 | 1 |
| 4 | 90267-48176-00 | . .Rivet, Blind (4.8X17 Yellow) | 4 |
| 1 | 8CR-2194J-00-00 | . Stay, Muffler | 1 |
| 50 | 90267-47186-00 | . Rivet, Blind (4.7X16.4 Black) UR UN | 50 |
| 10 | 90267-47197-00 | . .Rivet, Blind(4.7X19.5 Silver UR UN | 10 |
| 1 | 8CR-2198G-00-00 | . Cover 2 | 1 |
| 2 | 90461-05003-00 | . Clamp | 2 |
| 1 | 90461-06142-00 | . Clamp | 1 |
| 90462-05059-00 | . .Clamp | ||
| 1 | 90461-10148-00 | . Clamp | 1 |
| 8DF-21941-00-00 | Pipe, Pivot 1 | ||
| 1 | 8DF-21951-00-00 | Pipe, Pivot 2 | 1 |
| 16 | 90269-07080-00 | Rivet | 16 |
| 8CR-2198F-00-00 | Cover 1 | ||
| 2 | 8CR-2195E-00-00 | Plate, Steering Bracket 1 | 2 |
| 10 | 90267-48165-00 | Rivet, Blind | 10 |
| 8CR-21912-01-00 | Panel, Sub Frame 1 | ||
| 8CR-23788-11-00 | Plate, Back Up | ||
| 8CR-77128-00-00 | Stay 4 | ||
| 8CR-2196A-02-00 | Frame Under 1 | ||
| 8CR-2196E-02-00 | Frame, Under 2 | ||
| 8CR-21972-00-00 | Bracket, Guard Fitting | ||
| 39 | 90267-48141-00 | Rivet, Blind | 39 |
| 18 | 90201-05033-00 | Washer, Plate | 18 |
| 14 | 90267-47187-00 | Rivet, Blind (4.7X16.4 Black) | 14 |
| 1 | 8CR-77512-00-00 | Bumper, Front 2 | 1 |
| 4 | 95807-08020-00 | Bolt, Flange | 4 |
| 1 | 8CR-21949-10-00 | Bracket, Front | 1 |
| 8CR-21959-10-00 | Bracket, Front Bumper | ||
| 4 | 95607-08200-00 | .Nut, Self-Locking | 4 |
| 2 | 8CR-2196M-00-00 | Bracket, 5 | 2 |
| 4 | 95807-08040-00 | Bolt, Flange | 4 |
| 4 | 90387-0810F-00 | Collar | 4 |
| 4 | 95707-08500-00 | Nut, Flange | 4 |
| 3 | 90465-08146-00 | Clamp | 3 |
| 2 | 8CR-2198J-00-00 | Cover 3 | 2 |
| 8CR-21923-02-00 | Reineforcement, Frame Rear 1 | ||
| 7 | 90267-47186-00 | Rivet, Blind (4.7X16.4 Black) | 7 |
| 4 | 95027-08016-00 | Bolt, Flange | 4 |
| 8 | 90267-48141-00 | Rivet, Blind | 8 |
| 1 | 8CR-21978-00-00 | Protector, Frame (L.H) | 1 |
| 1 | 8CR-2197B-00-00 | Protector, Frame (R.H) | 1 |
| 8CR-21973-00-00 | Hook | ||
| 3 | 90267-48169-00 | .Rivet, Blind (4.8X14.1 Black) | 3 |
| 6 | 81K-2471F-00-00 | Button | 6 |
| 90267-40069-00 | Rivet, Blind | ||
| 8CR-21921-01-00 | Reineforcement, Frame Rear 1 | ||
| 6 | 90105-10617-00 | Bolt, Flange | 6 |
| 1 | 95827-10065-00 | Bolt, Flange | 1 |
| 1 | 95707-10500-00 | Nut, Flange | 1 |
| 3 | 92907-10200-00 | Washer, Plain | 3 |
| 90338-10004-00 | Plug | ||
| 3 | 90267-48177-00 | .Rivet, Blind (4.8X14 Yellow) | 3 |
| 3 | 90338-44093-00 | Plug | 3 |
| 3 | 90338-30256-00 | Plug | 3 |
| 1 | 8DF-21998-00-00 | Spacer | 1 |
| 1 | 8CS-2197C-00-00 | Protector, Frame 3 AP | 1 |
| 4 | 90267-48141-00 | Rivet, Blind AP | 4 |
| 8CR-77261-00-00 | Lining, Shroud 1 | ||
| 1 | 8CR-77262-00-00 | Lining, Shroud 2 | 1 |
| 8CR-77263-00-00 | Lining, Shroud 3 | ||
| 1 | 8CR-77264-00-00 | Lining, Shroud 4 | 1 |
| 8CR-77265-00-00 | Lining, Shroud 5 | ||
| 8CR-77266-00-00 | Lining, Shroud 6 | ||
| 1 | 8CR-77267-01-00 | Lining, Shroud 7 | 1 |
| 1 | 8CR-77268-00-00 | Lining, Shroud 8 | 1 |
| 8CR-77269-00-00 | Lining, Shroud 9 | ||
| 1 | 8CR-77271-00-00 | Damper, Noise 11 | 1 |
| 8CR-7717J-00-00 | Tape, 5 | ||
| 1 | 8CR-77165-00-00 | Trim 1 | 1 |
| 8CY-77351-00-00 | Emblem 1 | ||
| 8CY-77352-00-00 | Emblem 2 | ||
| 6 | 90267-48177-00 | .Rivet, Blind (4.8X14 Yellow) | 6 |
| 2 | 90267-47186-00 | Rivet, Blind (4.7X16.4 Black) | 2 |
