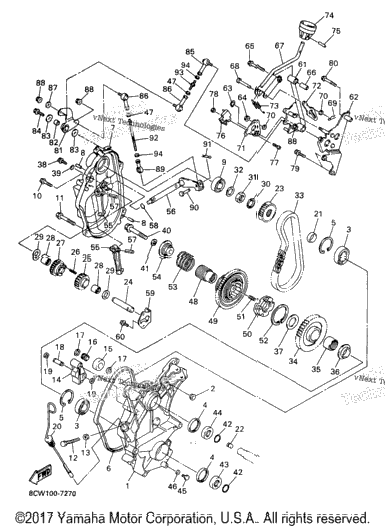

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 8CR-47541-01-00 | Housing, Chain | 1 |
| 2 | 90179-10679-00 | Nut | 2 |
| 2 | 93306-20570-00 | Bearing | 2 |
| 2 | 93102-35318-00 | Oil Seal | 2 |
| 2 | 99009-52500-00 | Circlip | 2 |
| 8CR-47558-00-00 | Ring, Housing | ||
| 8CW-47543-01-00 | Cap, Housing | ||
| 2 | 93606-20044-00 | Pin, Dowel | 2 |
| 1 | 93306-20468-00 | Bearing | 1 |
| 4 | 95817-08030-00 | Bolt, Flange | 4 |
| 3 | 95827-10060-00 | Bolt, Flange | 3 |
| 1 | 90101-10357-00 | Bolt | 1 |
| 1 | 95307-10600-00 | Nut | 1 |
| 1 | 8CR-47613-00-00 | Holder | 1 |
| 8CR-47612-00-00 | Wheel | ||
| 1 | 93315-21227-00 | Bearing | 1 |
| 2 | 90201-127E1-00 | Washer, Plate | 2 |
| 1 | 90249-12227-00 | Pin | 1 |
| 2 | 99009-12400-00 | Circlip | 2 |
| 8CR-47546-00-00 | Level, Oil | ||
| 90387-2508D-00 | Collar | ||
| 1 | 82M-17699-00-00 | Plug, Oil | 1 |
| 89J-17682-80-00 | Sprocket, Chain Drive (18T) UR AP | ||
| 89J-17682-00-00 | Sprocket, Chain Drive (20T) UR STD VT600 | ||
| 89J-17682-90-00 | Sprocet, Chain Drive (19T) UR STD VT500 | ||
| 89J-17682-10-00 | Sprocket, Chain Drive (21T) UR STD VT500 | ||
| 1 | 89J-17682-30-00 | Sprocket, Chain Drive (23T) UR AP | 1 |
| 1 | 89J-17682-20-00 | Sprocket, Chain Drive (22T) UR STD VT600 | 1 |
| 1 | 8CW-1761A-00-00 | Shaft 1 | 1 |
| 8CW-17692-00-00 | Sprocket, Drive | ||
| 1 | 90501-06022-00 | Spring, Compression | 1 |
| 1 | 8CW-17143-00-00 | Gear, Reverse Pinion 1 (18T) | 1 |
| 2 | 93317-21578-00 | Bearing | 2 |
| 2 | 90201-16245-00 | Washer, Plate | 2 |
| 1 | 90208-22001-00 | Washer, Conical Spring | 1 |
| 1 | 90170-22094-00 | Nut | 1 |
| 1 | 90201-207J5-00 | Washer, Plate | 1 |
| 94860-02068-00 | Chain (68L) UR STD VT500 | ||
| 94860-02070-00 | Chain (70L) UR STD VT600 | ||
| 8CW-47587-90-00 | Sprocket, Chain Driven (39T) UR STD | ||
| 1 | 93317-33179-00 | Bearing | 1 |
| 1 | 90387-2008G-00 | Collar | 1 |
| 1 | 90201-320S3-00 | Washer, Plate | 1 |
| 1 | 90105-060A6-00 | Bolt, Flange | 1 |
| 1 | 90210-06006-00 | Washer, Seal | 1 |
| 1 | 90105-100A7-00 | Bolt, Flange | 1 |
| 1 | 92907-10100-00 | Washer, Spring | 1 |
| 2 | 93210-25071-00 | O-Ring | 2 |
| 1 | 90387-2508C-00 | Collar | 1 |
| 90387-2511J-00 | Collar | ||
| 1 | 97007-08014-00 | Bolt | 1 |
| 1 | 90210-08017-00 | Washer, Seal | 1 |
| 2 | 90170-06289-00 | Nut | 2 |
| 1 | 8CW-47571-00-00 | Journal 1 | 1 |
| 1 | 8CW-17243-00-00 | Gear, Reverse Wheel 1 (50T) | 1 |
| 1 | 8CW-17492-00-00 | Dog, Transmission Shift | 1 |
| 5 | 90501-066J5-00 | Spring, Compression | 5 |
| 1 | 93440-39175-00 | Circlip | 1 |
| 90501-326J6-00 | .Spring, Compression | ||
| 1 | 8CW-47564-00-00 | Collar | 1 |
| 2 | 8CW-18511-00-00 | Fork, Shift 1 | 2 |
| 8CW-18197-00-00 | Shaft | ||
| 2 | 91609-50022-00 | Pin, Spring | 2 |
| 1 | 93210-12131-00 | O-Ring | 1 |
| 1 | 8CW-47591-00-00 | Plate | 1 |
| 2 | 90105-060A6-00 | Bolt, Flange | 2 |
| 8CW-18112-01-00 | .Arm, Shift | ||
| 1 | 8CW-18161-01-00 | .Guide, Plate Stopper | 1 |
| 1 | 99009-12400-00 | Circlip | 1 |
| 1 | 95607-06200-00 | Nut, Self U-Flange | 1 |
| 1 | 95817-06035-00 | Bolt, Flange | 1 |
| 90387-06605-00 | .Collar | ||
| 1 | 8CW-18152-01-00 | .Lever, Shift 4 | 1 |
| 1 | 91701-06035-00 | .Pin, Clevis | 1 |
| 1 | 90468-10050-00 | Clip | 1 |
| 2 | 92907-06200-00 | Washer | 2 |
| 1 | 8CW-1811A-00-00 | .Plate, Shift Arm | 1 |
| 8CW-18153-00-00 | .Guide, Shift Return Spring | ||
| 1 | 90506-14343-00 | .Spring, Tension | 1 |
| 1 | 8CL-18174-00-00 | .Knob, Shift Lever | 1 |
| 1 | 91609-40022-00 | .Pin, Spring | 1 |
| 1 | J51-82817-00-00 | Switch | 1 |
| 98907-04016-00 | .Screw, Bind | ||
| 1 | 95607-04100-00 | Nut, U | 1 |
| 95817-06025-00 | Bolt, Flange | ||
| 1 | 95827-06040-00 | Bolt, Flange | 1 |
| 1 | 8CW-18198-00-00 | .Lever | 1 |
| 1 | 90387-0608T-00 | Collar | 1 |
| 2 | 90201-063J2-00 | Washer, Plate | 2 |
| 1 | J45-23845-00-00 | Joint, Universal 2 | 1 |
| 2 | 88T-18157-00-00 | Joint 2 | 2 |
| 1 | 90201-06778-00 | Washer, Plate | 1 |
| 3 | 95607-06200-00 | Nut, Self U-Flange | 3 |
| 1 | 8CW-18156-00-00 | Joint 1 | 1 |
| 1 | 91701-06022-00 | Pin | 1 |
| 1 | 88T-18116-01-00 | .Joint, Rod 1 | 1 |
| 1 | 26H-18115-00-00 | Rod, Shift | 1 |
| 2 | 95304-06600-00 | Nut | 2 |
