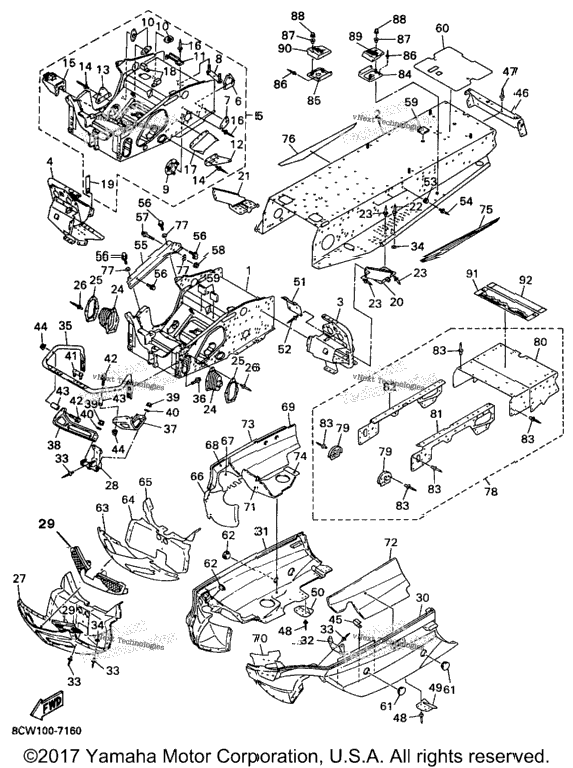

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 8CR-21940-09-00 | Front Frame Comp | 1 |
| 8CR-21950-09-00 | Rear Frame Comp | ||
| 8CR-21960-09-00 | Footrest Comp. 1 (L. H) | ||
| 8CR-21970-09-00 | Footrest Comp. 2 (R. H) | ||
| 8CR-W2195-00-00 | Frame Connection Kit (8Cr-W2195 4 | ||
| 2 | 8CR-21943-00-00 | . Bracket, Main Track 1 | 2 |
| 2 | 8CR-21953-00-00 | . Bracket, Main Track 2 | 2 |
| 1 | 8CR-2196F-00-00 | . Bracket 3 | 1 |
| 8CR-21920-00-00 | . Housing, Reinf Sub-Assy (L.H) | ||
| 3 | 8CR-21939-00-00 | . Bracket, Chain Housing | 3 |
| 2 | 8CR-21977-00-00 | . Clamp, Fuel Pipe | 2 |
| 1 | 8CR-21917-00-00 | . Panel, Sub Frame 6 | 1 |
| 1 | 8CR-21918-00-00 | . Panel, Sub-Frame 7 | 1 |
| 4 | 90267-48176-00 | . Rivet, Blind (4.8X17 Yellow) | 4 |
| 1 | 8CR-2194J-00-00 | . Stay, Muffler | 1 |
| 50 | 90267-47186-00 | . Rivet, Blind (4.7X16.4 Black)1 UN | 50 |
| 1 | 8CR-2198G-00-00 | . Cover 2 | 1 |
| 2 | 90461-06142-00 | . Clamp | 2 |
| 90462-05061-00 | . Clamp | ||
| 8CR-21941-00-00 | Pipe, Pivot 1 | ||
| 1 | 8CR-21951-00-00 | Pipe, Pivot 2 | 1 |
| 4 | 90267-47186-00 | Rivet, Blind (4.7X16.4 Black) | 4 |
| 15 | 90267-48169-00 | .Rivet, Blind (4.8X14.1 Black) UR | 15 |
| 8CR-2198F-00-00 | Cover 1 | ||
| 2 | 8CR-2195E-00-00 | Plate, Steering Bracket 1 | 2 |
| 10 | 90267-48165-00 | Rivet, Blind | 10 |
| 8CR-21912-00-00 | Panel, Sub-Frame 1 | ||
| 8CR-23788-00-00 | Plate, Back Up | ||
| 8CR-77128-00-00 | Stay 4 | ||
| 8CR-2196A-00-00 | Frame, Under 1 | ||
| 8CR-2196E-00-00 | Frame, Under 2 | ||
| 8CR-21972-00-00 | Bracket, Guard Fitting | ||
| 53 | 90267-48141-00 | Rivet, Blind | 53 |
| 18 | 90201-05033-00 | Washer, Plate | 18 |
| 1 | 8CR-77512-00-00 | Bumper, Front 2 | 1 |
| 4 | 95807-08020-00 | Bolt, Flange | 4 |
| 1 | 8CR-21949-00-00 | Bracket, Front | 1 |
| 8CR-21959-00-00 | Bracket, Front Bumper | ||
| 4 | 95607-06200-00 | Nut, Self U-Flange | 4 |
| 4 | 90201-064J1-00 | Washer, Plate | 4 |
| 2 | 8CR-2196M-00-00 | Bracket, 5 | 2 |
| 4 | 95807-08040-00 | Bolt, Flange | 4 |
| 4 | 90387-0810F-00 | Collar | 4 |
| 4 | 95707-08500-00 | Nut, Flange | 4 |
| 3 | 90465-08146-00 | Clamp | 3 |
| 8CR-21923-00-00 | Reinforcement, Frame Rear 1 | ||
| 9 | 90267-48095-00 | Rivet, Blind (4.8X12.6 Silver) | 9 |
| 8 | 90267-48141-00 | Rivet, Blind | 8 |
| 1 | 8CR-21978-00-00 | Protector, Frame | 1 |
| 1 | 8CR-2197B-00-00 | Protector, Frame | 1 |
| 8CR-21973-00-00 | Hook | ||
| 3 | 90267-48169-00 | .Rivet, Blind (4.8X14.1 Black) | 3 |
| 6 | 81K-2471F-00-00 | Button | 6 |
| 90267-40135-00 | Rivet, Blind (90267-40069-00 ) | ||
| 8CR-21921-00-00 | Reinforcement, Frame Rear 1 | ||
| 6 | 90105-10617-00 | Bolt, Flange | 6 |
| 1 | 95827-10060-00 | Bolt, Flange | 1 |
| 1 | 95707-10500-00 | Nut, Flange | 1 |
| 3 | 83R-7717G-01-00 | Tape 3 | 3 |
| 8CW-2475M-00-00 | Seal | ||
| 3 | 90338-44093-00 | Plug | 3 |
| 3 | 90338-30256-00 | Plug | 3 |
| 8CR-77261-00-00 | Lining, Shroud 1 | ||
| 1 | 8CR-77262-00-00 | Lining, Shroud 2 | 1 |
| 8CR-77263-00-00 | Lining, Shroud 3 | ||
| 1 | 8CR-77264-00-00 | Lining, Shroud 4 | 1 |
| 8CR-77265-00-00 | Lining, Shroud 5 | ||
| 8CR-77266-00-00 | Lining, Shroud 6 | ||
| 1 | 8CR-77267-00-00 | Lining, Shroud 7 | 1 |
| 1 | 8CR-77268-00-00 | Lining, Shroud 8 | 1 |
| 8CR-77269-00-00 | Lining, Shroud 9 | ||
| 1 | 8CR-77271-00-00 | Damper, Noise 11 | 1 |
| 8CR-7717J-00-00 | Tape, 5 | ||
| 1 | 8CR-77165-00-00 | Trim 1 | 1 |
| 8CW-77351-01-00 | Emblem 1 | ||
| 8CW-77352-01-00 | Emblem 2 | ||
| 3 | 92907-10200-00 | Washer, Plain | 3 |
| 1 | 8CW-W2196-00-00 | Panel, Sub-Frame Kit | 1 |
| 2 | 8CW-21943-00-00 | . Bracket, Main Track 1 | 2 |
| 1 | 8CW-21916-00-00 | . Panel, Sub Frame 5 | 1 |
| 8CW-21964-00-00 | . Patch 4 | ||
| 8CW-21965-00-00 | . Patch 5 | ||
| 70 | 90267-47186-00 | . Rivet, Blind (4.7X16.4 Black) UN | 70 |
| 8CW-27431-00-00 | Footrest, Rear 1 | ||
| 8CW-27441-00-00 | Footrest, Rear 2 | ||
| 8 | 90267-48169-00 | .Rivet, Blind (4.8X14.1 Black) | 8 |
| 4 | 90387-06388-00 | Collar | 4 |
| 4 | 90176-06055-00 | Nut, Crown | 4 |
| 1 | 88T-27431-00-00 | Footrest, Rear 1 | 1 |
| 1 | 88T-27441-00-00 | Footrest, Rear 2 | 1 |
| 8CY-77141-00-00 | Emblem 1 UR VT500 | ||
| 8CY-77762-00-00 | Label, Warning 2 UR VT500 |
