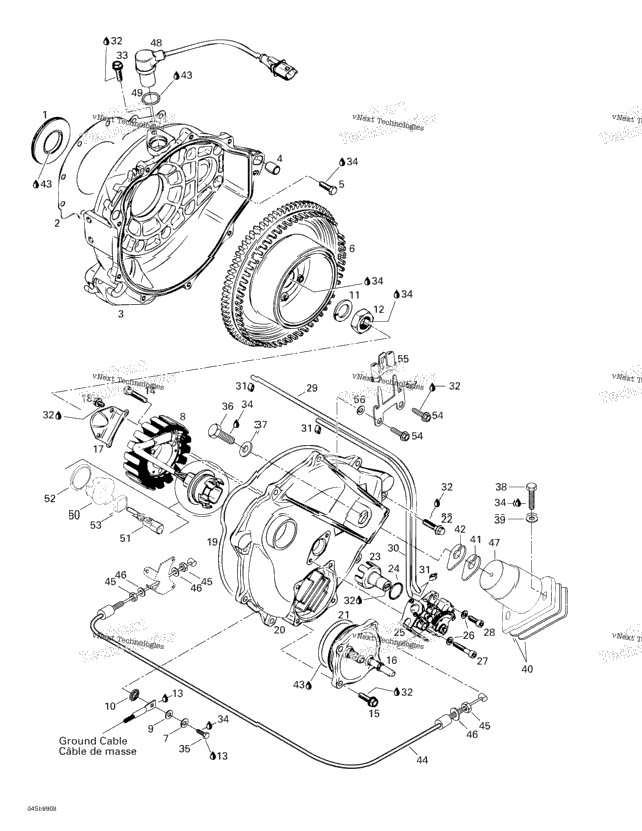

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 290830749 | Oil Seal | 1 |
| 290931470 | Gasket | ||
| 290811011 | Ignition Housing (Silver) Includes 3 - 4. | ||
| 290229153 | Dowel Tube | ||
| 10 | 420240031 | Hex. Screw M6 X 25 | 10 |
| 290966560 | Trigger Wheel | ||
| 1 | 234161601 | Lock Washer Helical M6 | 1 |
| 290887950 | Stator Plate Ass'y | ||
| 1 | 234062600 | Flat Washer M6, Stainless | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 290945757 | Lock Washer 18 mm | ||
| 1 | 420942220 | Hex. Nut M18 | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 3 | 290640051 | Socket Head Screw M6 x 35 | 3 |
| 290941253 | Tapping Screw M6 x 20 | ||
| 290811220 | Waterchannel Cover | ||
| 290851400 | Holding Strip | ||
| 2 | 207150844 | HEX. SCREW M5 X 8 | 2 |
| 1 | 420950360 | O-RING | 1 |
| 290811022 | Ignition Cover | ||
| 290850390 | O-Ring | ||
| 290240033 | Hex. Flange Screw M6 x 25 | ||
| 290837392 | Shaft Oil Pump | ||
| 1 | 293300018 | O-RING | 1 |
| 290887339 | Oil Pump Ass'y | ||
| 290845389 | Lock Washer | ||
| 290940883 | Socket Head Screw M5 x 30 | ||
| 1 | 205051660 | SOCKET HEAD SCREW M5 X 16 | 1 |
| 1 | 219704404 | Oil Hose 1500Mm Long | 1 |
| 420256408 | Clamp | ||
| 293800023 | LUBRICANT LOCTITE LB 8150 | ||
| 211000203 | Taptite Screw M6 x 16 | ||
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 1 | 207161660 | Hex. Screw M6 X 16 | 1 |
| 207182060 | HEX. SCREW M8 X 20 | ||
| 1 | 234082600 | Flat Washer 8 mm, Stainless | 1 |
| 2 | 207184060 | Hex. Screw M8 X 40 | 2 |
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 1 | 270000445 | SHIM 0.3 MM | 1 |
| 1 | 270000446 | Shim 1.3 mm | 1 |
| 1 | 270000024 | SHIM 0.4 MM | 1 |
| 1 | 270000025 | SHIM 1.3 MM | 1 |
| 1 | 413707000 | Dow Corning 111, 150 g | 1 |
| 1 | 270000437 | INJECTION CABLE ASS'Y Includes 44 - 46. | 1 |
| 3 | 232160600 | Hex. Nut M6 | 3 |
| 3 | 234061600 | Stainless, Flat Washer M6 | 3 |
| 270000408 | Rubber Mount | ||
| 278001346 | Crank Sensor Includes 48 - 49. | ||
| 293300051 | O-Ring | ||
| 270000243 | Adaptor Ass'y Includes 50 - 53. | ||
| 1 | 278000635 | Female Housing, 4 Circuits | 1 |
| 293300033 | Gasket | ||
| 1 | 293200042 | GASKET | 1 |
| 2 | 207562560 | Flanged Hex. Screw M6 X 25, Scotch | 2 |
| 1 | 278000213 | INSULATOR | 1 |
| 2 | 234461608 | External Serrated Lock Washer 6 mm | 2 |
| 278001455 | Ground Plate | ||
| 290886396 | CYLINDER GASKET SET (NOT SHOWN) | ||
| 290886392 | ENGINE GASKET SET (NOT SHOWN) |
