Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

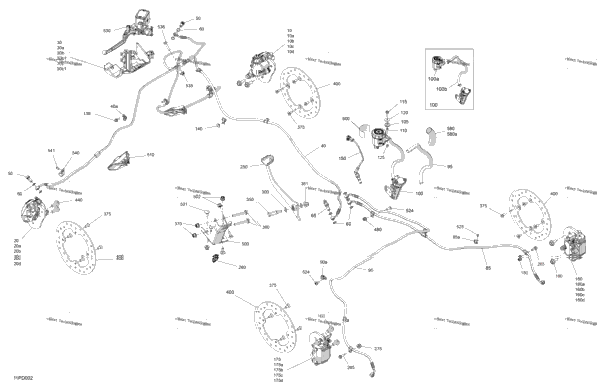

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705602188 | RH Front Brake Caliper Includes 10 to 10d | 1 |
| 1 | 705601015 | LH Organic Brake Pad Kit | 1 |
| 1 | 705601016 | Pin Set | 1 |
| 1 | 705601017 | Bleeding Screw | 1 |
| 1 | 705601018 | Retaining Spring | 1 |
| 1 | 705602189 | LH Front Brake Caliper Includes 20 to 20d | 1 |
| 1 | 705601014 | LH Organic Brake Pad Kit | 1 |
| 1 | 705601430 | LH Front Master Cylinder Includes 30 to 30c1 | 1 |
| 1 | 705601013 | Lever Set | 1 |
| 1 | 507032477 | Clamp And Screw Kit Includes 30b to 30b1 | 1 |
| 2 | 250000447 | Hex. Flange Screw M6 X 25 | 2 |
| 1 | 219800096 | Cap Set Includes 30c to 30c1 | 1 |
| 2 | 415129356 | Screw M4 X 20 | 2 |
| 1 | 705601686 | Brake Line Includes 40 to 40a | 1 |
| 5 | 293650256 | Clamp | 5 |
| 5 | 705600609 | Banjo Bolt (M10 x 1.25 thread) | 5 |
| 15 | 414920600 | Washer | 15 |
| 1 | 705601051 | Bleeding Screw | 1 |
| 1 | 705601324 | RH Rear Hose Includes 85 to 85a | 1 |
| 4 | 293650256 | Clamp | 4 |
| 1 | 705601556 | LH Rear Brake Line Includes 90 to 90a | 1 |
| 1 | 219704407 | Tubing 10 MM 1000MM Long | 1 |
| 1 | 705601776 | Rear Master Cylinder Ass'y Includes 100 to 100b | 1 |
| 1 | 705601020 | Oil Tank | 1 |
| 1 | 705601019 | Oil Housing Hose | 1 |
| 1 | 414036300 | Grommet | 1 |
| 1 | 293900112 | Bushing | 1 |
| 1 | 207652044 | Hex.Flange Screw M5 X 20 | 1 |
| 1 | 224060201 | Flat Washer | 1 |
| 1 | 233251434 | Flange Elastic Nut M5 | 1 |
| 2 | 210261640 | Hex. Flange Screw M6 X 16 | 2 |
| 1 | 390406500 | Pop Rivet 3/16" | 1 |
| 1 | 705601251 | Brake Switch | 1 |
| 1 | 705602190 | RH Rear Brake Caliper Includes 160 to 160d | 1 |
| 1 | 705602191 | LH Rear Brake Caliper Includes 175 to 175d | 1 |
| 4 | 207502046 | Hex. Flange Screw M10 X 20 | 4 |
| 1 | 705602163 | Deep Black, Brake Pedal | 1 |
| 1 | 705600792 | Brake Pedal Spring | 1 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 2 | 293300144 | O-Ring | 2 |
| 1 | 250000513 | Shoulder Screw M10 | 1 |
| 1 | 233201436 | Hex. Flange Elastic Nut M10 | 1 |
| 2 | 207685544 | Hex. Flange Screw M8 X 55 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 16 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 16 |
| 4 | 705601997 | Disc Brake | 4 |
| 4 | 207502546 | Hex. Flange Screw M10 X 25 | 4 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 705202000 | Brake Pedal Bracket | 1 |
| 3 | 207782044 | Carriage Bolt, M8 X 20 | 3 |
| 3 | 233281414 | Hex. Flange Elastic Nut M8 | 3 |
| 2 | 705602016 | Front Hose Guard | 2 |
| 3 | 250000755 | Torx Screw M6 X 16 | 3 |
| 2 | 390402400 | Pop Rivet 3/16" | 2 |
| 1 | 705600983 | Front Hose Bracket | 1 |
| 1 | 250100198 | Panel Nut M6 X 1.0 | 1 |
| 1 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip | 1 |
| 2 | 518321570 | Open Clamp | 2 |
| 2 | 293150301 | Pop Rivet 3/16 X ,551 | 2 |
| 1 | 219704402 | Tubing 25 MM 1000MM Long Includes 580 to 580a | 1 |
| 1 | 710009586 | Tubing 25 mm | 1 |
| 1 | 705601311 | Heat Shield | 1 |
