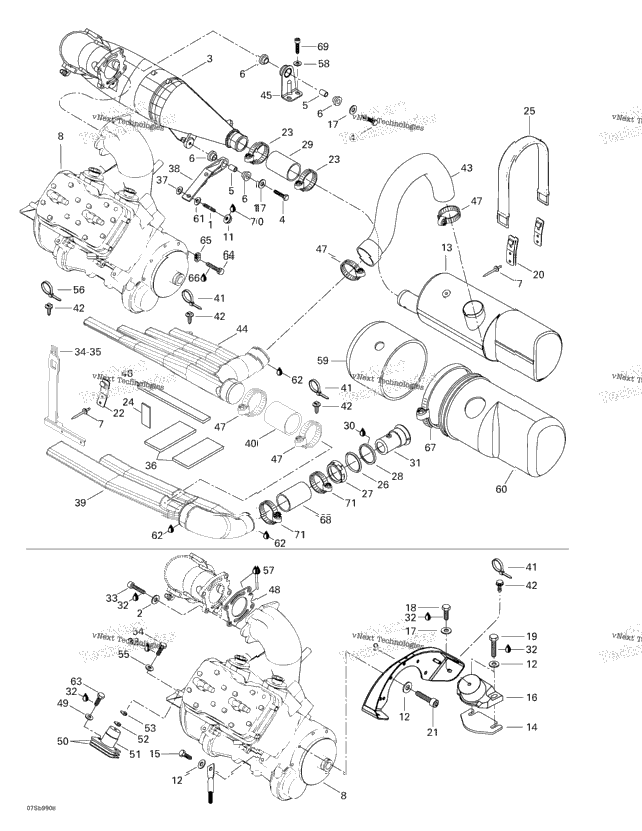

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 250300001 | Stud M10 x 55 Scotch Grip | ||
| 4 | 234001600 | Flat Washer 10 mm, Stainless | 4 |
| 274000395 | Head Pipe Ass'y | ||
| 2 | 207284060 | Hex. Screw M8 X 40, Scotch Grip | 2 |
| 2 | 274000254 | Bushing | 2 |
| 4 | 293830036 | Rubber Bushing | 4 |
| 6 | 293150037 | Avdel Rivet 3/16" | 6 |
| 270000466 | Rotax Engine 787 SDI (Silver) | ||
| 270000359 | Engine Support | ||
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 2 | 233101600 | Hex. Flange Nut M10 | 2 |
| 10 | 234081600 | Stainless, Flat Washer 8 mm | 10 |
| 274000737 | Muffler | ||
| 270000122 | Shim 0.3 mm | ||
| 270000123 | SHIM 1.3 MM | ||
| 1 | 207382560 | Hex. Screw M8 X 25, Scotch Grip | 1 |
| 270000421 | Rubber Mount, Black | ||
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 207181660 | Hex. Screw M8 X 16 | ||
| 4 | 207184060 | Hex. Screw M8 X 40 | 4 |
| 2 | 293850024 | STRAP CLIP | 2 |
| 5 | 205582560 | Socket Head Screw M8 X 25, Scotch Grip | 5 |
| 293850042 | Strap Clip | ||
| 2 | 293650023 | Tridon Clamp | 2 |
| 291001391 | Rubber Pad | ||
| 1 | 293850021 | Rubber Strap | 1 |
| 274000225 | STABILIZING WASHER | ||
| 1 | 274000224 | Nut 72 mm | 1 |
| 1 | 293250041 | GASKET | 1 |
| 274000170 | Exhaust Hose | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 274000505 | Outlet Exhaust | 1 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 205003560 | Socket Head Screw M10 x 35 | ||
| 293850044 | Resonator Strap Ass | ||
| 293850031 | STRAP | ||
| 2 | 274000752 | RUBBER PAD | 2 |
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 1 | 274000759 | SUPPORT PIPE | 1 |
| 1 | 274000701 | RESONATOR EXTENSION | 1 |
| 274000616 | Exhaust Hose | ||
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293730018 | Mount Dart | 1 |
| 1 | 274000725 | EXHAUST HOSE | 1 |
| 1 | 274000700 | LH UPPER RESONATOR | 1 |
| 274000779 | Pipe Support | ||
| 274000785 | Rubber Pad | ||
| 4 | 293650064 | Tridon Clamp | 4 |
| 290931500 | Gasket | ||
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 1 | 270000445 | SHIM 0.3 MM | 1 |
| 1 | 270000446 | Shim 1.3 mm | 1 |
| 270000408 | Rubber Mount | ||
| 1 | 270000024 | SHIM 0.4 MM | 1 |
| 1 | 270000025 | SHIM 1.3 MM | 1 |
| 207182060 | HEX. SCREW M8 X 20 | ||
| 1 | 234082600 | Flat Washer 8 mm, Stainless | 1 |
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 2 | 293050001 | Flat Washer M8.5 x 18 | 2 |
| 274000744 | Cover Muffler - front | ||
| 274000745 | Cover Muffler - rear | ||
| 2 | 211200051 | Flat Washer | 2 |
| 1 | 413710300 | Loctite 17914, Sealant, 80 ml | 1 |
| 2 | 207184060 | Hex. Screw M8 X 40 | 2 |
| 205003060 | Socket Screw M10 X 30 | ||
| 1 | 232001600 | HEX. NUT M10 | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 293650092 | Norma Gear Clamp | ||
| 1 | 274000726 | EXHAUST HOSE | 1 |
| 2 | 205582560 | Socket Head Screw M8 X 25, Scotch Grip | 2 |
| 413705200 | Loctite 262, 50 ml | ||
| 2 | 204000079 | Tridon Clamp | 2 |
