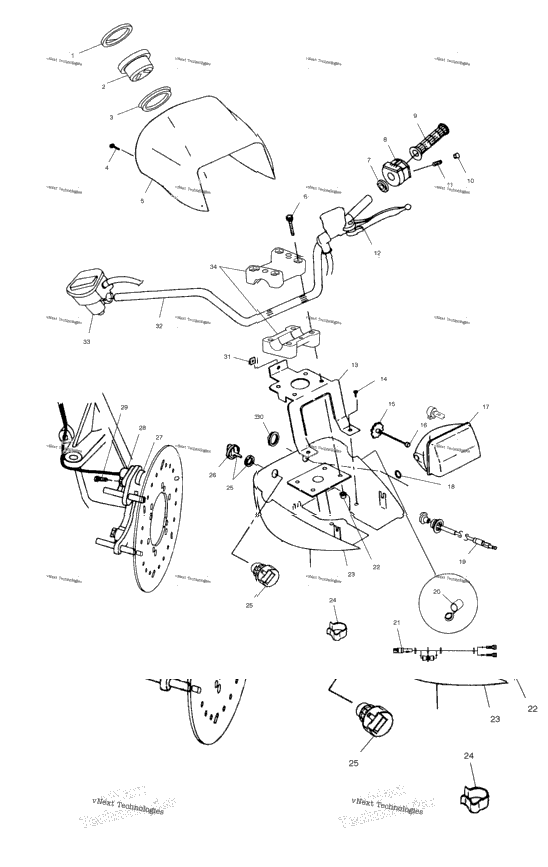

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 5434380 | REPLACEMENT BEZEL, ATV, CLUSTER | 1 |
| 3280425 | Discontinued | ||
| 1 | 5412138 | MOUNT-RUBBER,INSTR. CLUSTER | 1 |
| 3 | 7511881 | SCREW | 3 |
| 1 | 5434284-400 | HEADLIGHT POD UPPER CAMO GREEN [AA] | 1 |
| 5434284-288 | POD-HDLT,UPPER,BLAZING RED ** (AB) | ||
| 5434284-053 | POD-HDLT,UPPER,MED YLW (AC) | ||
| 4 | 7517238 | SCREW | 4 |
| 5433903 | SWITCH SPACER, LEFT | ||
| 1 | 4010422 | HI/LO/MODE HANDLEBAR SWITCH (If built before 7/22/02) | 1 |
| 1 | 4010560 | HI/LO/MODE HANDLEBAR SWITCH (If built after 7/22/02) | 1 |
| 2 | 5433834-070 | HANDLEBAR GRIP, 7/8 ID, GLOSS B | 2 |
| 1 | 5432952 | PLUG, HOLE | 1 |
| 1 | 7517625 | SCREW, SET | 1 |
| ------- | ASM., MASTER CYLINDER [SEE CONTROLS - MASTER CYLINDER/BRAKE LINE PG. B1 FOR DETAILS] | ||
| 1 | 5244969-067 | POD MOUNTING BRACKET, BLACK | 1 |
| 2 | 7517317 | SCREW | 2 |
| 1 | 4032079 | ADJUSTING KNOB | 1 |
| 4032078 | Discontinued | ||
| 1 | 2410268 | HEADLAMP ASSEMBLY, 50 WATT | 1 |
| 1 | 4010253 | 50 WATT HEADLIGHT BULB | 1 |
| 1 | 2204143 | HEADLIGHT HARNESS KIT | 1 |
| 2 | 5410163 | O-RING | 2 |
| 1 | 7081008 | FRICTION CHOKE CABLE, 40 IN | 1 |
| 1 | 4010638 | POD RECEPTACLE MOUNT, 12 VOLT | 1 |
| 2461045 | HARNESS-LIGHT POD/ACCY | ||
| 4 | 7542122 | NYLOK NUT | 4 |
| 5433762-070 | Discontinued [AA] | ||
| 7080631 | Discontinued | ||
| 1 | 4010390 | SWITCH-KEY 3 POS UNSEALED [Incl. Key] | 1 |
| 1 | 4010278 | KEYBLANK-B,6700-6800,2000-2100 NOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key. | 1 |
| 1 | 4010321 | KEYBLANK-A,2700-2800,2200-2389 NOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key. | 1 |
| 1 | 5433534 | KEY COVER-KEYSWITCH | 1 |
| 1 | 5132382 | HALL SENSOR CAP | 1 |
| 1 | 4010298 | HALL EFFECT SENSOR | 1 |
| 1 | 7517658 | SCREW | 1 |
| 1 | 7080922 | CHOKE NUT, 24 MM X 1.5 MM | 1 |
| 1 | 7670127 | #8-10 PANEL CLIP SCREW | 1 |
| 1 | 5242987-067 | HANDLEBAR TUBE, MEDIUM GLOSS BL | 1 |
| ------- | ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B12, REF. 5] | ||
| 1 | 5631146 | BLOCK-HANDLEBAR,PEGGED | 1 |
| 5631147 | BLOCK-HANDLEBAR |
