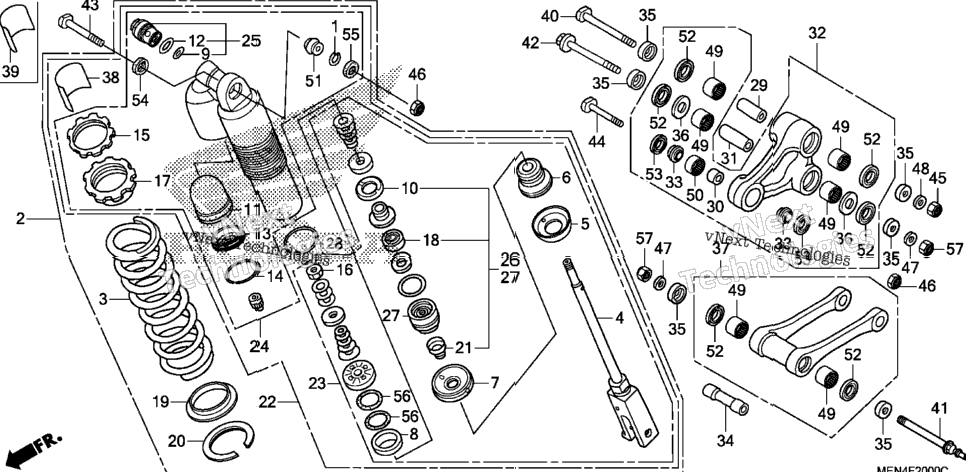

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 41405-HA7-670 | RING, STOPPER | 1 |
| 1 | 52400-MEN-A31 | CUSHION ASSY., RR. | 1 |
| 1 | 52400-MEN-305 | CUSHION ASSY., RR. (COO) | 1 |
| 1 | 52401-MEN-A31 | SPRING, RR. SHOCK ABSORBER (54N/MM) | 1 |
| 1 | 52402-MEN-A31 | SPRING, RR. SHOCK ABSORBER (52N/MM) (Optional). | 1 |
| 1 | 52403-MEN-A31 | SPRING, RR. SHOCK ABSORBER (56N/MM) (Optional). | 1 |
| 1 | 52421-MEN-A31 | ROD | 1 |
| 1 | 52422-MEN-A31 | CAP, BUMPER RUBBER | 1 |
| 1 | 52423-MEN-A31 | RUBBER, BUMPER | 1 |
| 1 | 52424-MEN-A31 | CAP, CASE | 1 |
| 1 | 52428-MEN-A31 | RING, PISTON | 1 |
| 1 | 52433-MAC-741 | O-RING (21.5X1.5) | 1 |
| 1 | 52434-KSR-711 | RUBBER, STOPPER | 1 |
| 1 | 52434-MEN-A31 | BLADDER | 1 |
| 1 | 52435-MAC-741 | O-RING (25.5X2.0) | 1 |
| 1 | 52435-MEN-A31 | CAP, BLADDER | 1 |
| 1 | 52436-MEN-A31 | RING, SNAP | 1 |
| 1 | 52437-MEN-A31 | NUT, ADJUST | 1 |
| 1 | 52438-KA3-731 | NUT, HEX. (12MM) | 1 |
| 1 | 52438-MEN-A31 | SEAT, SPRING (UPPER) | 1 |
| 1 | 52439-KSR-711 | OIL SEAL | 1 |
| 1 | 52439-MEN-A31 | WASHER, SPRING SEAT | 1 |
| 1 | 52440-MEN-A31 | SEAT, SPRING (LOWER) | 1 |
| 1 | 52441-MEN-A31 | DUST SEAL | 1 |
| 1 | 52442-MEN-A31 | DAMPER, RR. | 1 |
| 1 | 52443-MEN-A31 | ROD, PISTON | 1 |
| 1 | 52444-MEN-A31 | CASE, RR. | 1 |
| 1 | 52445-MEN-A31 | ADJUSTER, COMPRESSION DAMPING FORCE | 1 |
| 1 | 52446-MEN-A31 | OIL SEAL SET | 1 |
| 1 | 52447-MEN-A31 | CASE ASSY., ROD GUIDE | 1 |
| 1 | 52448-MEN-A31 | RING, SNAP | 1 |
| 1 | 52463-KZ4-J40 | COLLAR C, CUSHION ARM | 1 |
| 1 | 52464-KRN-710 | COLLAR D, CUSHION ARM | 1 |
| 1 | 52464-MEN-A30 | COLLAR B, CUSHION | 1 |
| 1 | 52465-MEN-A30 | ARM SUB-ASSY., CUSHION | 1 |
| 2 | 52466-KRN-710 | COLLAR D, CUSHION ARM SIDE | 2 |
| 1 | 52473-MEN-A30 | COLLAR, CONNECTING ROD | 1 |
| 6 | 52475-KZ4-J20 | COLLAR, LINK SIDE | 6 |
| 2 | 52476-KZ4-J20 | WASHER, THRUST | 2 |
| 52479-MEN-A30 | ROD SUB-ASSY., CUSHION CONNECTING | ||
| 1 | 87516-KZ1-600 | LABEL, RR. DAMPER WARNING | 1 |
| 1 | 90130-MEN-840 | BOLT, LINK (12X82) | 1 |
| 1 | 90131-MEN-A30 | BOLT, LINK (12X116) | 1 |
| 1 | 90132-MEN-A30 | BOLT, LINK (12X87) | 1 |
| 1 | 90152-MEB-750 | BOLT, CUSHION (UPPER) (10X53) | 1 |
| 1 | 90153-KZ4-710 | BOLT, CUSHION (LOWER) (10X43.5) | 1 |
| 1 | 90305-KRN-A30 | NUT, U (12MM) | 1 |
| 2 | 90306-KZ4-711 | NUT, U (10MM) | 2 |
| 2 | 90501-KRN-710 | WASHER, PLAIN (12MM) | 2 |
| 1 | 90501-KZ4-J40 | WASHER, PLAIN (12MM) | 1 |
| 6 | 91051-KSC-003 | BEARING, NEEDLE (20X26X15) | 6 |
| 1 | 91074-KRN-711 | BEARING, NEEDLE (19X26X13) | 1 |
| 1 | 91074-MAC-741 | BEARING, SPHERICAL (10) | 1 |
| 6 | 91262-KZ3-731 | DUST SEAL (25X32X4) | 6 |
| 2 | 91351-KRN-711 | DUST SEAL (17.5X26X3) | 2 |
| 1 | 91351-KZ3-731 | DUST SEAL, RR. CUSHION PIVOT | 1 |
| 1 | 91351-MAC-671 | DUST SEAL, SHOCK (16X26X3) | 1 |
| 2 | 91351-MEN-A31 | O-RING | 2 |
| 2 | 90305-KRN-A30 | NUT, U (12MM) | 2 |
