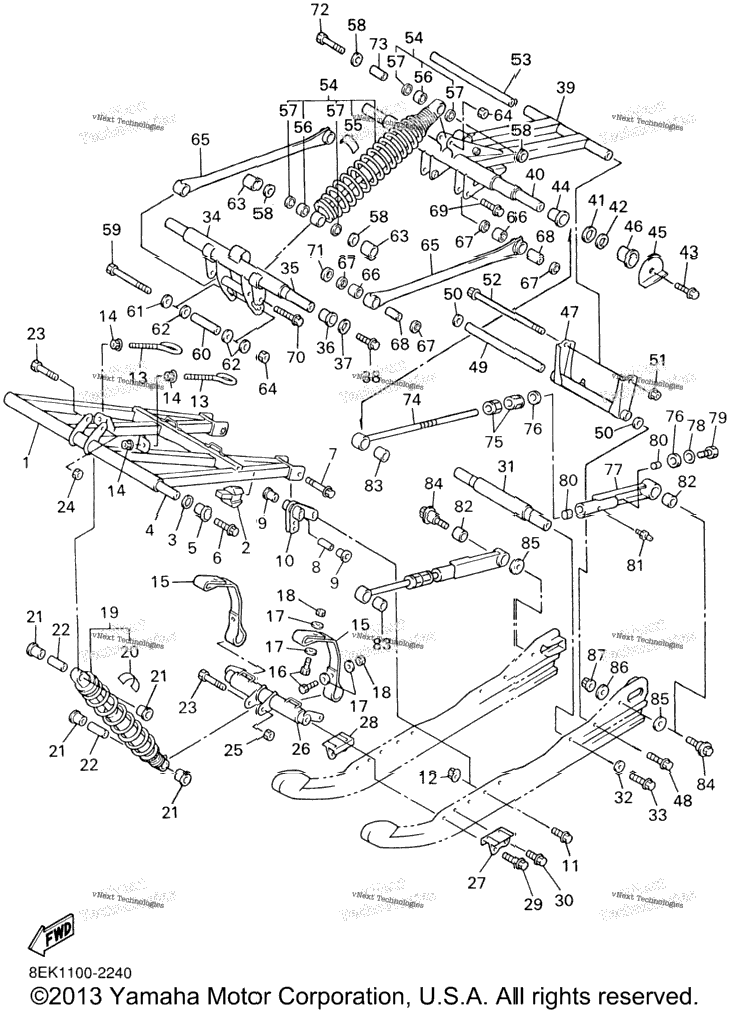

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 8CV-47331-01-00 | Arm, Pivot 1 (8EK1) | 1 |
| 8DF-47456-10-00 | Damper 1 (8EK1) | ||
| 2 | 90201-210U0-00 | .Washer, Plate (8EK1) | 2 |
| 1 | 8CR-47465-00-00 | Shaft 1 (8EK1) | 1 |
| 2 | 90381-19111-00 | Bush, Solid (8EK1) | 2 |
| 2 | 90105-103A1-00 | Bolt, Flange (8EK1) | 2 |
| 2 | 90105-10769-00 | Bolt, Flange (8EK1) | 2 |
| 2 | 90387-1009T-00 | Collar (8EK1) | 2 |
| 4 | 90381-15112-00 | Bush, Solid (8EK1) | 4 |
| 8CR-47415-00-00 | Bracket 1 (8EK1) | ||
| 2 | 95817-10025-00 | Bolt, Flange (8EK1) | 2 |
| 2 | 95607-10200-00 | Nut, U Flange (8EK1) | 2 |
| 2 | 8CR-47448-00-00 | Hook 3 (8EK1) | 2 |
| 4 | 95707-08500-00 | Nut, Flange (8EK1) | 4 |
| 2 | 8CR-47495-00-00 | Stopper 1 (8EK1) | 2 |
| 4 | 97007-06025-00 | Bolt (8EK1) | 4 |
| 8 | 90201-06747-00 | Washer, Plate (8EK1) | 8 |
| 4 | 95707-06300-00 | Nut, Nylon (8EK1) | 4 |
| 1 | 8EK-47481-00-00 | Shock Absorber 2 (8EK1) | 1 |
| 1 | 4AA-22259-60-00 | . .Label, Warning (8EK1) | 1 |
| 4 | 90381-14101-00 | Bush, Solid (8EK1) | 4 |
| 2 | 90387-105G5-00 | Collar (8EK1) | 2 |
| 2 | 90101-10738-00 | Bolt (8EK1) | 2 |
| 1 | 90185-10110-00 | Nut, Self-Locking (8EK1) | 1 |
| 1 | 95607-10100-00 | Nut, U (8EK1) | 1 |
| 1 | 8EA-47418-00-00 | Bracket 4 (8EK1) | 1 |
| 1 | 8DF-47463-01-00 | Bracket 5 (8EK1) | 1 |
| 1 | 8DF-47464-01-00 | Bracket 6 (8EK1) | 1 |
| 2 | 90105-10433-00 | Bolt, Flange (8EK1) | 2 |
| 2 | 90105-08450-00 | Bolt, Flange (8EK1) | 2 |
| 1 | 8CR-47486-00-00 | Shaft 4 (8EK1) | 1 |
| 2 | 90201-100L3-00 | Washer, Plate (8EK1) | 2 |
| 8CR-47416-10-00 | Bracket 2 (8EK1) | ||
| 8CR-47488-00-00 | Shaft 6 (8EK1) | ||
| 2 | 90381-22099-00 | Bush, Solid (8EK1) | 2 |
| 2 | 90201-207J5-00 | Washer, Plate (8EK1) | 2 |
| 1 | 8CR-47332-10-00 | Arm, Pivot 2 (8EK1) | 1 |
| 1 | 8CR-47475-00-00 | Shaft 2 (8EK1) | 1 |
| 2 | 90201-251G8-00 | Washer, Plate (8EK1) | 2 |
| 2 | 90201-250T6-00 | Washer, Plate (8EK1) | 2 |
| 2 | 90381-28108-00 | Bush, Solid (8EK1) | 2 |
| 8CR-47426-21-00 | Bracket, Rear 1 (8EK1) | ||
| 8CR-47425-00-00 | Bracket, Rear 2 (8EK1) | ||
| 8CR-47417-01-00 | Bracket 3 (8EK1) | ||
| 82M-47485-02-00 | Shaft 3 (8EK1) | ||
| 2 | 90201-10136-00 | Washer, Plate (8EK1) | 2 |
| 1 | 95607-08200-00 | Nut, Self-Locking (8EK1) | 1 |
| 1 | 95827-08220-00 | Bolt, Flange (8EK1) | 1 |
| 1 | 90387-083G6-00 | Collar (8EK1) | 1 |
| 8CH-47480-40-00 | Shock Absorber (8EK1) | ||
| 2 | 93315-21454-00 | . Bearing (8EK1) | 2 |
| 4 | 93109-14021-00 | . Oil Seal (8EK1) | 4 |
| 4 | 90202-14226-00 | Washer, Plate (8EK1) | 4 |
| 1 | 8AC-4631K-00-00 | Bolt, Adjusting (8EK1) | 1 |
| 1 | 90387-1009S-00 | Collar (8EK1) | 1 |
| 1 | 90201-103U4-00 | Washer, Plate (8EK1) | 1 |
| 3 | 90201-100U1-00 | Washer, Plate (8EK1) | 3 |
| 2 | 90387-1404R-00 | Collar (8EK1) | 2 |
| 2 | 95607-10100-00 | Nut, U (8EK1) | 2 |
| 8CX-47494-01-00 | Rod, Relay (8EK1) | ||
| 4 | 93315-21455-00 | Bearing (8EK1) | 4 |
| 8 | 93109-14021-00 | Oil Seal (8EK1) | 8 |
| 90387-1007M-00 | Collar (8EK1) | ||
| 2 | 90105-10739-00 | Bolt, Flange (8EK1) | 2 |
| 2 | 90105-10436-00 | Bolt, Flange (8EK1) | 2 |
| 2 | 90201-100U1-00 | Washer, Plate (8EK1) | 2 |
| 1 | 90101-10738-00 | Bolt (8EK1) | 1 |
| 1 | 90387-1007N-00 | Collar (8EK1) | 1 |
| 8EK-4745A-00-00 | Rod, Control 1 (8EK1) | ||
| 8EK-4745C-00-00 | Rod, Control 3 (8EK1) | ||
| 4 | 90202-16229-00 | Washer, Plate (8EK1) | 4 |
| 2 | 8CR-4745B-00-00 | Rod, Control 2 (8EK1) | 2 |
| 2 | 90201-106F2-00 | Washer, Plate (8EK1) | 2 |
| 2 | 97027-10025-00 | Bolt, Hexagon (8EK1) | 2 |
| 4 | 90384-16251-00 | Bush, Bimetal Formed (8EK1) | 4 |
| 2 | 93700-06004-00 | Nipple, Grease (8EK1) | 2 |
| 2 | 90380-22232-00 | Bush, Solid (8EK1) | 2 |
| 2 | 90380-28235-00 | Bush, Solid (8EK1) | 2 |
| 2 | 8DF-47367-00-00 | Screw, Rear Pivot (8EK1) | 2 |
| 2 | 90201-100S2-00 | Washer, Plate (8EK1) | 2 |
| 2 | 90201-101U2-00 | Washer, Plate (8EK1) | 2 |
