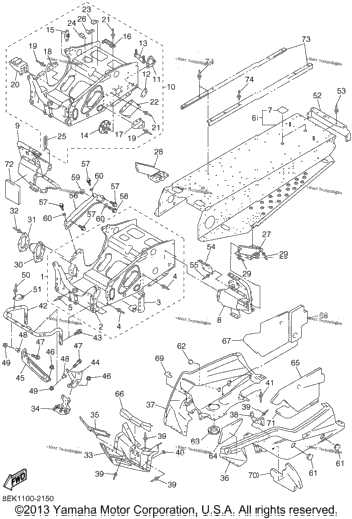

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 8EK-21940-09-00 | Front Frame Comp | ||
| 8EK-2191A-00-00 | . .Bulkhead | ||
| 8EK-12440-00-00 | . Heat Exchanger Assy | ||
| 50 | 90267-48016-00 | . Rivet, Blind (4.8X16.4 Yellow UN | 50 |
| 2 | 90267-48057-00 | . Rivet, Blind | 2 |
| 8EK-21950-09-00 | Rear Frame Comp | ||
| 2 | 8CR-2198J-00-00 | . Cover 3 | 2 |
| 8EK-21960-09-00 | Footrest Comp. 1 | ||
| 8EK-21970-09-00 | Footrest Comp. 2 | ||
| 8EK-W2195-00-00 | Frame Connection Kit | ||
| 2 | 8CR-21943-01-00 | . Bracket, Main Track 1 | 2 |
| 2 | 8CR-21953-00-00 | . Bracket, Main Track 2 | 2 |
| 1 | 8CR-2196F-00-00 | . Bracket 3 | 1 |
| 1 | 8EK-21920-00-00 | . . Housing, Reinf Sub-Assy (L | 1 |
| 3 | 8CR-21939-00-00 | . Bracket, Chain Housing | 3 |
| 2 | 8DN-21977-00-00 | . .Clamp, Fuel Pipe | 2 |
| 1 | 8EK-21917-00-00 | . .Panel, Sub Frame 6 | 1 |
| 1 | 8EK-21918-00-00 | . .Panel, Sub-Frame 7 | 1 |
| 4 | 90267-48176-00 | . .Rivet, Blind (4.8X17 Yellow) | 4 |
| 1 | 8EK-2194J-00-00 | . .Stay, Muffler | 1 |
| 50 | 90267-47186-00 | . .Rivet, Blind (4.7X16.4 Black UR UN | 50 |
| 10 | 90267-47197-00 | . Rivet, Blind (4.7X19.5 Silver UR UN | 10 |
| 1 | 8CR-2198G-01-00 | . .Cover 2 | 1 |
| 2 | 90461-05003-00 | . Clamp | 2 |
| 1 | 90461-06142-00 | . Clamp | 1 |
| 90462-05059-00 | . Clamp | ||
| 1 | 90461-10148-00 | . Clamp | 1 |
| 8DF-21941-00-00 | Pipe, Pivot 1 | ||
| 1 | 8DF-21951-00-00 | Pipe, Pivot 2 | 1 |
| 16 | 90269-07080-00 | Rivet | 16 |
| 8DN-2198F-00-00 | Cover 1 | ||
| 2 | 8CR-2195E-00-00 | Plate, Steering Bracket 1 | 2 |
| 10 | 90267-47197-00 | Rivet, Blind (4.7X19.5 Silver) | 10 |
| 1 | 8EK-21912-00-00 | Panel, Sub Frame 1 | 1 |
| 8EK-23788-00-00 | Plate, Back Up | ||
| 8CR-77128-00-00 | Stay 4 | ||
| 8EK-2196A-00-00 | Frame Under 1 | ||
| 8EK-2196E-00-00 | Frame, Under 2 | ||
| 8EK-21972-00-00 | Bracket, Guard Fitting | ||
| 34 | 90267-48018-00 | Rivet, Blind (4.8X18.6 Black) | 34 |
| 16 | 90201-05033-00 | Washer, Plate | 16 |
| 18 | 90267-47187-00 | Rivet, Blind (4.7X16.4 Black) | 18 |
| 1 | 8EK-77512-00-00 | Bumper, Front 2 | 1 |
| 4 | 95807-08020-00 | Bolt, Flange | 4 |
| 8EK-21949-00-00 | Bracket, Front | ||
| 1 | 8EK-21959-00-00 | Bracket, Front Bumper | 1 |
| 4 | 95607-08200-00 | Nut, Self-Locking | 4 |
| 4 | 95807-08035-00 | Bolt, Flange | 4 |
| 4 | 90387-08015-00 | Collar | 4 |
| 4 | 95707-08500-00 | Nut, Flange | 4 |
| 2 | 90267-48018-00 | Rivet, Blind (4.8X18.6 Black) | 2 |
| 1 | 8DJ-14728-00-00 | Protector, Muffler 2 | 1 |
| 8EK-21923-00-00 | Reineforcement, Frame Rear 1 | ||
| 9 | 90267-47195-00 | Rivet, Blind (4.7X16.4 Yellow) | 9 |
| 8CR-21973-00-00 | Hook | ||
| 3 | 90267-48169-00 | .Rivet, Blind (4.8X14.1 Black) | 3 |
| 1 | 8EK-21921-00-00 | Reineforcement, Frame Rear 1 | 1 |
| 6 | 90105-10617-00 | Bolt, Flange | 6 |
| 1 | 95827-10065-00 | Bolt, Flange | 1 |
| 1 | 95707-10500-00 | Nut, Flange | 1 |
| 3 | 92907-10200-00 | Washer, Plain | 3 |
| 3 | 90338-44093-00 | Plug | 3 |
| 1 | 90338-30256-00 | Plug | 1 |
| 1 | 8DF-21998-10-00 | Spacer | 1 |
| 1 | 8EK-77261-00-00 | Lining, Shroud 1 | 1 |
| 1 | 8EK-77262-00-00 | Lining, Shroud 2 | 1 |
| 1 | 8EK-77263-00-00 | Lining, Shroud 3 | 1 |
| 1 | 8EK-77264-00-00 | Lining, Shroud 4 | 1 |
| 1 | 8EK-77265-00-00 | Lining, Shroud 5 | 1 |
| 8EK-77266-00-00 | Lining, Shroud 6 | ||
| 1 | 8EK-77267-00-00 | Lining, Shroud 7 | 1 |
| 1 | 8EK-77268-00-00 | Lining, Shroud 8 | 1 |
| 1 | 8EK-77269-00-00 | Lining, Shroud 9 | 1 |
| 8DN-21978-00-00 | Protector, Frame | ||
| 90267-50004-00 | Rivet, Blind |
