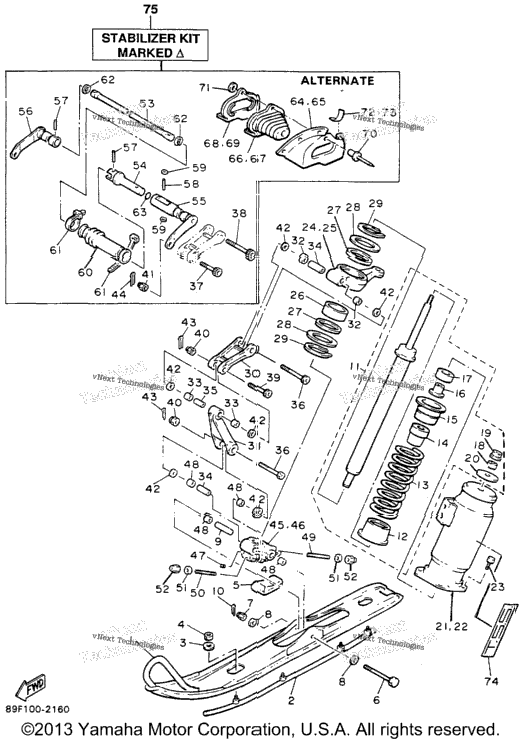

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 88F-23710-01-00 | Ski 1 (88F-23710-00-00) | ||
| VMX-23731-01-XX | Runner, 1 (8M6-23731-01-00) | ||
| 8 | 92990-08600-00 | Washer, Plate | 8 |
| 8 | 95611-08100-00 | Nut, U | 8 |
| 2 | 88T-23743-00-00 | Stopper 1 | 2 |
| 2 | 90102-10050-00 | Bolt, With Hole | 2 |
| 2 | 95706-10300-00 | Nut, Nylon | 2 |
| 4 | 92906-10600-00 | Washer | 4 |
| 2 | 90387-106J3-00 | Collar | 2 |
| 2 | 91490-20020-00 | Pin, Cotter | 2 |
| 87F-2376A-00-00 | Absorber Assy 1 | ||
| 1 | 82M-23777-00-00 | . .Seat, Spring 2 | 1 |
| 90501-787F4-00 | . Spring, Compression | ||
| 87F-22493-00-00 | . Bump, Stop | ||
| 8L0-23788-00-00 | . .Plate, Back Up | ||
| 1 | 90387-084R1-00 | . .Collar | 1 |
| 1 | 82M-23779-00-00 | . .Washer | 1 |
| 90170-08220-00 | . .Nut | ||
| 1 | 95333-08600-00 | . Nut (6L2) | 1 |
| 1 | 90201-080L1-00 | . .Washer, Plate | 1 |
| 87F-2376J-00-00 | Holder, Absorber (L.H) UR RR | ||
| 89H-2376J-00-00 | Holder, Absorber (L.H) UR YB | ||
| 87F-2377J-00-00 | Holder, Absorber 2 (R.H) UR RR | ||
| 87H-2377J-00-00 | Holder, Absorber (Rh) UR YB | ||
| 8 | 97011-06020-00 | Bolt | 8 |
| 87F-23851-01-00 | Arm, Outside 1 | ||
| 87F-23852-01-00 | Arm, Outside 2 | ||
| 2 | 90384-53175-00 | Bush, Bimetal Formed | 2 |
| 4 | 93109-53036-00 | O-Ring | 4 |
| 4 | 90201-536A1-00 | Washer, Plate (T=1.0) UR | 4 |
| 4 | 90201-535H6-00 | Washer, Plate (T=2.0) UR | 4 |
| 4 | 93410-52061-00 | Circlip | 4 |
| 2 | 8L0-2382E-01-00 | Arm, Front 1 | 2 |
| 2 | 8L0-2382F-00-00 | Arm, Front 2 | 2 |
| 4 | 90384-14091-00 | Bush, Bimetal Formed | 4 |
| 4 | 90384-14096-00 | Bush, Bimetal Formed | 4 |
| 4 | 90387-10089-00 | Collar | 4 |
| 2 | 90387-100A4-00 | Collar | 2 |
| 4 | 90102-10039-00 | Bolt, With Hole | 4 |
| 90110-10172-00 | Bolt, Hexagon Socket Head | ||
| 90110-10174-00 | Bolt, Hexagon Socket Head | ||
| 2 | 90110-10173-00 | Bolt, Hex Socket Head | 2 |
| 6 | 95706-10300-00 | Nut, Nylon | 6 |
| 4 | 95706-10300-00 | Nut, Nylon | 4 |
| 12 | 90202-14037-00 | Washer, Plate | 12 |
| 6 | 91490-20020-00 | Pin, Cotter | 6 |
| 4 | 91490-20020-00 | Pin, Cotter | 4 |
| 1 | 84M-2376E-00-00 | Bracket 1 | 1 |
| 1 | 84M-2377E-00-00 | Bracket 2 | 1 |
| 2 | 90113-06039-00 | Bolt, Set | 2 |
| 8 | 90384-14091-00 | Bush, Bimetal Formed | 8 |
| 2 | 95611-08655-00 | Bolt, Stud | 2 |
| 2 | 95611-08640-00 | Bolt, Stud | 2 |
| 4 | 92901-08600-00 | Washer | 4 |
| 4 | 95712-08300-00 | Nut, Lock | 4 |
| 87F-2386E-00-00 | Bar, Stabilizer Front | ||
| 82M-2386F-00-00 | Link, Stabilizer Front | ||
| 86M-2385L-00-00 | Joint, Stabilizer 1 | ||
| 86M-2385M-00-00 | Joint, Stabilizer 2 | ||
| 93605-20225-00 | Pin, Dowel | ||
| 93605-25223-00 | Pin, Dowel | ||
| 82M-2386R-00-00 | Slider | ||
| 82M-2386H-00-00 | Cover, Stabilizer Front | ||
| 2 | 12R-82591-00-00 | Band | 2 |
| 2 | 93410-23056-00 | Circlip | 2 |
| 93210-15751-00 | O-Ring | ||
| 87F-2195E-00-00 | Plate, Strg Bracket 1 | ||
| 87F-2195F-00-00 | Plate, Strg Bracket 2 | ||
| 82M-2198F-00-00 | Cover 1 (L.H) | ||
| 82M-2198G-00-00 | Cover 2 (R.H) | ||
| 82M-2195E-00-00 | Plate, String Bracket 1 (L, H) | ||
| 82M-2195F-00-00 | Plate, String Bracket 2 (R, H) | ||
| 12 | 90267-40076-00 | Rivet, Blind | 12 |
| 12 | 90201-047A7-00 | Washer, Plate | 12 |
| 87F-7717E-00-00 | Tape 1 | ||
| 87F-7717F-00-00 | Tape 2 | ||
| 89H-77371-00-00 | Emblem 15 UR FOR YB | ||
| 89F-77371-00-00 | Emblem 15 | ||
| 87F-W0051-00-KT | Stabilizer Kit (Ref. #51~74) AP MARKED W/L |
