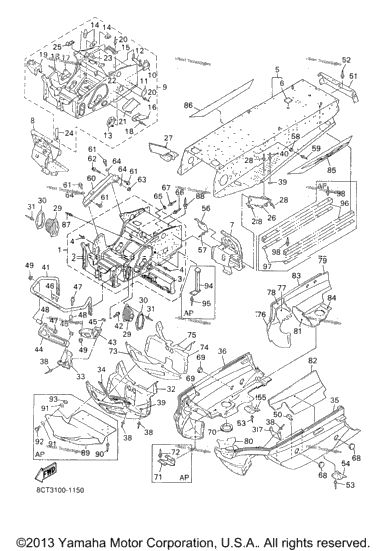

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 8CR-21940-05-00 | Front Frame Comp (USA) | ||
| 1 | 8CR-2191A-02-00 | . Bulkhead (USA) | 1 |
| 8CR-12440-03-00 | . Heat Exchanger Assy (USA) | ||
| 20 | 90267-48176-00 | . Rivet, Blind (4.8X17 Yellow) UR UN (USA) | 20 |
| 50 | 90267-48177-00 | . Rivet, Blind (4.8X14 Yellow) UR UN (USA) | 50 |
| 10 | 90267-48015-00 | . Rivet, Blind UR UN (USA) | 10 |
| 8CJ-21950-09-00 | Rear Frame Comp (USA) | ||
| 1 | 8CR-2198J-00-00 | . .Cover 3 (USA) | 1 |
| 8ED-21960-09-00 | Footrest Comp. 1 (USA) | ||
| 8ED-21970-09-00 | Footrest Comp. 2 (USA) | ||
| 8CR-W2195-03-00 | Frame Connection Kit (USA) | ||
| 2 | 8CR-21943-01-00 | . .Bracket, Main Track 1 (USA) | 2 |
| 2 | 8CR-21953-00-00 | . Bracket, Main Track 2 (USA) | 2 |
| 1 | 8CR-2196F-00-00 | . Bracket 3 (USA) | 1 |
| 8CR-21920-00-00 | . Housing, Reinf Sub-Assy (L.H) (USA) | ||
| 3 | 8CR-21939-00-00 | . Bracket, Chain Housing (USA) | 3 |
| 2 | 8CR-21977-00-00 | . Clamp, Fuel Pipe (USA) | 2 |
| 1 | 8CR-21917-00-00 | . Panel, Sub Frame 6 (USA) | 1 |
| 1 | 8CR-21918-00-00 | . Panel, Sub-Frame 7 (USA) | 1 |
| 4 | 90267-48176-00 | . Rivet, Blind (4.8X17 Yellow) (USA) | 4 |
| 1 | 8CR-2194J-00-00 | . Stay, Muffler (USA) | 1 |
| 50 | 90267-47186-00 | . Rivet, Blind (4.7X16.4 Black) UR UN (USA) | 50 |
| 10 | 90267-47197-00 | . Rivet, Blind (4.7X19.5 Silver UR UN (USA) | 10 |
| 1 | 8CR-2198G-00-00 | . Cover 2 (USA) | 1 |
| 2 | 90461-05003-00 | . Clamp (USA) | 2 |
| 1 | 90461-06142-00 | . Clamp (USA) | 1 |
| 90462-05059-00 | . Clamp (USA) | ||
| 1 | 90461-10148-00 | . Clamp (USA) | 1 |
| 8DF-21941-00-00 | Pipe, Pivot 1 (USA) | ||
| 1 | 8DF-21951-00-00 | Pipe, Pivot 2 (USA) | 1 |
| 16 | 90269-07080-00 | Rivet (USA) | 16 |
| 8CR-2198F-00-00 | Cover 1 (USA) | ||
| 2 | 8CR-2195E-00-00 | Plate, Steering Bracket 1 (USA) | 2 |
| 10 | 90267-48165-00 | Rivet, Blind (USA) | 10 |
| 8CR-21912-11-00 | Panel, Sub Frame 1 (USA) | ||
| 8CR-23788-11-00 | Plate, Back Up (USA) | ||
| 8CR-77128-00-00 | Stay 4 (USA) | ||
| 8CR-2196A-12-00 | Frame Under 1 (USA) | ||
| 8CR-2196E-12-00 | Frame, Under 2 (USA) | ||
| 8CR-21972-00-00 | Bracket, Guard Fitting (USA) | ||
| 39 | 90267-48141-00 | Rivet, Blind (USA) | 39 |
| 18 | 90201-05033-00 | Washer, Plate (USA) | 18 |
| 14 | 90267-47187-00 | Rivet, Blind (4.7X16.4 Black) (USA) | 14 |
| 1 | 8CR-77512-00-00 | Bumper, Front 2 (USA) | 1 |
| 4 | 95807-08020-00 | Bolt, Flange (USA) | 4 |
| 1 | 8CR-21949-10-00 | Bracket, Front (USA) | 1 |
| 8CR-21959-10-00 | Bracket, Front Bumper (USA) | ||
| 4 | 95607-08200-00 | Nut, Self-Locking (USA) | 4 |
| 2 | 8CR-2196M-00-00 | Bracket, 5 (USA) | 2 |
| 4 | 95807-08040-00 | Bolt, Flange (USA) | 4 |
| 4 | 90387-0810F-00 | Collar (USA) | 4 |
| 4 | 95707-08500-00 | Nut, Flange (USA) | 4 |
| 3 | 90465-08146-00 | Clamp (USA) | 3 |
| 8CR-21923-02-00 | Reineforcement, Frame Rear 1 (USA) | ||
| 9 | 90267-47195-00 | .Rivet, Blind(4.7X16.4 Yellow) (USA) | 9 |
| 8 | 90267-48141-00 | Rivet, Blind (USA) | 8 |
| 1 | 8CR-21978-00-00 | Protector, Frame (USA) | 1 |
| 1 | 8CR-2197B-00-00 | Protector, Frame (USA) | 1 |
| 8CR-21973-00-00 | Hook (USA) | ||
| 3 | 90267-48169-00 | Rivet, Blind (4.8X14.1 Black) (USA) | 3 |
| 4 | 81K-2471F-00-00 | Button (USA) | 4 |
| 90267-40069-00 | Rivet, Blind (USA) | ||
| 8CR-21921-01-00 | Reineforcement, Frame Rear 1 (USA) | ||
| 6 | 90105-10617-00 | Bolt, Flange (USA) | 6 |
| 1 | 95827-10065-00 | Bolt, Flange (USA) | 1 |
| 1 | 95707-10500-00 | Nut, Flange (USA) | 1 |
| 3 | 92907-10200-00 | Washer, Plain (USA) | 3 |
| 2 | 90201-05033-00 | Washer, Plate (USA) | 2 |
| 3 | 90267-48177-00 | Rivet, Blind (4.8X14 Yellow) (USA) | 3 |
| 2 | 90267-47187-00 | Rivet, Blind (4.7X16.4 Black) (USA) | 2 |
| 90338-44270-00 | Plug (USA) | ||
| 90338-30268-00 | Plug (USA) | ||
| 1 | 8DF-21998-00-00 | Spacer (USA) | 1 |
| 1 | 8CS-2197C-00-00 | Protector, Frame 3 AP (USA) | 1 |
| 4 | 90267-48141-00 | Rivet, Blind AP (USA) | 4 |
| 8CR-77261-00-00 | Lining, Shroud 1 (USA) | ||
| 1 | 8CR-77262-00-00 | Lining, Shroud 2 (USA) | 1 |
| 8CR-77263-00-00 | Lining, Shroud 3 (USA) | ||
| 1 | 8CR-77264-00-00 | Lining, Shroud 4 (USA) | 1 |
| 8CR-77265-00-00 | Lining, Shroud 5 (USA) | ||
| 8CR-77266-00-00 | Lining, Shroud 6 (USA) | ||
| 1 | 8CR-77267-01-00 | Lining, Shroud 7 (USA) | 1 |
| 1 | 8CR-77268-00-00 | Lining, Shroud 8 (USA) | 1 |
| 8CR-77269-00-00 | Lining, Shroud 9 (USA) | ||
| 1 | 8CR-77271-00-00 | Damper, Noise 11 (USA) | 1 |
| 8CR-7717J-00-00 | Tape, 5 (USA) | ||
| 1 | 8CR-77165-00-00 | Trim 1 (USA) | 1 |
| 8EA-7711G-01-00 | Graphic 7 (USA) | ||
| 8EA-7711H-01-00 | Graphic 8 (USA) | ||
| 6 | 90267-48177-00 | Rivet, Blind (4.8X14 Yellow) (USA) | 6 |
| 2 | 90267-47186-00 | Rivet, Blind (4.7X16.4 Black) (USA) | 2 |
| 8CV-2197E-00-00 | Protector, Frame AP (USA) | ||
| 4 | 90267-48174-00 | Rivet, Blind AP (USA) | 4 |
| 4 | 90201-06747-00 | Washer, Plate AP (USA) | 4 |
| 2 | 98907-06025-00 | Screw, Bind AP (USA) | 2 |
| 2 | 95607-06100-00 | Nut, U AP (USA) | 2 |
| 8EA-2197E-00-00 | Protector, Frame AP (USA) | ||
| 6 | 90267-48176-00 | Rivet, Blind (4.8X17 Yellow) AP (USA) | 6 |
| 8DF-21978-00-00 | Protector, Frame AP (USA) | ||
| 2 | 8DF-21972-00-00 | Bracket, Guard Fitting AP (USA) | 2 |
| 18 | 90267-47197-00 | Rivet, Blind (4.7X19.5 Silver) AP (USA) | 18 |
