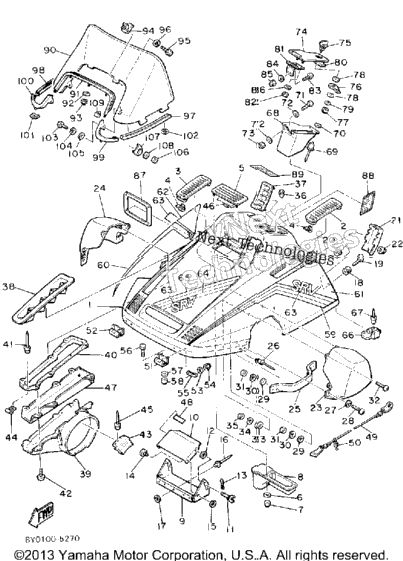

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 8V9-W7711-01-00 | Shroud Assembly | ||
| 8L9-77133-00-00 | Louver 3 | ||
| 8L9-77134-00-00 | Louver 4 | ||
| 90468-05094-00 | Clip | ||
| 8V9-77109-00-00 | Louver 5 | ||
| 4 | 90201-05029-00 | Washer, Plate | 4 |
| 4 | 95701-05300-00 | Nut, Nylon | 4 |
| 8K4-7712E-00-00 | Insulator | ||
| 8Y0-77125-00-00 | Stay 1 | ||
| 8Y0-77126-00-00 | Stay 2 | ||
| 2 | 90122-05022-00 | Bolt, Wing | 2 |
| 2 | 90202-05088-00 | Washer, Plate | 2 |
| 2 | 90468-10003-00 | Clip | 2 |
| 90249-05187-00 | Pin | ||
| 2 | 99080-04600-00 | Circlip | 2 |
| 3 | 90267-48053-00 | Rivet, Blind | 3 |
| 3 | 90201-04325-00 | Washer, Plate | 3 |
| 8M6-77175-00-00 | Holder, Latch | ||
| 2 | 98906-06030-00 | Screw, Bind | 2 |
| 2 | 95701-06500-00 | Nut, With Washer | 2 |
| 8V8-77185-00-00 | Plate 1 | ||
| 4 | 95701-04500-00 | Nut, Flange | 4 |
| 8L0-77121-00-00 | Hood 1 | ||
| 8L0-77122-00-00 | Hood 2 | ||
| 8L0-77125-00-00 | Stay 1 | ||
| 4 | 90267-48014-00 | Rivet, Blind (4.8X15.1 Black) | 4 |
| 4 | 90201-05721-00 | Washer, Plate | 4 |
| 4 | 90154-05005-00 | Screw, Binding | 4 |
| 4 | 92990-05100-00 | .Washer, Spring | 4 |
| 95380-05600-00 | .Nut | ||
| 8 | 98906-06016-00 | Screw, Bind | 8 |
| 90201-06M08-00 | Washer, Plate | ||
| 8 | 92995-06100-00 | Washer, Spring | 8 |
| 8 | 95380-06600-00 | .Nut, Hexagon | 8 |
| 8V9-77108-00-00 | Louver 6 | ||
| 8V9-77131-00-00 | Louver 1 | ||
| 8V9-77194-00-00 | Duct | ||
| 8V9-77153-00-00 | Plate, Back Up 1 | ||
| 8 | 90267-40105-00 | Rivet, Blind | 8 |
| 6 | 98906-06010-00 | Screw, Bind | 6 |
| 8Y0-77515-00-00 | Bush, Rubber 1 | ||
| 90468-05138-00 | Clip | ||
| 4 | 90269-05039-00 | Rivet | 4 |
| 8Y0-77185-00-00 | Plate 1 | ||
| 8Y0-77186-00-00 | Plate 2 | ||
| 8Y0-77762-00-00 | Label, Warning 2 | ||
| 8K4-77118-00-00 | Stopper, Shroud | ||
| 1 | 838-77159-00-00 | Clamp, Rod | 1 |
| 8L8-77140-00-00 | Hinge Assembly | ||
| 8L8-7714A-00-00 | Hinge Assembly 2 | ||
| 90201-067A6-00 | Washer, Plate | ||
| 4 | 95701-06300-00 | Nut, Nylon | 4 |
| 8Y0-77525-00-00 | Washer 1 | ||
| 2 | 97026-06014-00 | Bolt | 2 |
| 2 | 90201-062A8-00 | Washer, Plate | 2 |
| 2 | 95706-06300-00 | Nut, Nylon | 2 |
| 8Y0-77163-00-00 | Ornament 1 | ||
| 8Y0-77164-00-00 | Ornament 2 | ||
| 8Y0-77169-00-00 | Ornament 3 | ||
| 8Y0-77113-00-00 | Ornament 4 | ||
| 8V9-77355-00-00 | Emblem 5 | ||
| 8Y0-77356-00-00 | Emblem 6 | ||
| 8Y0-77357-00-00 | Emblem 7 | ||
| 8K4-77188-00-00 | Stopper | ||
| 4 | 90267-48086-00 | Rivet, Blind (4.8X19 Black) | 4 |
| 8K4-77391-00-00 | Luggage Box | ||
| 90267-48078-00 | Rivet, Blind | ||
| 2 | 90201-04325-00 | Washer, Plate | 2 |
| 2 | 98516-06020-00 | Screw, Pan Head | 2 |
| 4 | 90201-06059-00 | Washer, Plate | 4 |
| 2 | 95701-06300-00 | Nut, Nylon | 2 |
| 8V9-77392-00-00 | Cover, Luggage Box | ||
| 8L9-77324-00-00 | Knob | ||
| 8K4-77328-00-00 | Lever, Arm Fitting | ||
| 1 | 95706-05300-00 | Nut, Nylon | 1 |
| 2 | 90201-10119-00 | Washer, Plate | 2 |
| 1 | 90201-05725-00 | Washer, Plate | 1 |
| 1 | 8K4-77374-00-00 | Damper 2 | 1 |
| 8K4-77470-00-00 | Hinge Assembly | ||
| 2 | 95306-05800-00 | Nut (Crown) | 2 |
| 2 | 98586-05016-00 | Screw, Pan Head | 2 |
| 2 | 90201-05029-00 | Washer, Plate | 2 |
| 2 | 95701-05300-00 | Nut, Nylon | 2 |
| 2 | 92906-05200-00 | Washer | 2 |
| 8K4-77165-00-00 | Trim 1 | ||
| 8U7-77743-00-00 | Indicator 3 | ||
| 8Y0-77761-00-00 | Label, Warning 1 U.R. | ||
| 8L0-77210-00-XX | Windshield (8L0-77210-00) | ||
| 8L0-77214-00-00 | Trim, Lower | ||
| 92901-05600-00 | Washer, Plate | ||
| 3 | 95701-05300-00 | Nut, Nylon | 3 |
| 8K4-77222-00-00 | Bracket, Wndshld R | ||
| 1 | 97011-06010-00 | Bolt (97002-06010) | 1 |
| 1 | 92995-06100-00 | Washer, Spring | 1 |
| 8L0-77215-00-00 | Trim 3 | ||
| 8L0-77216-00-00 | Trim 4 | ||
| 8L0-77225-00-00 | Trim 5 | ||
| 1 | 8L0-77226-00-00 | Trim 6 | 1 |
| 2 | 90183-05019-00 | Nut, Spring | 2 |
| 4 | 82H-77223-00-00 | Fastner | 4 |
| 97313-05016-00 | Bolt, Hexagon | ||
| 2 | 92990-05100-00 | .Washer, Spring | 2 |
| 1 | 90201-05033-00 | Washer, Plate | 1 |
| 8L9-77116-00-00 | Washer, Special | ||
| 2 | 90201-06643-00 | Washer, Plate | 2 |
| 8L0-77136-00-00 | Clamp 2 |
