Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

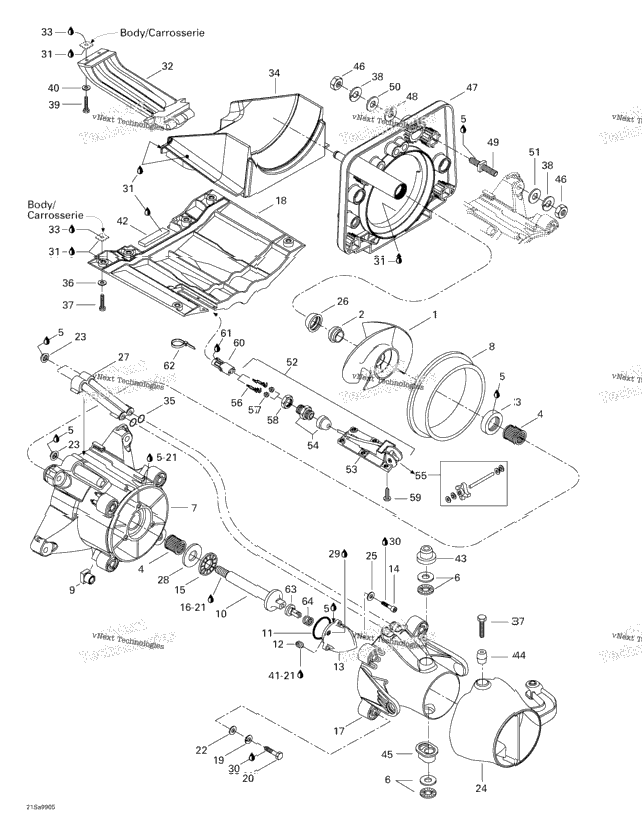

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204160072 | Stainless Steel Impeller Ass'y | ||
| 1 | 271000516 | Impeller Boot | 1 |
| 1 | 293200025 | Double Lip Seal | 1 |
| 2 | 293350017 | Needle Bearing | 2 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 211200002 | Thrust Washer | ||
| 204160055 | IMPELLER HOUSING ASS'Y Includes 7 - 8. | ||
| 1 | 271000290 | Wear Ring | 1 |
| 4 | 211100033 | Square Nut M8 | 4 |
| 1 | 271000291 | IMPELLER SHAFT | 1 |
| 1 | 293300011 | O-Ring | 1 |
| 1 | 211500001 | Pipe Plug Socket Head 1/8-27 Npt | 1 |
| 271000895 | IMPELLER COVER | ||
| 205052060 | Socket Head Screw M5 X 20 | ||
| 1 | 293350019 | BEARING THRUST | 1 |
| 413705200 | Loctite 262, 50 ml | ||
| 271000851 | Venturi Ass'y | ||
| 271000712 | Riding Plate | ||
| 4 | 234181601 | Lock Washer 8 mm, Stainless | 4 |
| 207087060 | HEX. SCREW M8 X 70 | ||
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 4 | 293050001 | Flat Washer M8.5 x 18 | 4 |
| 3 | 293250084 | Watertight Seal | 3 |
| 271000889 | Steering Nozzle | ||
| 3 | 234051600 | Flat Washer M5, Stainless | 3 |
| 1 | 271000517 | Impeller Ring | 1 |
| 271000972 | Water Outlet | ||
| 1 | 293350020 | THRUST WASHER | 1 |
| 293600011 | Redline Pump Oil, 75W90, 12 x 6 oz | ||
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 1 | 293800053 | Sealant Right Stuff 26015, 7 oz | 1 |
| 271000732 | INLET GRATE | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 271000576 | Shoe | ||
| 2 | 293300013 | O-Ring | 2 |
| 6 | 234081600 | Stainless, Flat Washer 8 mm | 6 |
| 8 | 207383060 | Hex. Screw M8 X 30, Scotch Grip | 8 |
| 8 | 234101601 | Helicoidal Lock Washer M10 | 8 |
| 2 | 207162560 | Hex. Screw M6 X 25 | 2 |
| 2 | 234061600 | Stainless, Flat Washer M6 | 2 |
| 1 | 219704454 | Was 293800013 Loctite 56765 | 1 |
| 1 | 219704364 | Neoprene Seal (1PAC=3M) | 1 |
| 1 | 293900001 | Venturi Bushing | 1 |
| 2 | 271000122 | Steering Nozzle Sleeve | 2 |
| 1 | 293900010 | Plastic Bushing | 1 |
| 8 | 232001600 | HEX. NUT M10 | 8 |
| 1 | 271000966 | PUMP SUPPORT | 1 |
| 1 | 272000053 | Shim, 0.3 mm | 1 |
| 4 | 271000693 | Stud | 4 |
| 6 | 234001600 | Flat Washer 10 mm, Stainless | 6 |
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 278000970 | Speed Sensor Ass’Y Includes 52 - 57. | ||
| XXXX | Not Available As Spare Part - Sensor Base | ||
| 1 | 293710031 | ELECTRIC CONNECTION | 1 |
| 295500108 | Paddle Wheel Kit | ||
| XXXX | Not Available As Spare Part - Male Terminal | ||
| XXXX | Not Available As Spare Part - Wire Seal | ||
| 1 | 293710032 | LOCKING NUT | 1 |
| 6 | 250000020 | Phillips Screw M5 X 10 | 6 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 271000978 | PUSHER | 1 |
| 271000973 | SPRING |
