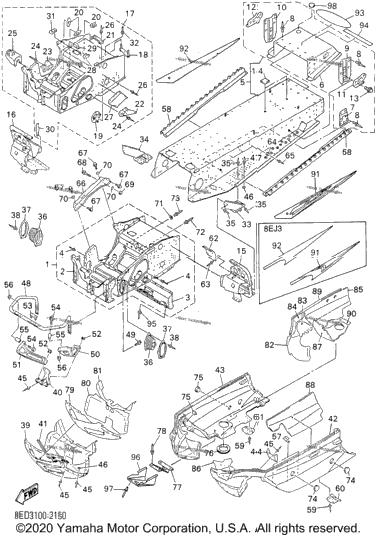

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 8DG-21940-07-00 | Front Frame Comp | ||
| 1 | 8CR-2191A-02-00 | . Bulkhead | 1 |
| 8DG-12440-01-00 | . Heat Exchanger Assy | ||
| 10 | 90267-48015-00 | . .Rivet, Blind UR UN | 10 |
| 70 | 90267-48016-00 | . Rivet, Blind (4.8X16.4 Yellow UR UN | 70 |
| 8EJ-21950-09-00 | Rear Frame Comp | ||
| 8ED-21916-10-00 | . .Panel, Sub Frame 5 | ||
| 8ED-21943-00-00 | . .Bracket, Main Track 1 | ||
| 46 | 90267-47195-00 | . Rivet, Blind(4.7X16.4 Yellow) | 46 |
| 1 | 8ED-21944-00-00 | . Bracket, Rr. Track Suspention | 1 |
| 1 | 8ED-21954-00-00 | . Bracket, Rr. Track Suspention | 1 |
| 1 | 8ED-21988-00-00 | . .Patch 8 | 1 |
| 1 | 8ED-21989-00-00 | . .Patch 9 | 1 |
| 4 | 95827-08016-00 | . Bolt, Flange | 4 |
| 2 | 8CR-2198J-00-00 | . Cover 3 | 2 |
| 8ED-21960-09-00 | Footrest Comp. 1 | ||
| 8ED-21970-09-00 | Footrest Comp. 2 | ||
| 8ED-W2195-00-00 | Frame Connection Kit | ||
| 1 | 8CR-2196F-00-00 | . Bracket 3 | 1 |
| 8CR-21920-00-00 | . Housing, Reinf Sub-Assy (L.H) | ||
| 3 | 8CR-21939-00-00 | . Bracket, Chain Housing | 3 |
| 2 | 8CR-21977-00-00 | . Clamp, Fuel Pipe | 2 |
| 1 | 8CR-21917-00-00 | . Panel, Sub Frame 6 | 1 |
| 1 | 8CR-21918-00-00 | . Panel, Sub-Frame 7 | 1 |
| 4 | 90267-48176-00 | . .Rivet, Blind (4.8X17 Yellow) | 4 |
| 1 | 8CR-2194J-00-00 | . Stay, Muffler | 1 |
| 50 | 90267-47186-00 | . Rivet, Blind (4.7X16.4 Black) UN | 50 |
| 1 | 8CR-2198G-00-00 | . Cover 2 | 1 |
| 2 | 90461-05003-00 | . Clamp | 2 |
| 1 | 90461-06142-00 | . Clamp | 1 |
| 90462-05059-00 | . .Clamp | ||
| 1 | 90461-10148-00 | . Clamp | 1 |
| 10 | 90267-47197-00 | . .Rivet, Blind(4.7X19.5 Silver | 10 |
| 8DF-21941-00-00 | Pipe, Pivot 1 | ||
| 1 | 8DF-21951-00-00 | Pipe, Pivot 2 | 1 |
| 16 | 90269-07080-00 | Rivet | 16 |
| 8CR-2198F-00-00 | Cover 1 | ||
| 2 | 8CR-2195E-00-00 | Plate, Steering Bracket 1 | 2 |
| 10 | 90267-47197-00 | .Rivet, Blind(4.7X19.5 Silver) | 10 |
| 8CR-21912-11-00 | Panel, Sub Frame 1 (8ED3) | ||
| 8CR-21912-01-00 | Panel, Sub Frame 1 (8EJ3) | ||
| 8CR-23788-11-00 | Plate, Back Up | ||
| 8CR-77128-00-00 | Stay 4 | ||
| 8CR-2196A-03-00 | Frame Under 1 (8EJ3) | ||
| 8CR-2196A-12-00 | Frame Under 1 (8ED3) | ||
| 8CR-2196E-12-00 | Frame, Under 2 (8ED3) | ||
| 8CR-2196E-03-00 | Frame, Under 2 (8EJ3) | ||
| 8CR-21972-00-00 | Bracket, Guard Fitting | ||
| 39 | 90267-48018-00 | Rivet, Blind (4.8X18.6 Black) | 39 |
| 18 | 90201-05033-00 | Washer, Plate | 18 |
| 14 | 90267-47187-00 | Rivet, Blind (4.7X16.4 Black) | 14 |
| 1 | 8CR-77512-00-00 | Bumper, Front 2 | 1 |
| 4 | 95807-08020-00 | Bolt, Flange | 4 |
| 1 | 8CR-21949-10-00 | Bracket, Front | 1 |
| 8CR-21959-10-00 | Bracket, Front Bumper | ||
| 4 | 95607-08200-00 | .Nut, Self-Locking | 4 |
| 2 | 8CR-2196M-00-00 | Bracket, 5 | 2 |
| 4 | 95807-08040-00 | Bolt, Flange | 4 |
| 4 | 90387-0810F-00 | Collar | 4 |
| 4 | 95707-08500-00 | Nut, Flange | 4 |
| 3 | 90465-08146-00 | Clamp | 3 |
| 8ED-2192A-10-00 | Plate, Anti-Skid | ||
| 8 | 90267-48018-00 | Rivet, Blind (4.8X18.6 Black) | 8 |
| 1 | 8CR-21978-00-00 | Protector, Frame | 1 |
| 1 | 8CR-2197B-00-00 | Protector, Frame | 1 |
| 8CR-21973-00-00 | Hook | ||
| 3 | 90267-48169-00 | .Rivet, Blind (4.8X14.1 Black) | 3 |
| 6 | 81K-2471F-00-00 | Button | 6 |
| 90267-40069-00 | Rivet, Blind | ||
| 8CR-21921-01-00 | Reineforcement, Frame Rear 1 | ||
| 6 | 90105-10617-00 | Bolt, Flange | 6 |
| 1 | 95827-10065-00 | Bolt, Flange | 1 |
| 1 | 95707-10500-00 | Nut, Flange | 1 |
| 3 | 92907-10200-00 | Washer, Plain | 3 |
| 2 | 90201-05033-00 | Washer, Plate | 2 |
| 3 | 90267-48177-00 | .Rivet, Blind (4.8X14 Yellow) | 3 |
| 2 | 90267-47187-00 | Rivet, Blind (4.7X16.4 Black) | 2 |
| 3 | 90338-44093-00 | Plug (8EJ3) | 3 |
| 90338-44270-00 | Plug (8ED3) | ||
| 3 | 90338-30256-00 | Plug (8EJ3) | 3 |
| 90338-30268-00 | Plug (8ED3) | ||
| 1 | 8DF-21998-00-00 | Spacer | 1 |
| 8ED-2197C-00-00 | Protector, Frame 3 | ||
| 4 | 90267-48018-00 | Rivet, Blind (4.8X18.6 Black) | 4 |
| 8CR-77261-00-00 | Lining, Shroud 1 | ||
| 1 | 8CR-77262-00-00 | Lining, Shroud 2 | 1 |
| 8CR-77263-00-00 | Lining, Shroud 3 | ||
| 1 | 8CR-77264-00-00 | Lining, Shroud 4 | 1 |
| 8CR-77265-00-00 | Lining, Shroud 5 | ||
| 8CR-77266-00-00 | Lining, Shroud 6 | ||
| 1 | 8CR-77267-01-00 | Lining, Shroud 7 | 1 |
| 1 | 8CR-77268-00-00 | Lining, Shroud 8 | 1 |
| 8CR-77269-00-00 | Lining, Shroud 9 | ||
| 1 | 8CR-77271-00-00 | Damper, Noise 11 | 1 |
| 8CR-7717J-00-00 | Tape, 5 | ||
| 1 | 8CR-77165-00-00 | Trim 1 | 1 |
| 8EJ-7711G-01-00 | Graphic 7 (8EJ3) | ||
| 8ED-7711G-10-00 | Graphic 7 (8ED3) | ||
| 8EJ-7711H-01-00 | Graphic 8 (8EJ3) | ||
| 8ED-7711H-10-00 | Graphic 8 (8ED3) | ||
| 8EJ-77143-00-00 | Emblem 3 (8ED3) | ||
| 8EJ-77143-10-00 | Emblem 3 (8EJ3) | ||
| 1 | 88X-77762-10-00 | Label, Warning 2 | 1 |
| 6 | 90267-48177-00 | .Rivet, Blind (4.8X14 Yellow) | 6 |
| 8ED-2194H-00-00 | Protector, Muffler | ||
| 3 | 90267-47186-00 | Rivet, Blind (4.7X16.4 Black) | 3 |
| 90338-44019-00 | Plug |
