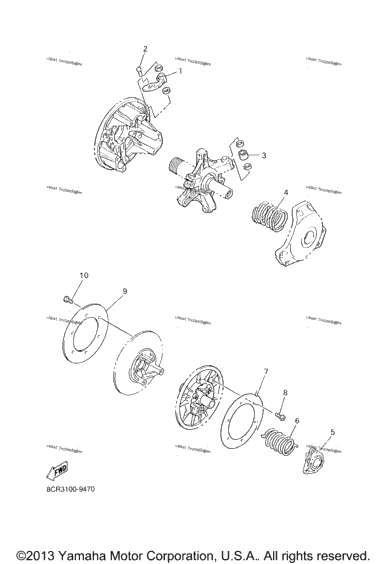

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 3 | 8CR-17605-10-00 | Weight Comp | 3 |
| 3 | 8CH-17605-10-00 | Weight Comp | 3 |
| 3 | 8DF-17605-10-00 | Weight Comp | 3 |
| 3 | 8DG-17605-00-00 | Weight Comp | 3 |
| 3 | 8DJ-17605-00-00 | Weight Comp | 3 |
| 3 | 8DN-17605-20-00 | Weight Comp | 3 |
| 3 | 90261-06019-00 | Rivet, Countersunk (St13.3Mm) | 3 |
| 3 | 90261-06034-00 | Rivet, Countersunk (St13.9Mm) | 3 |
| 3 | 90261-06015-00 | Rivet, Countersunk (St10.3Mm) | 3 |
| 3 | 90261-06017-00 | Rivet, Countersunk (St11.3Mm) | 3 |
| 3 | 90261-06033-00 | Rivet, Countersunk (St17.2Mm) | 3 |
| 3 | 90261-06028-00 | Rivet, Countersunk (Al10.3Mm) | 3 |
| 3 | 8CR-17624-10-00 | Roller, Comp | 3 |
| 3 | 8CR-17624-30-00 | Roller, Comp | 3 |
| 3 | 8CR-17624-20-00 | Roller, Comp | 3 |
| 3 | 8CR-17624-00-00 | Roller, Comp | 3 |
| 1 | 90501-551L3-00 | Spring, Compression (BL-P-BL) | 1 |
| 1 | 90501-624L8-00 | Spring, Compression (OR-SL-OR) | 1 |
| 1 | 90501-603L3-00 | Spring, Compression (GR-WH-GR) | 1 |
| 1 | 90501-603L2-00 | Spring, Compression (Y-WH-Y) | 1 |
| 1 | 90501-602L9-00 | Spring, Compression (P-GR-P) | 1 |
| 1 | 90501-602L8-00 | Spring, Compression (GR-GR-GR) | 1 |
| 1 | 90501-602L3-00 | Spring, Compression (P-SL-P) | 1 |
| 1 | 90501-601L8-00 | Spring, Compression (OR-P-OR) | 1 |
| 1 | 90501-601L7-00 | Spring, Compression (P-P-P) | 1 |
| 1 | 90501-583L5-00 | Spring, Compression (WH-P-WH) | 1 |
| 1 | 90501-583L4-00 | Spring, Compression (WH-SL-WH) | 1 |
| 1 | 90501-583L1-00 | Spring, Compression (WH-WH-WH) | 1 |
| 1 | 90501-583L0-00 | Spring, Compression (BL-WH-BL) | 1 |
| 1 | 90501-582L7-00 | Spring, Compression (Y-GR-Y) | 1 |
| 1 | 90501-582L6-00 | Spring, Compression (WH-GR-WH) | 1 |
| 1 | 90501-552L5-00 | Spring, Compression (BL-GR-BL) | 1 |
| 1 | 90501-581L5-00 | Spring, Compression (Y-P-Y) | 1 |
| 1 | 90501-581L6-00 | Spring, Compression (GR-P-GR) | 1 |
| 1 | 90501-582L2-00 | Spring, Compression (GR-SL-GR) | 1 |
| 1 | 90501-582L1-00 | Spring, Compression (Y-SL-Y) | 1 |
| 1 | 90501-551L9-00 | Spring, Compression (BL-SL-BL) | 1 |
| 1 | 8BV-17604-31-00 | Seat Spring Set | 1 |
| 1 | 8BV-17604-11-00 | Seat Spring Set | 1 |
| 8BV-17604-71-00 | Seat Spring Set | ||
| 1 | 8BV-17604-91-00 | Seat Spring Set | 1 |
| 1 | 8BV-17604-51-00 | Seat Spring Set | 1 |
| 1 | 90508-556A7-00 | Spring, Torsion | 1 |
| 1 | 90508-500B1-00 | Spring, Torsion | 1 |
| 1 | 90508-536A9-00 | Spring, Torsion | 1 |
| 1 | 90508-556A2-00 | Spring, Torsion | 1 |
| 1 | 8CM-17665-00-00 | Plate 1 | 1 |
| 6 | 90150-05040-00 | Screw, Round Head | 6 |
| 1 | 8CM-17675-00-00 | Plate 2 | 1 |
