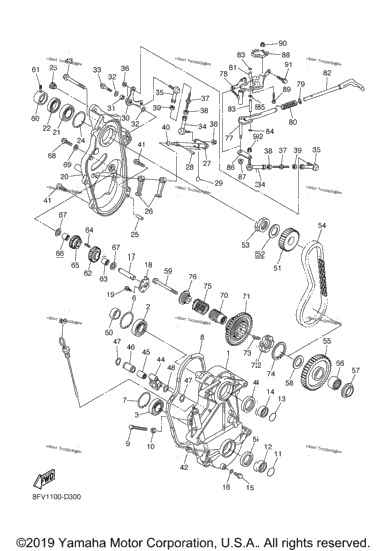

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 8FA-47541-00-00 | Housing, Chain | 1 |
| 1 | 93306-20601-00 | Bearing | 1 |
| 1 | 93306-20592-00 | Bearing | 1 |
| 1 | 93102-40014-00 | Oil Seal | 1 |
| 1 | 93102-35010-00 | Oil Seal | 1 |
| 1 | 99009-62500-00 | Circlip | 1 |
| 1 | 99009-52500-00 | .Circlip | 1 |
| 8FA-47558-00-00 | Ring, Housing | ||
| 1 | 90101-10357-00 | Bolt | 1 |
| 1 | 95307-10600-00 | Nut | 1 |
| 1 | 93210-25071-00 | O-Ring | 1 |
| 1 | 90387-2508C-00 | Collar | 1 |
| 1 | 93210-29282-00 | O-Ring | 1 |
| 1 | 90387-30004-00 | Collar | 1 |
| 1 | 97007-08014-00 | Bolt | 1 |
| 1 | 90210-08017-00 | Washer, Seal | 1 |
| 1 | 8CW-1761A-00-00 | Shaft 1 | 1 |
| 1 | 8CW-47591-00-00 | Plate | 1 |
| 2 | 90105-060A6-00 | Bolt, Flange | 2 |
| 1 | 8ER-47543-10-00 | Cap, Housing | 1 |
| 1 | 93306-20511-00 | Bearing | 1 |
| 2 | 90179-10679-00 | Nut | 2 |
| 2 | 93606-20044-00 | Pin, Dowel | 2 |
| 2 | 8FG-18511-00-00 | Fork, Shift 1 | 2 |
| 8ER-18197-10-00 | Shaft | ||
| 2 | 91609-50022-00 | Pin, Spring | 2 |
| 1 | 93210-12131-00 | O-Ring | 1 |
| 1 | 8ER-18198-00-00 | Lever | 1 |
| 1 | 90387-0608T-00 | Collar | 1 |
| 2 | 90201-06071-00 | Washer, Plate | 2 |
| 1 | 90105-06059-00 | Bolt, Flange | 1 |
| 2 | J45-23845-00-00 | Joint, Universal 2 | 2 |
| 2 | 88T-18157-00-00 | Joint 2 | 2 |
| 3 | 95607-06200-00 | ..Nut, Self U-Flange | 3 |
| 2 | 26H-18115-00-00 | Rod, Shift | 2 |
| 2 | 95304-06600-00 | Nut | 2 |
| 2 | 90170-06289-00 | Nut | 2 |
| 1 | 93210-09418-00 | O-Ring | 1 |
| 3 | 95827-08030-00 | Bolt, Flange | 3 |
| 3 | 95827-10045-00 | Bolt, Flange | 3 |
| 2 | 95827-10090-00 | Bolt, Flange | 2 |
| 1 | 8ES-47613-00-00 | Holder | 1 |
| 1 | 93311-32685-00 | Bearing | 1 |
| 1 | 90387-22005-00 | Collar | 1 |
| 2 | 99009-26400-00 | Circlip | 2 |
| 1 | 90201-266P2-00 | Washer, Plate | 1 |
| 1 | 8FA-47546-00-00 | Level, Oil | 1 |
| 1 | 90387-30005-00 | Collar | 1 |
| 1 | 8FA-17682-40-00 | Sprocket, Chain Drive (24T) | 1 |
| 90208-28001-00 | Washer, Conical Spring | ||
| 1 | 90170-28009-00 | Nut | 1 |
| 1 | 94890-09070-00 | Chain (70L) | 1 |
| 1 | 8FB-47587-80-00 | Sprocket, Chain Driven (38T) | 1 |
| 1 | 93317-33179-00 | Bearing | 1 |
| 1 | 90387-2008G-00 | Collar | 1 |
| 1 | 90201-320S3-00 | Washer, Plate | 1 |
| 1 | 90105-10068-00 | Bolt, Flange | 1 |
| 1 | 90387-25009-00 | Collar | 1 |
| 1 | 90113-06064-00 | Bolt, Set | 1 |
| 1 | 8FB-17692-00-00 | Sprocket, Drive (18T) | 1 |
| 1 | 93317-21578-00 | .Bearing | 1 |
| 1 | 90501-060A1-00 | Spring, Compression | 1 |
| 1 | 8CW-17143-00-00 | Gear, Reverse Pinion 1 (18T) | 1 |
| 2 | 90201-16245-00 | Washer, Plate | 2 |
| 1 | 90105-060A6-00 | Bolt, Flange | 1 |
| 1 | 90210-06006-00 | Washer, Seal | 1 |
| 1 | 8CW-47571-00-00 | Journal 1 | 1 |
| 1 | 8CW-17243-00-00 | Gear, Reverse Wheel 1 (50T) | 1 |
| 1 | 8CW-17492-00-00 | Dog, Transmission Shift | 1 |
| 5 | 90501-066J5-00 | Spring, Compression | 5 |
| 1 | 93440-39175-00 | Circlip | 1 |
| 1 | 90501-260A0-00 | Spring, Compression | 1 |
| 1 | 8CW-47564-01-00 | Collar | 1 |
| 1 | 8ER-18112-01-00 | Arm, Shift | 1 |
| 1 | 8ER-18161-00-00 | Guide, Plate Stopper | 1 |
| 1 | 99009-18400-00 | Circlip | 1 |
| 1 | 90501-130A0-00 | Spring, Compression | 1 |
| 1 | 90387-06059-00 | Collar | 1 |
| 1 | 8ER-18174-00-00 | Knob, Shift Lever | 1 |
| 1 | 90249-06002-00 | Pin | 1 |
| 2 | 93410-06053-00 | Circlip | 2 |
| 1 | 90201-067F9-00 | Washer, Plate | 1 |
| 1 | 8ER-1811A-01-00 | Plate, Shift Arm | 1 |
| 1 | 95607-06200-00 | ..Nut, Self U-Flange | 1 |
| 1 | J51-82817-00-00 | Switch | 1 |
| 1 | 98907-04020-00 | Screw, Bind | 1 |
| 1 | 95607-04100-00 | ..Nut, U | 1 |
| 3 | 95827-08020-00 | Bolt, Flange | 3 |
