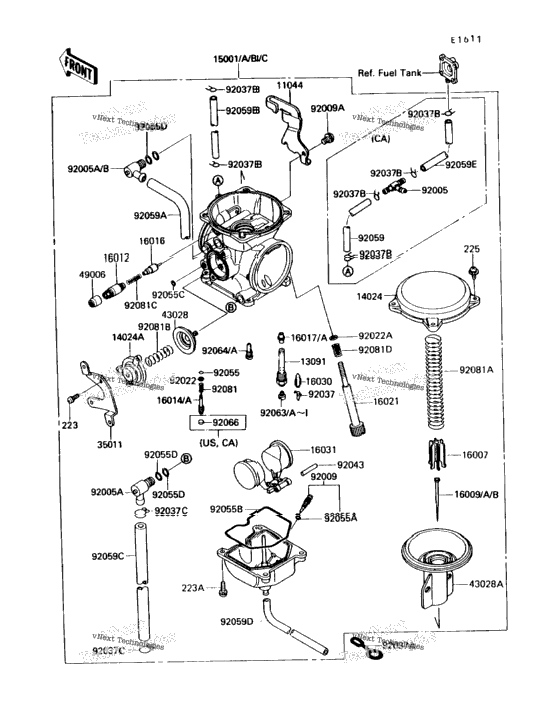

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 11044-1353 | BRACKET,THROTTLE CABL | 1 |
| 1 | 13091-1425 | HOLDER,NEEDLE JET | 1 |
| 1 | 14025-1890 | COVER,MIXING CHAMBER | 1 |
| 1 | 14025-1903 | COVER,AIR CUT VALVE | 1 |
| 15001-1315 | CARBURETOR-ASSY [CN] | ||
| 1 | 15001-1327 | CARBURETOR-ASSY [US] | 1 |
| 15001-1368 | CARBURETOR-ASSY [CA] | ||
| 1 | 16007-1113 | SEAT-SPRING,DIAPHRAGM | 1 |
| 1 | 16009-1344 | NEEDLE-JET,N31R [CA,US] | 1 |
| 16009-1345 | NEEDLE-JET,N31T [CN] | ||
| 1 | 16012-1055 | CAP-STARTER PLUNGER | 1 |
| 1 | 16014-1053 | SCREW-PILOT AIR | 1 |
| 1 | 16016-1057 | PLUNGER | 1 |
| 16017-1253 | JET-NEEDLE [CN] | ||
| 1 | 16017-1254 | JET-NEEDLE,01A36 [CA,US] | 1 |
| 1 | 16021-1109 | SCREW-THROTTLE STOP | 1 |
| 1 | 16030-1057 | VALVE-FLOAT | 1 |
| 1 | 16031-1056 | FLOAT | 1 |
| 1 | 35011-1232 | STAY,AIR CUT VALVE | 1 |
| 1 | 43028-1053 | DIAPHRAGM,AIR CUT VALVE | 1 |
| 1 | 43028-1062 | DIAPHRAGM,VALVE | 1 |
| 1 | 49006-1165 | BOOT,STARTER PLUNGER | 1 |
| 1 | 92005-1112 | FITTING,FUEL,T-TYPE [CA] | 1 |
| 1 | 92005-1120 | FITTING,L-TYPE [CA,US] | 1 |
| 2 | 92005-1120 | FITTING,L-TYPE [CN] | 2 |
| 1 | 92005-1144 | FITTING,L-TYPE [CA,US] | 1 |
| 1 | 92009-1095 | SCREW,DRAIN,M6X1.0 | 1 |
| 1 | 92009-1365 | SCREW,5X10 | 1 |
| 1 | 92022-1003 | WASHER,PLAIN | 1 |
| 1 | 92022-1587 | WASHER,THROTTLE STOP | 1 |
| 1 | 16044-007 | CLAMP,FLOAT VALVE | 1 |
| 1 | 92037-134 | CLAMP,OVER FLOW PIPE | 1 |
| 4 | 92037-1477 | CLAMP,TUBE [CA] | 4 |
| 2 | 92037-1477 | CLAMP,TUBE [CN,US] | 2 |
| 2 | 92037-1531 | CLAMP,TUBE | 2 |
| 1 | 92043-1207 | PIN,FLOAT | 1 |
| 1 | 92055-1002 | RING-O,PILOT ADJUST | 1 |
| 1 | 92055-1053 | RING-O | 1 |
| 1 | 92055-1222 | RING-O,FLOAT CHAMBER | 1 |
| 1 | 92055-1245 | RING-O | 1 |
| 4 | 92055-1246 | RING-O | 4 |
| 1 | 92059-1713 | TUBE,5X9X120 [CA] | 1 |
| 1 | 92059-1727 | TUBE,6.5X9.5X430 | 1 |
| 1 | 92059-1836 | TUBE,5X9X220 [CN,US] | 1 |
| 92059-1837 | TUBE,6.5X11.5X170 | ||
| 92059-1838 | TUBE,3.5X6.5X390 [CN] | ||
| 92059-1839 | TUBE,5X9X100 [CA] | ||
| 1 | 92063-1016 | MAIN JET,#142 [CA,US] | 1 |
| 1 | 92063-1017 | MAIN JET,#145 (OFF ROAD USE ONLY) | 1 |
| 1 | 92063-1324 | JET-MAIN,#148 [CA,US] | 1 |
| 1 | 92063-1324 | JET-MAIN,#148 [CN] | 1 |
| 1 | 92063-1330 | JET-MAIN,#150 [CN] | 1 |
| 1 | 92063-1330 | JET-MAIN,#150 [CA,US] | 1 |
| 1 | 92063-1331 | JET-MAIN,#152 (OFF ROAD USE ONLY) | 1 |
| 1 | 92063-1332 | JET-MAIN,#155 [CN] | 1 |
| 1 | 92064-1050 | JET-PILOT,#38 [CA,US] | 1 |
| 1 | 92064-1108 | JET-PILOT,#40 | 1 |
| 1 | 92066-1051 | PLUG,PILOT AIR SCREW,6.9X2 [CA,US] | 1 |
| 1 | 92081-1002 | SPRING,PILOT ADJUST SCREW | 1 |
| 1 | 92081-1718 | SPRING,DIAPHRAGM VALV | 1 |
| 1 | 92081-1719 | SPRING,AIR CUT VALVE | 1 |
| 1 | 92081-1720 | SPRING,PLUNGER | 1 |
| 1 | 92081-1721 | SPRING,THROTTLE STOP | 1 |
| 2 | 223C0410 | SCREW-PAN-WS-CROS | 2 |
| 4 | 223C0416 | SCREW-PAN-WS-CROS | 4 |
| 4 | 225C0418 | SCREW-PAN-WSP-CROS | 4 |
