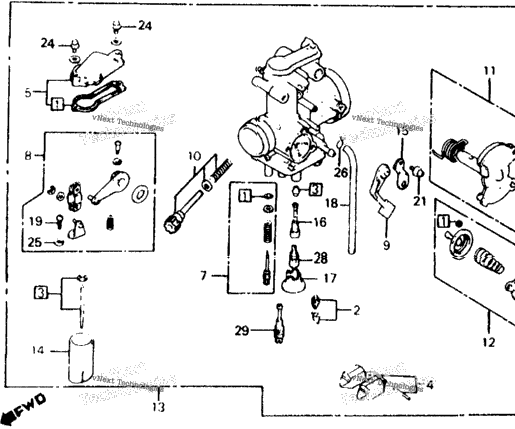

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 16010-429-305 | GASKET SET | ||
| 16010-429-671 | GASKET SET | ||
| 1 | 16011-382-004 | VALVE SET, FLOAT | 1 |
| 16012-429-771 | NEEDLE SET, JET | ||
| 1 | 16013-393-004 | FLOAT SET | 1 |
| 16014-KW3-014 | TOP SET | ||
| 16014-429-671 | TOP SET | ||
| 16014-429-771 | TOP SET | ||
| 16015-446-004 | CHAMBER SET, FLOAT Use up to Engine SN PD11B A | ||
| 16015-KA6-004 | CHAMBER SET, FLOAT Use from Engine SN PD11B B | ||
| 16015-KCE-670 | CHAMBER SET, FLOAT Use from Engine SN PD11B B | ||
| 16015-KCE-671 | CHAMBER SET, FLOAT Use from Engine SN PD11B B | ||
| 1 | 16016-385-681 | SCREW SET A | 1 |
| 1 | 16016-402-004 | SCREW SET A | 1 |
| 16018-428-004 | ARM SET, LINK | ||
| 16019-429-771 | LEVER, CHOKE | ||
| 16028-435-004 | SCREW SET B | ||
| 16032-429-671 | LINK SET, THROTTLE | ||
| 16048-429-771 | VALVE SET, AIR CUT | ||
| 16100-MA0-004 | CARBURETOR ASSY. Use up to Engine SN 5303515 | ||
| 16100-MA0-014 | CARBURETOR ASSY. Use up to Engine SN 5303515 | ||
| 16100-MA0-014 | CARBURETOR ASSY. Use up to Engine SN 5307375 | ||
| 16100-MA0-024 | CARBURETOR ASSY. | ||
| 16100-MA0-024 | CARBURETOR ASSY. Use up to Engine SN 5303515 | ||
| 16100-MA0-024 | CARBURETOR ASSY. Use up to Engine SN 5307375 | ||
| 16100-MA0-034 | CARBURETOR ASSY. | ||
| 16100-MA0-034 | CARBURETOR ASSY. Use up to Engine SN 5303515 | ||
| 16100-MA0-034 | CARBURETOR ASSY. Use up to Engine SN 5307375 | ||
| 16100-MA0-044 | CARBURETOR ASSY. | ||
| 16100-MA0-044 | CARBURETOR ASSY. Use up to Engine SN 5303515 | ||
| 16100-MA0-044 | CARBURETOR ASSY. Use up to Engine SN 5307375 | ||
| 16100-MA0-054 | CARBURETOR ASSY. | ||
| 16100-MA0-054 | CARBURETOR ASSY. Use up to Engine SN 5303515 | ||
| 16100-MA0-054 | CARBURETOR ASSY. Use up to Engine SN 5307375 | ||
| 16111-429-671 | VALVE, THROTTLE | ||
| 1 | 16119-429-771 | PLATE, CHOKE LEVER SETTING | 1 |
| 16165-435-004 | HOLDER, NEEDLE JET | ||
| 1 | 16168-382-014 | HOLDER, JET | 1 |
| 2 | 16199-435-771 | TUBE, RUBBER | 2 |
| 2 | 93500-03008-0H | SCREW, PAN (3X8) | 2 |
| 1 | 93600-05010-0H | SCREW, FLAT (5X10) | 1 |
| 1 | 93892-04010-08 | SCREW-WASHER (4X10) | 1 |
| 2 | 93892-04012-08 | SCREW-WASHER (4X12) | 2 |
| 3 | 93892-04016-08 | SCREW-WASHER (4X16) | 3 |
| 93893-04018-08 | SCREW-WASHER (4X18) | ||
| 2 | 94111-03800 | WASHER, SPRING (3MM) | 2 |
| 1 | 95002-02070 | CLIP, TUBE (B7) | 1 |
| 1 | 95002-02650 | CLIP, TUBE (B6.5) | 1 |
| 1 | 99101-357-1520 | JET, MAIN (#152) Use up to Engine SN PD11B B | 1 |
| 1 | 99101-357-1520 | JET, MAIN (#152) (Optional). Use from Engine SN PD11C A | 1 |
| 99101-357-1550 | JET, MAIN (#155) (Optional). Use up to Engine SN PD11B B | ||
| 99101-357-1550 | JET, MAIN (#155) Use from Engine SN PD11C A | ||
| 99113-GHB-1550 | JET, MAIN (#155) (Optional). Use up to Engine SN PD11B B | ||
| 99113-GHB-1550 | JET, MAIN (#155) Use from Engine SN PD11C A | ||
| 1 | 99101-357-1380 | JET, MAIN (#138) (Optional). | 1 |
| 1 | 99101-357-1400 | JET, MAIN (#140) (Optional). | 1 |
| 1 | 99101-357-1420 | JET, MAIN (#142) (Optional). | 1 |
| 1 | 99101-357-1450 | JET, MAIN (#145) (Optional). | 1 |
| 1 | 99101-357-1480 | JET, MAIN (#148) (Optional). | 1 |
| 99101-357-1500 | JET, MAIN (#150) (Optional). | ||
| 99101-357-1580 | JET, MAIN (#158) (Optional). | ||
| 99113-GHB-1500 | JET, MAIN (#150) (Optional). | ||
| 99113-GHB-1580 | JET, MAIN (#158) (Optional). | ||
| 99101-357-1600 | JET, MAIN (#160) (Optional). Use from Engine SN PD11C A | ||
| 99113-GHB-1600 | JET, MAIN (#160) (Optional). Use from Engine SN PD11C A | ||
| 1 | 99103-MEA-0550 | JET, SLOW | 1 |
| 1 | 99103-437-0550 | JET, SLOW (#55) | 1 |
