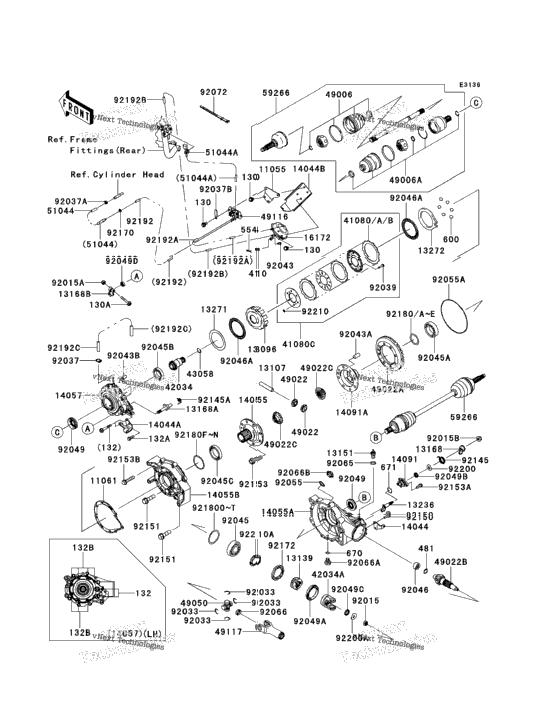

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 11055-0422 | BRACKET | 1 |
| 1 | 11061-0272 | GASKET,LH CASE | 1 |
| 1 | 13096-0018 | HOUSING-CLUTCH | 1 |
| 1 | 13107-0149 | SHAFT,CROSS | 1 |
| 1 | 13139-0015 | SHIFTER,2/4WD ACTUATO | 1 |
| 1 | 13151-1080 | SWITCH-COMP,NEUTRAL | 1 |
| 1 | 13168-0139 | LEVER,OUTER | 1 |
| 1 | 13168-0141 | LEVER,DIFF-LOCK,INNER | 1 |
| 13168-0173 | LEVER,DIFF-LOCK | ||
| 1 | 13236-0164 | LEVER-COMP,INNER | 1 |
| 1 | 13271-1503 | PLATE,DISC | 1 |
| 1 | 13272-0858 | PLATE,CAM | 1 |
| 1 | 14044-0029 | HOLDER-CABLE | 1 |
| 1 | 14044-0036 | HOLDER-CABLE,DIFF-LOC | 1 |
| 1 | 14044-0042 | HOLDER-CABLE | 1 |
| 1 | 14055-0033 | CASE-GEAR,CROSS | 1 |
| 1 | 14055-0038 | CASE-GEAR,RH | 1 |
| 1 | 14055-0043 | CASE-GEAR,MDL | 1 |
| 1 | 14057-0005 | CASE-COMP-GEAR,LH | 1 |
| 1 | 14091-0680 | COVER | 1 |
| 1 | 14091-0867 | COVER,CROSS CASE | 1 |
| 1 | 16172-0014 | ACTUATOR | 1 |
| 1 | 41080-1499 | DISC,T=1.20 | 1 |
| 1 | 41080-1500 | DISC,T=1.80 | 1 |
| 1 | 41080-1501 | DISC,T=2.40 | 1 |
| 1 | 41080-1512 | DISC-ASSY | 1 |
| 1 | 42034-0043 | COUPLING | 1 |
| 1 | 42034-0054 | COUPLING | 1 |
| 1 | 43058-0018 | RING | 1 |
| 2 | 49006-0092 | BOOT,UJ | 2 |
| 2 | 49006-0093 | BOOT,DOJ | 2 |
| 2 | 49022-0018 | GEAR-BEVEL,10T | 2 |
| 1 | 49022-0030 | GEAR-BEVEL,35T | 1 |
| 1 | 49022-0032 | GEAR-BEVEL,8T | 1 |
| 2 | 49022-0047 | GEAR-BEVEL,16T | 2 |
| 1 | 49050-1075 | SPIDER | 1 |
| 1 | 49116-0024 | VALVE-ASSY | 1 |
| 1 | 49117-0040 | YOKE,14T | 1 |
| 1 | 51044-0053 | TUBE-ASSY | 1 |
| 1 | 51044-0056 | TUBE-ASSY,BREATHER | 1 |
| 2 | 59266-0037 | JOINT-BALL | 2 |
| 1 | 92015-1190 | NUT,LOCK,12MM,BLACK | 1 |
| 1 | 92015-1339 | NUT,LOCK,FLANGED,6MM | 1 |
| 1 | 92015-1432 | NUT,8MM | 1 |
| 4 | 92033-1030 | RING-SNAP | 4 |
| 1 | 92037-1104 | CLAMP,HOSE | 1 |
| 1 | 92037-1461 | CLAMP,TUBE | 1 |
| 1 | 92037-1539 | CLAMP,L=45 | 1 |
| 2 | 92039-1258 | RIVET,DISC | 2 |
| 1 | 92043-0121 | PIN | 1 |
| 1 | 92043-0142 | PIN,10X20 | 1 |
| 2 | 92043-1263 | PIN,6.2X8X14 | 2 |
| 1 | 92045-0068 | BEARING-BALL,6306A6 | 1 |
| 1 | 92045-1015 | BEARING,BALL,#6009 | 1 |
| 1 | 92045-1230 | BEARING-BALL,16007 | 1 |
| 1 | 92045-1394 | BEARING-BALL,6910 | 1 |
| 1 | 92046-0025 | BEARING-NEEDLE,AJ501907 | 1 |
| 2 | 92046-1286 | BEARING-NEEDLE,AK1116 | 2 |
| 2 | 92049-0029 | SEAL-OIL,SDD7 25X57X7 HS | 2 |
| 1 | 92049-0090 | SEAL-OIL,55X77X9 | 1 |
| 1 | 92049-1520 | SEAL-OIL,TC14245 | 1 |
| 1 | 92049-1523 | SEAL-OIL,KICK PEDAL | 1 |
| 1 | 92049-1550 | SEAL-OIL,TC 12X22X7 | 1 |
| 1 | 92055-0122 | RING-O | 1 |
| 1 | 92055-0123 | RING-O,169.3X3.1 | 1 |
| 1 | 92065-058 | GASKET,10.5X16X1 | 1 |
| 1 | 92066-0027 | PLUG | 1 |
| 1 | 92066-0085 | PLUG,DRAIN,10X12 | 1 |
| 1 | 92066-1303 | PLUG | 1 |
| 1 | 92072-056 | BAND,L=186 | 1 |
| 1 | 92145-0445 | SPRING,RETURN | 1 |
| 1 | 92145-0525 | SPRING,DIFF-LOCK LEVE | 1 |
| 2 | 92150-1394 | BOLT,6X16 | 2 |
| 2 | 92151-1909 | BOLT,10X35 | 2 |
| 8 | 92153-1728 | BOLT,FLANGED,10X30 | 8 |
| 2 | 92153-1729 | BOLT,FLANGED-SMALL,6X16 | 2 |
| 6 | 92153-1730 | BOLT,8X40 | 6 |
| 1 | 92170-2042 | CLAMP | 1 |
| 1 | 92172-0371 | SCREW,SET,75X10 | 1 |
| 1 | 92180-0259 | SHIM,45.3X57X0.8 | 1 |
| 6 | 130BA0614 | BOLT-FLANGED,6X14 | 6 |
| 1 | 130BA0635 | BOLT-FLANGED,6X35 | 1 |
| 2 | 132BB0640 | BOLT,6X40 | 2 |
| 1 | 132BD0618 | BOLT-FLANGED-SMALL,6X18 | 1 |
| 7 | 132BD0635 | BOLT-FLANGED-SMALL,6X35 | 7 |
| 1 | 410AA0400 | WASHER-PLAIN-SMALL,4MM | 1 |
| 1 | 481J3200 | CIRCLIP-TYPE-C,32MM | 1 |
| 1 | 554DA0400 | PIN-SNAP | 1 |
| 6 | 600A1100 | BALL-STEEL,11/32 | 6 |
| 1 | 670B2010 | O RING,10MM | 1 |
| 1 | 671B2525 | O RING,25MM | 1 |
| 1 | 92180-0260 | SHIM,45.3X57X0.15 | 1 |
| 1 | 92180-0261 | SHIM,45.3X57X0.2 | 1 |
| 1 | 92180-0262 | SHIM,45.3X57X1.2 | 1 |
| 1 | 92180-1205 | SHIM,T=1.0 | 1 |
| 1 | 92180-1207 | SHIM,T=0.5 | 1 |
| 1 | 92180-1390 | SHIM,62X71X0.15 | 1 |
| 1 | 92180-1391 | SHIM,62X71X0.20 | 1 |
| 1 | 92180-1392 | SHIM,62X71X0.50 | 1 |
| 1 | 92180-1393 | SHIM,62X71X0.70 | 1 |
| 1 | 92180-1394 | SHIM,62X71X0.80 | 1 |
| 1 | 92180-1395 | SHIM,62X71X0.90 | 1 |
| 1 | 92180-1396 | SHIM,62X71X1.00 | 1 |
| 1 | 92180-1397 | SHIM,62X71X1.10 | 1 |
| 1 | 92180-1398 | SHIM,62X71X1.20 | 1 |
| 1 | 92180-1423 | SHIM,60X72X0.15 | 1 |
| 1 | 92180-1424 | SHIM,60X72X0.20 | 1 |
| 1 | 92180-1425 | SHIM,60X72X0.50 | 1 |
| 1 | 92180-1426 | SHIM,60X72X0.80 | 1 |
| 1 | 92180-1427 | SHIM,60X72X1.00 | 1 |
| 1 | 92180-1428 | SHIM,60X72X1.20 | 1 |
| 1 | 92192-0622 | TUBE,3X7X350 | 1 |
| 1 | 92192-0623 | TUBE,3X7X100 | 1 |
| 1 | 92192-0637 | TUBE,3X7X480 | 1 |
| 1 | 92192-0716 | TUBE,7X12X760 | 1 |
| 1 | 92200-0335 | WASHER,11.8X29X1.2 | 1 |
| 1 | 92200-0336 | WASHER,12X32X2.5 | 1 |
| 2 | 92210-1255 | NUT,DISC | 2 |
| 1 | 92210-1294 | NUT,30MM | 1 |
