Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

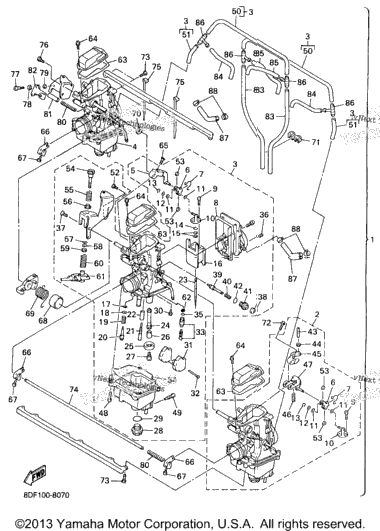

| 1 | 8DF-14100-00-00 | Carburetor Assembly | 1 |
| 1 | 8DF-14101-00-00 | . Carburetor Assembly 1 | 1 |
| 1 | 8DF-14102-00-00 | . Carburetor Assembly 2 | 1 |
| 1 | 8DF-14103-00-00 | . Carburetor Assembly 3 | 1 |
| 1 | 89A-14292-00-00 | . . ..Lever A | 1 |
| 1 | 89A-14243-00-00 | . . ..Plate | 1 |
| 1 | 89A-14137-00-00 | . . ..Clip | 1 |
| 1 | 89A-14199-00-00 | . . ..Gasket | 1 |
| 2 | 91316-03012-00 | . . ..Bolt | 2 |
| 1 | 89A-14188-00-00 | . . ..Connector | 1 |
| 2 | 3GF-14126-00-00 | . . ..Gasket | 2 |
| 1 | 620-14198-00-00 | . . ..Gasket | 1 |
| 1 | 3MA-14937-00-00 | . . ..Clip | 1 |
| 1 | 3FA-14137-00-00 | . . ..Clip | 1 |
| 2 | 8AB-14227-00-00 | . . ..Washer (T=0.4Mm) | 2 |
| 89A-14112-25-00 | . . Valve, Throttle 1 | ||
| 1 | 3H1-14147-00-00 | . . O-Ring | 1 |
| 1 | 3H1-14962-00-00 | . . Washer | 1 |
| 1 | 5K7-14134-00-00 | . . Spring, Air Adjusting | 1 |
| 1 | 89A-14565-00-00 | . . ..Screw, Pilot Adjusting | 1 |
| 1 | 3H1-14142-45-00 | . . Jet, Pilot (#45) UR | 1 |
| 1 | 3H1-14142-50-00 | . . Jet, Pilot (#50) UR | 1 |
| 1 | 3H1-14142-55-00 | . . Jet, Pilot (#55) UR | 1 |
| 1 | 3H1-14142-52-00 | . . Jet, Pilot (#52.5) UR | 1 |
| 1 | 3H1-14142-47-00 | . . Jet, Pilot (#47.5) UR STD | 1 |
| 3H1-14142-57-00 | . . Jet, Pilot (# 57.5) UR | ||
| 3H1-14142-60-00 | . . Jet, Pilot (# 60) UR | ||
| 1 | 89A-14996-00-00 | . . ..Pipe | 1 |
| 152-14116-A3-00 | . . Needle | ||
| 89A-14141-52-00 | . . Nozzle, Main UR STD | ||
| 1 | 1LX-14153-00-00 | . . ..Washer, Main Jet | 1 |
| 1 | 89A-14194-00-00 | . . ..Ring | 1 |
| 1 | 3G2-14231-27-00 | . . ..Jet, Main (#135) UR | 1 |
| 1 | 3G2-1423A-78-00 | . . ..Jet, Main (#137.5) UR | 1 |
| 1 | 3G2-1423A-77-00 | . . Jet, Main (#132.5) UR | 1 |
| 1 | 3G2-14231-28-00 | . . ..Jet, Main (#140) UR | 1 |
| 1 | 3G2-14231-29-00 | . . Jet, Main (#145) UR | 1 |
| 1 | 3G2-14231-81-00 | . . Jet, Main (#152.5) UR | 1 |
| 1 | 3G2-1423E-57-00 | . . ..Jet, Main (#143.8) UR | 1 |
| 1 | 3G2-1423A-79-00 | . . Jet, Main (#142.5) UR | 1 |
| 1 | 3G2-14231-30-00 | . . ..Jet, Main (#150) UR STD (#3) | 1 |
| 1 | 3G2-1423E-55-00 | . . ..Jet, Main (#138.8) UR | 1 |
| 3G2-1423E-54-00 | . . Jet, Main (#136.3) UR | ||
| 1 | 3G2-1423E-53-00 | . . Jet, Main (#133.8) UR | 1 |
| 1 | 3G2-1423E-52-00 | . . Jet, Main (#131.3) UR | 1 |
| 1 | 3G2-1423E-60-00 | . . ..Jet, Main (#151.3) UR | 1 |
| 1 | 3G2-1423E-61-00 | . . Jet, Main (#153.8) UR | 1 |
| 1 | 3G2-1423E-58-00 | . . ..Jet, Main (#146.3) UR | 1 |
| 1 | 3G2-1423E-56-00 | . . ..Jet, Main (#141.3) UR | 1 |
| 1 | 3G2-1423A-80-00 | . . ..Jet, Main (#147.5) UR | 1 |
| 1 | 500-14115-00-00 | . . ..Plug, Screw | 1 |
| 1 | 558-14147-00-00 | . . O-Ring | 1 |
| 1 | 2LN-14565-00-00 | . . ..Screw | 1 |
| 1 | 1UY-14185-00-00 | . . Float | 1 |
| 1 | 537-14186-00-00 | . . Pin, Float | 1 |
| 1 | 1AE-14190-13-00 | . . ..Needle Valve Assy | 1 |
| 1 | 89A-14147-00-00 | . . ..O-Ring | 1 |
| 1 | 8F2-14147-00-00 | . . O-Ring | 1 |
| 1 | 239-14172-10-00 | . . ..Pilot Jet, Air (1.0) | 1 |
| 98702-05008-00 | . . ..Screw, Flat Head | ||
| 302-14173-00-00 | . . ..Cover, Plunger Cap | ||
| 4G0-14171-00-00 | . . ..Plunger, Starter | ||
| 1 | 1AW-14135-00-00 | . . ..Spring, Plunger | 1 |
| 1FN-14174-00-00 | . . ..Cap, Plunger | ||
| 1 | 1AE-14147-00-00 | . . O-Ring | 1 |
| 1 | 89A-14216-00-00 | . . Screw | 1 |
| 1 | 95302-05700-00 | . . .Nut | 1 |
| 89A-14276-00-00 | . . Lever | ||
| 1 | 89A-14286-00-00 | . . Spring | 1 |
| 89A-14905-00-00 | . . Lever, Starter | ||
| 4 | 98501-04014-00 | . . Screw, Pan Head | 4 |
| 1 | 12R-14191-00-00 | . . .Plug, Drain | 1 |
| 84M-14197-00-00 | . . Pipe | ||
| 8CH-14348-00-00 | . . Pipe 1 | ||
| 1 | 98502-04010-00 | . . Screw, Pan Head | 1 |
| 2 | 3MA-14918-00-00 | . . ..Ring | 2 |
| 1 | 8CC-14122-00-00 | . . ..Screw, Throttle | 1 |
| 1 | 2J2-14133-00-00 | . . ..Spring, Throttle Stop | 1 |
| 1 | 89A-14265-00-00 | . . ..Collar | 1 |
| 1 | 22F-14117-00-00 | . . Washer, Plug Screw | 1 |
| 1UF-14952-00-00 | . . ..Washer | ||
| 1 | 89A-14594-00-00 | . . ..Nut | 1 |
| 1 | 89A-24529-00-00 | . . ..Spring | 1 |
| 1 | 87S-8259A-00-00 | . . .Switch, Carburetor | 1 |
| 1 | 1J7-14994-00-00 | . . Net, Filter | 1 |
| 3 | 89A-14198-00-00 | . .Gasket | 3 |
| 6 | 97606-04110-00 | . .Screw | 6 |
| 1 | 98701-04014-00 | . Screw, Flat Head | 1 |
| 89A-14208-00-00 | . .Lever Comp. 1 | ||
| 3 | 11H-14991-00-00 | . Screw | 3 |
| 89A-14264-00-00 | . .Collar | ||
| 8CH-14589-00-00 | . Spring | ||
| 3H1-14227-00-00 | . .Washer | ||
| 1 | 87M-14137-00-00 | . Clip | 1 |
| 2 | 97602-04116-00 | . Screw, Pan Head With Washer | 2 |
| 12 | 98501-05012-00 | . Screw, Pan Head | 12 |
| 8CH-14978-00-00 | . .Shaft, Starter Lever | ||
| 3 | 35H-14139-00-00 | . Clip, Pipe | 3 |
| 1 | 97802-05110-00 | . Screw, Pan Head | 1 |
| 22F-14115-00-00 | . .Plug, Screw | ||
| 1 | 22F-14117-00-00 | . Washer, Plug Screw | 1 |
| 3FV-14962-00-00 | . .Washer | ||
| 1AE-14135-00-00 | . .Spring, Plunger | ||
| 89A-14118-00-00 | . .Cap | ||
| 89A-14588-00-00 | . .Lever | ||
| 8A7-14197-00-00 | . .Pipe | ||
| 2 | 8A7-14196-00-00 | . Pipe | 2 |
| 8F2-14197-00-00 | . .Pipe | ||
| 4 | 4N0-14251-00-00 | . .Nipple | 4 |
| 8CH-14987-10-00 | . .Hose | ||
| 4 | 90467-10035-00 | . Clip | 4 |
