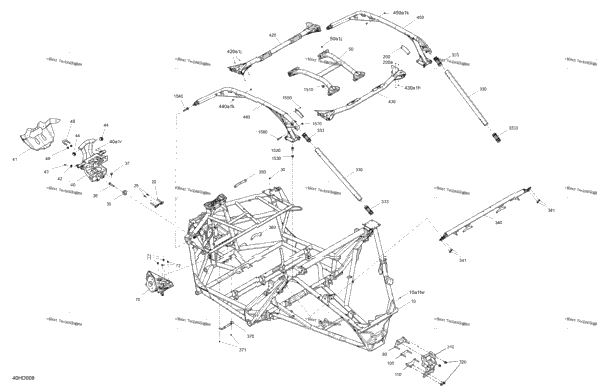

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 705210179 | Hyper Silver, Chassis Includes 10 to 10a1fw | ||
| 1 | 390402200 | Pop Rivet 3/16" | 1 |
| 1 | 705211561 | Front Plate Includes 20 to 20a3 | 1 |
| 2 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 2 |
| 15 | 250100199 | Insert Half Hex Body M6 x 1.0 | 15 |
| 1 | 705206992 | Bumper Link | 1 |
| 1 | 250000857 | Flange Screw M12 X 60 | 1 |
| 1 | 250000060 | Flange Screw M10 X 16, Scotch Grip | 1 |
| 1 | 705211510 | Legion Red, Front Bumper Includes 40 to 40a1r | 1 |
| 4 | 390402200 | Pop Rivet 3/16" | 4 |
| 1 | 715006996 | Front Master Plate | 1 |
| 6 | 250100198 | Panel Nut M6 X 1.0 | 6 |
| 6 | 250000722 | Torx Screw M6 X 20 | 6 |
| 2 | 705202455 | Cap | 2 |
| 1 | 705212138 | Deep Black, Flange | 1 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 1 | 705210209 | Hyper Silver, Cage Reinforcement Includes 50 to 50a1j | 1 |
| 8 | 390402200 | Pop Rivet 3/16" | 8 |
| 1 | 705206924 | DPS Support Includes 70 to 70a9 | 1 |
| 2 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip | 2 |
| 2 | 233281416 | Hex. Elastic Flange Nut M8 | 2 |
| 1 | 705211557 | Rear Upper Plate Includes 80 to 80a3 | 1 |
| 1 | 705211558 | Rear Central Plate Includes 100 to 100a2 | 1 |
| 1 | 705211556 | Rear Lower Plate Includes 110 to 110a3 | 1 |
| 1 | 705211612 | Hyper Silver, Upper Plate Kit Includes 200 to 200a1a | 1 |
| 705211613 | Hyper Silver, Upper Plate Kit Includes 200a to 200a1a | ||
| 1 | 705210271 | Connecting Plate Includes 310 to 310a1d | 1 |
| 4 | 250001195 | Elastic Flange Nut M12 | 4 |
| 2 | 705210223 | Hyper Silver, Rear Pillar Includes 330 to 330a1a | 2 |
| 4 | 705210648 | Sleeve | 4 |
| 1 | 705210001 | Safety Belt Anchorage Includes 340 to 340a5a | 1 |
| 4 | 232521416 | Elastic Stop Nut M12 | 4 |
| 1 | 705211552 | Connecting Plate Includes 350 to 350a | 1 |
| 1 | 705210249 | Retaining Plate | 1 |
| 1 | 705211560 | Support Includes 370 to 370a | 1 |
| 2 | 390402200 | Pop Rivet 3/16" | 2 |
| 1 | 705210234 | Hyper Silver, Front Cross Member Includes 420 to 420a1j | 1 |
| 16 | 390402200 | Pop Rivet 3/16" | 16 |
| 1 | 705210240 | Hyper Silver, Rear Cross Member Includes 430 to 430a1h | 1 |
| 14 | 390402200 | Pop Rivet 3/16" | 14 |
| 705210189 | Hyper Silver, LH Cage Includes 440 to 440a1k | ||
| 6 | 390402200 | Pop Rivet 3/16" | 6 |
| 705210190 | Hyper Silver, RH Cage Includes 450 to 450r | ||
| 8 | 250001195 | Elastic Flange Nut M12 | 8 |
| 14 | 207523056 | Hex. Flange Screw M12 X 30, Scotch Grip | 14 |
| 6 | 250001195 | Elastic Flange Nut M12 | 6 |
| 4 | 250000857 | Flange Screw M12 X 60 | 4 |
| 4 | 293150102 | Rivet 3/16" | 4 |
| 4 | 250000901 | Torx Truss M8 X 65 | 4 |
| 4 | 250100025 | Elastic Flange Nut M8 | 4 |
