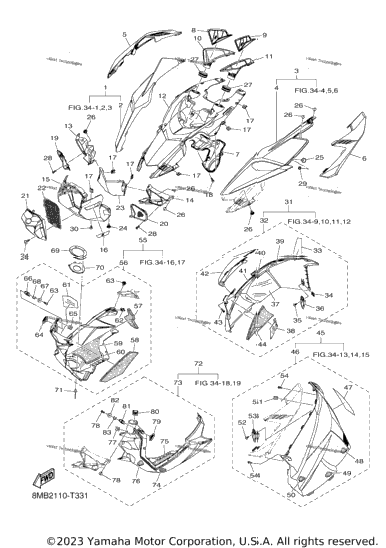

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 0 | 8MH-F198A-00-00 | Hood Assy 4 UR FOR MDGR | 0 |
| 8KC-F198A-50-00 | Hood Assy 4 UR FOR YB | ||
| 1 | 8KC-K7122-10-00 | . . . Hood 4 UR FOR YB | 1 |
| 0 | 8LX-K7122-00-00 | . . .Hood 4 UR FOR MDGR | 0 |
| 0 | 8MH-F197A-00-00 | Hood Assy 3 UR FOR MDGR | 0 |
| 8KC-F197A-50-00 | Hood Assy 3 UR FOR YB | ||
| 1 | 8KC-K7121-10-00 | . . . Hood 3 UR FOR YB | 1 |
| 1 | 8LX-K7121-00-00 | . . .Hood 3 UR FOR MDGR | 1 |
| 1 | 8MG-K7111-00-00 | Shroud UR FOR YB | 1 |
| 0 | 8LX-K7111-00-00 | .Shroud UR FOR MDGR | 0 |
| 1 | 8MG-K7112-00-00 | Shroud 2 UR FOR YB | 1 |
| 0 | 8LX-K7112-00-00 | .Shroud 2 UR FOR MDGR | 0 |
| 1 | 8KC-K715B-00-00 | Intake, Lower | 1 |
| 1 | 8KC-K715E-00-00 | Screen, Intake Duct 2 | 1 |
| 1 | 8KC-K715D-00-00 | Screen, Intake Duct 1 | 1 |
| 1 | 8KC-K715G-00-00 | Duct, Intake 2 | 1 |
| 1 | 8KC-K715F-00-00 | Duct, Intake 1 | 1 |
| 1 | 8KC-K715C-00-00 | Intake, Upper | 1 |
| 1 | 8KC-K715J-00-00 | Vent, Front 2 | 1 |
| 1 | 8KC-K715H-00-00 | Vent, Front 1 | 1 |
| 1 | 8KC-K715K-00-00 | Duct, Intake Front | 1 |
| 2 | 8MY-H5133-00-00 | .Tape, Reflector | 2 |
| 9 | 8JP-RA352-00-00 | .Nut, Spring | 9 |
| 9 | 8JP-RA2A2-00-00 | Screw, 13 | 9 |
| 1 | 8KC-K715M-00-00 | Bezel, Vent 2 | 1 |
| 1 | 8KC-K715L-00-00 | Bezel, Vent 1 | 1 |
| 1 | 8KC-K715N-00-00 | Grille | 1 |
| 1 | 8KC-K7123-00-00 | Guide 1 | 1 |
| 1 | 8KC-K715P-00-00 | Shut, Intake | 1 |
| 3 | 8KC-RA290-00-00 | Screw | 3 |
| 2 | 8JP-RAK02-00-00 | Pin, 2 | 2 |
| 10 | 8JP-RA202-00-00 | Screw, Tapping | 10 |
| 2 | 8KC-K715R-00-00 | Seal, Intake | 2 |
| 4 | 8KC-RA238-00-00 | Screw, 4 | 4 |
| 2 | 8JP-RA345-00-00 | Nut, 1 | 2 |
| 1 | 8KC-RA239-00-00 | Screw, 5 | 1 |
| 8MH-K810G-00-00 | Side Panel Comp. (R.H) UR FOR MDGR | ||
| 8MH-K810G-10-00 | Side Panel Comp. (R.H) UR FOR YB | ||
| 0 | 8KC-K8140-10-00 | . . Shell Side Panel Assy 2 UR FOR MDGR | 0 |
| 1 | 8KC-K8140-40-00 | . . . Shell Side Panel Assy 2 UR FOR YB | 1 |
| 8KC-K7761-70-00 | . . .Label, Warning 1 | ||
| 6 | 8JP-RA352-00-00 | . . .Nut, Spring | 6 |
| 2 | 8KC-RA290-00-00 | . . Screw | 2 |
| 1 | 8KC-K715T-00-00 | . . .Hook 2 | 1 |
| 1 | 8KC-K7552-00-00 | . . .Protector 2 | 1 |
| 1 | 8KC-K7551-01-00 | . . .Protector 1 | 1 |
| 1 | 8KC-K7553-01-00 | . . .Protector 3 | 1 |
| 1 | 8KC-K7554-00-00 | . . .Protector 4 | 1 |
| 1 | 8KC-K7555-00-00 | . . .Protector 5 | 1 |
| 1 | 8KC-K715U-00-00 | . . .Vent, Side 1 | 1 |
| 4 | 8KC-RA238-00-00 | . . Screw, 4 | 4 |
| 1 | 8KC-K7278-00-00 | . . .Damper, Noise 18 | 1 |
| 0 | 8MH-K810F-00-00 | Side Panel Comp. (L.H) UR FOR MDGR | 0 |
| 1 | 8MH-K810F-10-00 | Side Panel Comp. (L.H) UR FOR YB | 1 |
| 0 | 8KC-K8130-10-00 | . . Shell Side Panel Assy 1 UR FOR MDGR | 0 |
| 1 | 8KC-K8130-40-00 | . . . Shell Side Panel Assy 1 UR FOR YB | 1 |
| 8KC-K7761-S0-00 | . . .Label, Warning 1 | ||
| 1 | 8KC-K7279-00-00 | . . .Damper, Noise 19 | 1 |
| 1 | 8KC-K7277-00-00 | . . .Damper, Noise 17 | 1 |
| 1 | 8KC-K7277-10-00 | . . .Damper, Noise 17 | 1 |
| 1 | 8KC-K715S-00-00 | . . .Hook 1 | 1 |
| 8MH-F1983-20-00 | Hood 2 UR FOR YB | ||
| 8MH-F1983-10-00 | Hood 2 UR FOR MDGR | ||
| 1 | 8KC-K8140-50-00 | . Shell Side Panel Assy 2 | 1 |
| 1 | 8KC-K7276-00-00 | . . .Damper, Noise 16 | 1 |
| 1 | 8KC-K7275-00-00 | . . .Damper, Noise 15 | 1 |
| 1 | 8KC-K7274-00-00 | . . .Damper, Noise 14 | 1 |
| 1 | 8KC-K7556-01-00 | . . .Protector 6 | 1 |
| 1 | 8KC-K7557-10-00 | . . .Protector 7 | 1 |
| 1 | 8JP-RA2A2-00-00 | . . Screw, 13 | 1 |
| 1 | 8KC-K7324-00-00 | . . Knob | 1 |
| 1 | 8JP-RA350-00-00 | . . .Nut, Spring | 1 |
| 1 | 8KC-K7153-00-00 | . . Plate, Back Up 1 | 1 |
| 1 | 8JP-RA429-00-00 | . . Washer | 1 |
| 1 | 8JP-RAC15-00-00 | . . Clip, 6 | 1 |
| 1 | 8KC-K8181-00-00 | Plate 1 | 1 |
| 1 | 8KC-G1138-00-00 | Seal, Ext. 1 | 1 |
| 1 | 8JP-RA523-00-00 | Rivet, 14 | 1 |
| 0 | 8MH-F1982-10-00 | Hood 1 UR FOR MDGR | 0 |
| 8MH-F1982-20-00 | Hood 1 UR FOR YB | ||
| 1 | 8KC-K8130-50-00 | . Shell Side Panel Assy 1 | 1 |
| 1 | 8KC-K7271-00-00 | . . .Damper, Noise 11 | 1 |
| 1 | 8KC-K7272-00-00 | . . .Damper, Noise 12 | 1 |
| 1 | 8KC-K7273-00-00 | . . .Damper, Noise 13 | 1 |
