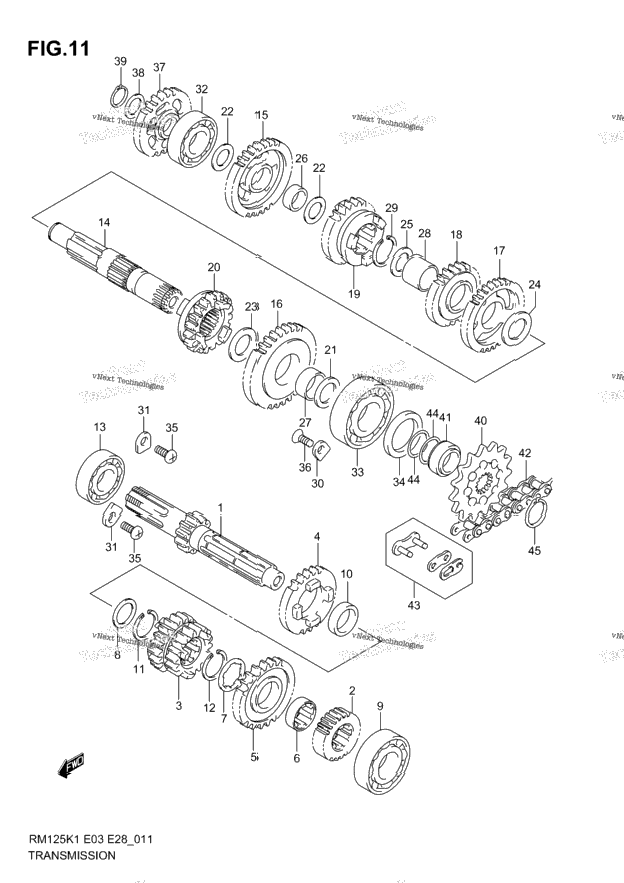

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 24120-36F00 | SHAFT, COUNTER (NT:14) MODEL K1/K2 | ||
| 24120-36F01 | SHAFT, COUNTER (NT:14) MODEL K3 | ||
| 24221-36F01 | GEAR, 2ND DRIVE (NT:16) | ||
| 24231-43D21 | GEAR, 3RD & 4TH DRIVE NT:18/20 | ||
| 1 | 24251-43D20 | GEAR, 5TH DRIVE (NT:19) | 1 |
| 1 | 24261-43D01 | GEAR, 6TH DRIVE (NT:20) | 1 |
| 24262-43D00 | BUSH, 6TH DRIVE | ||
| 1 | 09167-22014 | WASHER LOCK, 6TH DRIVE | 1 |
| 1 | 09181-22139 | WASHER, 5TH DRIVE (22X28X1.0) | 1 |
| 09262-17049 | BEARING, CNTR SHAFT, LH 17X35X10 | ||
| 1 | 09300-22008 | BUSH, 5TH DRIVE GEAR | 1 |
| 1 | 09380-22006 | CIRCLIP, 5TH DRIVE | 1 |
| 1 | 09380-22006 | CIRCLIP, 6TH DRIVE | 1 |
| 1 | 09262-20122 | BEARING, CNTR SHAFT, RH 20X47X12 | 1 |
| 24131-36E10 | SHAFT, DRIVE | ||
| 1 | 24311-36F00 | GEAR, 1ST DRIVEN (NT:29) | 1 |
| 1 | 24321-36F00 | GEAR, 2ND DRIVEN (NT:27) MODEL K1 | 1 |
| 1 | 24321-36F01 | GEAR, 2ND DRIVEN (NT:27) MODEL K2/K3 | 1 |
| 1 | 24331-36E00 | GEAR, 3RD DRIVEN (NT:26) MODEL K1 | 1 |
| 1 | 24331-36E01 | GEAR, 3RD DRIVEN (NT:26) MODEL K2/K3 | 1 |
| 1 | 24341-36E00 | GEAR, 4TH DRIVEN (NT:24) | 1 |
| 24351-36E01 | GEAR, 5TH DRIVEN (NT:20) | ||
| 1 | 24361-36E01 | GEAR, 6TH DRIVEN (NT:19) MODEL K1 | 1 |
| 1 | 24361-36E02 | GEAR, 6TH DRIVEN (NT:19) MODEL K2/K3 | 1 |
| 1 | 09160-20074 | WASHER, 2ND DRIVEN LH 20X30X3 | 1 |
| 2 | 09181-17167 | WASHER, 1ST DRIVEN (17X26X1) | 2 |
| 1 | 09181-22167 | SHIM (22X30X1) | 1 |
| 1 | 09300-17012 | BUSH, 1ST DRIVEN | 1 |
| 1 | 09300-22008 | BUSH, 2ND DRIVEN | 1 |
| 1 | 09300-22018 | BUSH, 3RD & 4TH DRIVEN | 1 |
| 1 | 09380-22006 | CIRCLIP, 4TH DRIVEN | 1 |
| 1 | 24741-20A00 | RETAINER, CL HSG BRG | 1 |
| 2 | 24741-21A00 | RETAINER, CNTR SHAFT BEARING | 2 |
| 1 | 09262-17040 | BEARING, DRIVE SHAFT RH 17X40X9.5 | 1 |
| 1 | 09262-20110 | BEARING, DRIVE SHAFT LH 20X52X12.5 | 1 |
| 1 | 09283-28020 | SEAL, DRIVE SHAFT OIL | 1 |
| 2 | 02112-06103 | SCREW, CENTER SHAFT | 2 |
| 1 | 02122-06123 | SCREW, DRIVE SHAFT | 1 |
| 1 | 26260-43D00 | GEAR, KICK IDLE (NT:26) | 1 |
| 1 | 09181-17130 | WASHER (17X24X0.50) | 1 |
| 1 | 08331-31176 | CIRCLIP | 1 |
| 1 | 27511-14111 | SPROCKET, ENGINE (NT:12) | 1 |
| 1 | 27511-14121 | SPROCKET, ENGINE (NT:13) OPT | 1 |
| 1 | 27531-43D00 | SPACER | 1 |
| 1 | 27600-43D00-112 | CHAIN ASSY (DID520DM,112L) MODEL K1 | 1 |
| 1 | 27600-43D01-112 | CHAIN ASSY (DID520DMA,112L) MODEL K2/K3 | 1 |
| 1 | 27620-43D00 | JOINT (DID) OPT | 1 |
| 2 | 09280-20006 | O RING (D:1.9,ID:19.8) | 2 |
| 1 | 09380-20007 | CIRCLIP | 1 |
