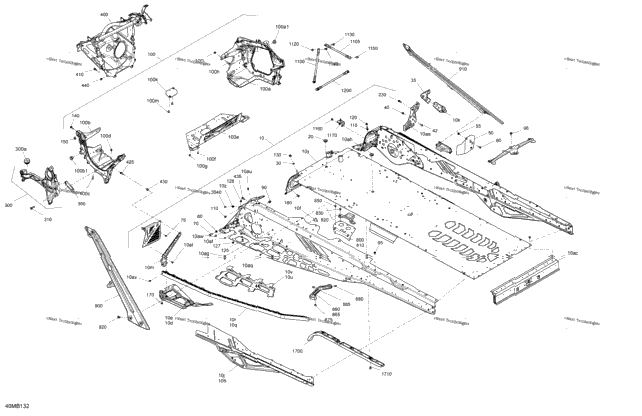

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 415130494 | Deep Black, Chassis Tunnel Module 154" Includes 10 to 10aw | ||
| 1 | 518332803 | Deep Black, RH Footrest Reinforcement | 1 |
| 1 | 518332802 | Deep Black, LH Footrest Reinforcement | 1 |
| 2 | 518329659 | Front Suspension Arm Reinforcement | 2 |
| 1 | 518332254 | RH Rear Suspension Support | 1 |
| 1 | 518332253 | LH Rear Suspension Support | 1 |
| 1 | 518329789 | RH Footrest Reinforcement | 1 |
| 1 | 518332924 | Deep Black, LH Chassis Reinforcement | 1 |
| 1 | 518329648 | RH Roller | 1 |
| 1 | 518328452 | LH Roller | 1 |
| 1 | 518329646 | RH Tunnel Liner | 1 |
| 1 | 518329647 | LH Tunnel Liner | 1 |
| 1 | 518332621 | Radiator | 1 |
| 3 | 250100199 | Insert Half Hex Body M6 x 1.0 | 3 |
| 1 | 518332481 | Rear Cap | 1 |
| 1 | 518331822 | RH Footrest | 1 |
| 3 | 293730047 | Black, Dart 8 mm | 3 |
| 2 | 293730060 | Black, Dart 10 mm | 2 |
| 1 | 293730052 | Black, Plug | 1 |
| 20 | 293150203 | Rivet Avibulb 3/16 | 20 |
| 1 | 293150096 | Hemlock Rivet, 6.5 mm | 1 |
| 1 | 293150119 | Hemlock Rivet, 6.5 mm | 1 |
| 4 | 293150174 | Hemlock Rivet, 6.4 mm | 4 |
| 2 | 293150149 | Collar Huck Magna-Grip 6.4 | 2 |
| 2 | 234081410 | Flat Washer 8 mm | 2 |
| 1 | 518331727 | RH Stirrup Reinforcement | 1 |
| 2 | 293450275 | Insert | 2 |
| 2 | 250000717 | Torx Head Screw M6 X 16 | 2 |
| 1 | 518331823 | Heat Shield | 1 |
| 2 | 250000942 | Hex Screw M8 X 30 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 6 | 293450275 | Insert | 6 |
| 1 | 293450275 | Insert | 1 |
| 1 | 518332686 | Engine Chassis Module Ass'y Includes 100 to 100m | 1 |
| 1 | 518332689 | RH Member Ass'y Includes 100a to 100a1 | 1 |
| 1 | 505072690 | Leg Bushing | 1 |
| 1 | 518332688 | LH Member Ass'y Includes 100b to 100b1 | 1 |
| 3 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 | 3 |
| 3 | 293150149 | Collar Huck Magna-Grip 6.4 | 3 |
| 1 | 518332715 | Bottom Plate | 1 |
| 14 | 293150203 | Rivet Avibulb 3/16 | 14 |
| 1 | 293450268 | Insert M5 X 0.8 | 1 |
| 2 | 250000945 | Hex. Flange Screw M6 X 25 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 518329454 | Oil Plate Includes 100k to 100k.a | 1 |
| 2 | 250000767 | Torx Truss Screw M6 X 12 | 2 |
| 3 | 293150147 | Hemlock Rivet | 3 |
| 2 | 207662046 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261416 | Elastic Flange Nut M6 X 1.0 | 2 |
| 2 | 293150120 | Hemlock Rivet 6.5 mm | 2 |
| 2 | 293150173 | Rivet 6,4 mm | 2 |
| 4 | 293150119 | Hemlock Rivet, 6.5 mm | 4 |
| 1 | 293450267 | Insert M5 - 0.8 | 1 |
| 4 | 207661646 | Hex. Flange Screw M6 X 16 | 4 |
| 1 | 207562056 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 518333691 | LH Side Member Ass'y Includes 300 to 300a | 1 |
| 2 | 512060295 | Rubber Mount | 2 |
| 4 | 250001060 | Screw-Pan HD.Torx M8X30 | 4 |
| 1 | 518331740 | LH Front Chassis Reinforcement | 1 |
| 1 | 518332098 | Suspension Chassis Module Ass'y | 1 |
| 2 | 250001051 | Screw-Forming Hex.HD.FL. M6 X 16 | 2 |
| 1 | 233261416 | Elastic Flange Nut M6 X 1.0 | 1 |
| 6 | 293150147 | Hemlock Rivet | 6 |
| 1 | 518332514 | LH Under Chassis Reinforcement | 1 |
| 1 | 518332516 | RH Under Chassis Reinforcement | 1 |
| 2 | 518331733 | Cross Member Support | 2 |
| 1 | 518330858 | Deep Black LH Rear Footrest Reinforcement | 1 |
| 1 | 518330861 | Deep Black RH Rear Footrest Reinforcement | 1 |
| 4 | 293150183 | Rivet | 4 |
| 2 | 293150148 | Rivet Magna-Grip 6,4 X 50,8 | 2 |
| 518333270 | Deep Black,LH Rear Diagonal Cross Member | ||
| 518333271 | Deep Black,RH Rear Diagonal Cross Member | ||
| 4 | 250000887 | Pan Head Torx Screw M8 X 12 | 4 |
| 1 | 518329370 | Upper Colomn Support | 1 |
| 1 | 518330916 | Upper Side Column Support | 1 |
| 7 | 233261416 | Elastic Flange Nut M6 X 1.0 | 7 |
| 1 | 207662556 | Hex. Flange Screw M6 X 25 | 1 |
| 6 | 207662046 | Hex. Flange Screw M6 X 20 | 6 |
| 2 | 293150119 | Hemlock Rivet, 6.5 mm | 2 |
| 1 | 518331666 | Muffler Support Ass'y | 1 |
| 1 | 518329906 | Center Column Support | 1 |
| 1 | 518329982 | Front Protector | 1 |
| 3 | 293150108 | Pop Rivet 3/16” | 3 |
| 2 | 293730079 | Dart | 2 |
