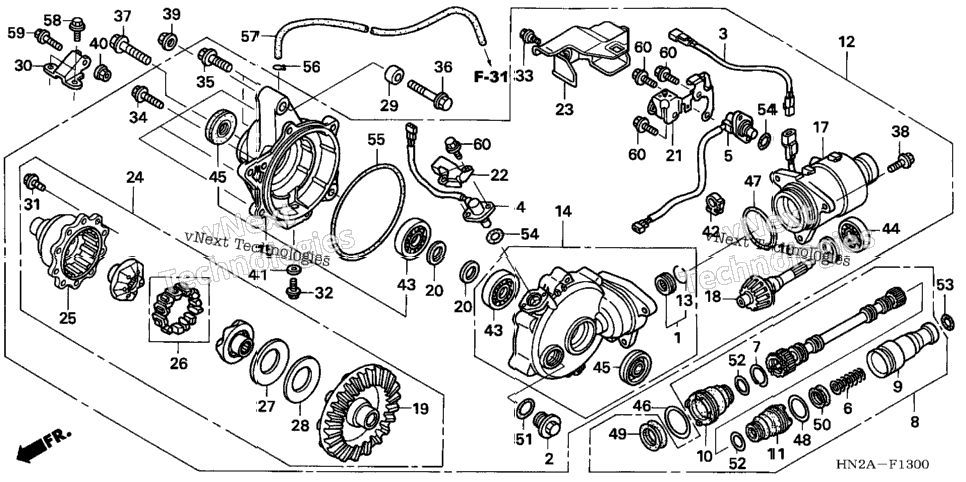

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 06910-HN8-000 | BEARING SET, NEEDLE | 1 |
| 1 | 12361-035-000 | CAP, TAPPET ADJUSTING HOLE | 1 |
| 1 | 12361-300-000 | CAP, VALVE ADJ. | 1 |
| 1 | 12361-371-980 | CAP, VALVE ADJ. | 1 |
| 1 | 32101-HP0-A00 | SUB-HARNESS, FR. FINAL CLUTCH | 1 |
| 1 | 37700-HN0-672 | SENSOR ASSY., SPEED | 1 |
| 1 | 37750-HP0-A01 | SENSOR ASSY., SPEED | 1 |
| 1 | 40215-HM7-000 | SPRING, SHAFT | 1 |
| 1 | 40221-ME4-000 | RING, STOPPER | 1 |
| 1 | 40400-HN2-A20 | SHAFT ASSY., FR. PROPELLER | 1 |
| 1 | 40402-HN8-000 | JOINT, FR. PROPELLER SHAFT | 1 |
| 1 | 40410-HN8-000 | BOOT A, PROPELLER | 1 |
| 1 | 40420-HM7-A00 | BOOT B, PROPELLER | 1 |
| 1 | 41400-HP0-A00 | GEAR ASSY., FR. FINAL | 1 |
| 1 | 41400-HP0-A01 | GEAR ASSY., FR. FINAL | 1 |
| 1 | 41405-HA7-670 | RING, STOPPER | 1 |
| 1 | 41411-HP0-A00 | CASE SUB-ASSY., FR. GEAR | 1 |
| 1 | 41412-HP0-A00 | COVER SUB-ASSY., FR. GEAR CASE | 1 |
| 1 | 41412-HP0-A01 | COVER SUB-ASSY., FR. GEAR CASE | 1 |
| 1 | 41447-HM8-000 | SHIM A, PINION GEAR (1.64) | 1 |
| 1 | 41448-HM8-000 | SHIM B, PINION GEAR (1.70) | 1 |
| 1 | 41449-HM8-000 | SHIM C, PINION GEAR (1.76) | 1 |
| 1 | 41451-HM8-000 | SHIM D, PINION GEAR (1.82) | 1 |
| 1 | 41452-HM8-000 | SHIM E, PINION GEAR (1.88) | 1 |
| 1 | 41453-HM8-000 | SHIM F, PINION GEAR (1.94) | 1 |
| 1 | 41454-HM8-000 | SHIM G, PINION GEAR (2.00) | 1 |
| 1 | 41455-HM8-000 | SHIM H, PINION GEAR (2.06) | 1 |
| 1 | 41456-HM8-000 | SHIM I, PINION GEAR (2.12) | 1 |
| 1 | 41457-HM8-000 | SHIM J, PINION GEAR (2.18) | 1 |
| 41458-HN0-670 | SHIM K, PINION GEAR (2.24) | ||
| 41459-HN0-670 | SHIM L, PINION GEAR (2.30) | ||
| 41461-HN0-670 | SHIM M, PINION GEAR (2.36) | ||
| 41462-HN0-670 | SHIM N, PINION GEAR (2.42) | ||
| 41463-HN0-670 | SHIM O, PINION GEAR (2.48) | ||
| 1 | 41500-HP0-A01 | CLUTCH ASSY., FR. FINAL | 1 |
| 1 | 41500-HP0-A02 | CLUTCH ASSY., FR. FINAL | 1 |
| 1 | 41520-HP0-A00 | GEAR, FR. PINION (13T) | 1 |
| 1 | 41531-HP0-A00 | GEAR, FR. RING (42T) | 1 |
| 2 | 41631-HC5-000 | SHIM A, DIFFERENTIAL CASE (0.50) | 2 |
| 2 | 41632-HC5-000 | SHIM B, DIFFERENTIAL CASE (0.55) | 2 |
| 2 | 41633-HC5-000 | SHIM C, DIFFERENTIAL CASE (0.60) | 2 |
| 2 | 41634-HC5-000 | SHIM D, DIFFERENTIAL CASE (0.65) | 2 |
| 2 | 41635-HC5-000 | SHIM E, DIFFERENTIAL CASE (0.70) | 2 |
| 2 | 41636-HC5-000 | SHIM F, DIFFERENTIAL CASE (0.75) | 2 |
| 2 | 41637-HC5-000 | SHIM G, DIFFERENTIAL CASE (0.80) | 2 |
| 2 | 41638-HC5-000 | SHIM H, DIFFERENTIAL CASE (0.85) | 2 |
| 2 | 41639-HC5-000 | SHIM I, DIFFERENTIAL CASE (0.90) | 2 |
| 2 | 41640-HC5-000 | SHIM J, DIFFERENTIAL CASE (0.95) | 2 |
| 2 | 41641-HC5-000 | SHIM K, DIFFERENTIAL CASE (1.00) | 2 |
| 2 | 41642-HC5-000 | SHIM L, DIFFERENTIAL CASE (1.05) | 2 |
| 2 | 41643-HC5-000 | SHIM M, DIFFERENTIAL CASE (1.10) | 2 |
| 2 | 41644-HC5-000 | SHIM N, DIFFERENTIAL CASE (1.15) | 2 |
| 2 | 41645-HC5-000 | SHIM O, DIFFERENTIAL CASE (1.20) | 2 |
| 2 | 41646-HC5-000 | SHIM P, DIFFERENTIAL CASE (1.25) | 2 |
| 2 | 41647-HC5-000 | SHIM Q, DIFFERENTIAL CASE (1.30) | 2 |
| 2 | 41648-HC5-000 | SHIM R, DIFFERENTIAL CASE (1.35) | 2 |
| 2 | 41649-HC5-000 | SHIM S, DIFFERENTIAL CASE (1.40) | 2 |
| 2 | 41650-HC5-000 | SHIM T, DIFFERENTIAL CASE (1.45) | 2 |
| 2 | 41651-HC5-000 | SHIM U, DIFFERENTIAL CASE (1.50) | 2 |
| 2 | 41652-HC5-000 | SHIM V, DIFFERENTIAL CASE (1.55) | 2 |
| 2 | 41653-HC5-000 | SHIM W, DIFFERENTIAL CASE (1.60) | 2 |
| 1 | 41711-HP0-A00 | STAY, CLUTCH COVER | 1 |
| 1 | 41712-HN0-670 | COVER, FR. SENSOR | 1 |
| 1 | 41713-HP0-A00 | COVER, FR. FINAL CLUTCH | 1 |
| 1 | 42400-HP0-A01 | DIFFERENTIAL ASSY. | 1 |
| 1 | 42411-HP0-A01 | CASE, DIFFERENTIAL | 1 |
| 1 | 42440-HN5-671 | FOLLOWER SET, CAM | 1 |
| 1 | 42451-HN7-003 | SHIM A (1.3) | 1 |
| 1 | 42452-HN7-003 | SHIM B (1.4) | 1 |
| 1 | 42453-HN7-003 | SHIM C (1.5) | 1 |
| 1 | 42454-HN7-003 | SHIM D (1.6) | 1 |
| 1 | 42455-HN7-003 | SHIM E (1.7) | 1 |
| 1 | 42456-HN7-003 | SHIM F (1.8) | 1 |
| 1 | 42457-HN7-003 | SHIM G (1.9) | 1 |
| 1 | 42461-HN5-671 | SPRING, DIFFERENTIAL SIDE CONED | 1 |
| 1 | 50304-KS3-900 | COLLAR, FR. ENGINE HANGER | 1 |
| 1 | 50350-HN2-000 | BRACKET, FR. GEAR CASE | 1 |
| 10 | 90101-HN8-000 | BOLT (8X17) | 10 |
| 1 | 90109-371-000 | BOLT, SEALING (8MM) | 1 |
| 2 | 90119-KCW-870 | BOLT, FORK COVER | 2 |
| 4 | 90133-MB0-000 | BOLT, FLANGE (8X27) | 4 |
| 2 | 90134-HA0-000 | BOLT, FLANGE (10X35) | 2 |
| 1 | 90151-HC5-000 | BOLT, FLANGE (10X62) | 1 |
| 1 | 90154-HC5-000 | BOLT, FLANGE (10X48) | 1 |
| 3 | 90155-KY4-901 | BOLT, FLANGE (8X25) | 3 |
| 1 | 90305-HC0-770 | NUT, SELF-LOCK (10MM) | 1 |
| 1 | 90309-KF0-003 | NUT, FLANGE (8MM) | 1 |
| 1 | 90309-428-731 | NUT, FLANGE (M8X1.25) (SELF-LOCK) | 1 |
| 1 | 90471-580-000 | GASKET (8MM) | 1 |
| 1 | 90690-GHB-641 | CLIP, CABLE (10MM) | 1 |
| 2 | 91052-HP0-A01 | BEARING, RADIAL BALL (29X52X12) | 2 |
| 1 | 91062-HN8-013 | BEARING, RADIAL BALL (6006) (C5) | 1 |
| 2 | 91252-HC5-003 | OIL SEAL (22X48X7) (ARAI) | 2 |
| 1 | 91301-HM7-A00 | BAND, BOOT (D32) | 1 |
| 1 | 91301-MS9-003 | O-RING (64X2.5) | 1 |
| 1 | 91302-HM7-A00 | BAND, BOOT (D27) | 1 |
| 1 | 91302-HM7-003 | SEAL A, RUBBER | 1 |
| 1 | 91302-HN5-671 | SEAL, PROPELLER | 1 |
| 1 | 91302-001-020 | O-RING (30.8MM) | 1 |
| 2 | 91303-HM7-A00 | BAND, BOOT (D20) | 2 |
| 1 | 91311-MB0-003 | O-RING (18.5X2.4) (ARAI) | 1 |
| 2 | 91321-PF4-004 | O-RING (18.3X2.4) (NOK) | 2 |
| 1 | 91353-HN8-003 | O-RING (139.5X2) | 1 |
| 1 | 95002-35000 | CLIP, TUBE (C6.5) | 1 |
| 1 | 95005-35001-30M | BULK HOSE, VACUUM (3.5X1000) (3.5X660) | 1 |
| 2 | 95701-08016-07 | BOLT, FLANGE (8X16) | 2 |
| 1 | 95801-08030-00 | BOLT, FLANGE (8X30) | 1 |
| 5 | 96001-06016-07 | BOLT, FLANGE (6X16) | 5 |
