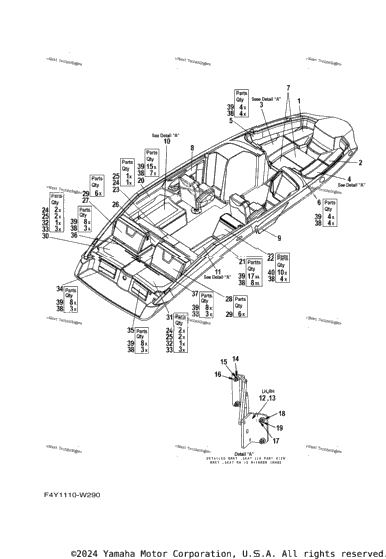

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | F5K-U35A5-00-00 | Cushion, Fore 5 UR FOR BC6 | 1 |
| 1 | F5K-U35A5-10-00 | Cushion, Fore 5 UR FOR NC7 | 1 |
| 1 | F5K-U35A6-00-00 | Cushion, Fore 6 UR FOR BC6 | 1 |
| 1 | F5K-U35A6-10-00 | Cushion, Fore 6 UR FOR NC7 | 1 |
| 1 | F5K-U35A1-00-00 | Cushion, Fore 1 UR FOR BC6 | 1 |
| 1 | F5K-U35A1-10-00 | Cushion, Fore 1 UR FOR NC7 | 1 |
| 1 | F5K-U35A2-00-00 | Cushion Seat, Front Right UR FOR BC6 | 1 |
| 1 | F5K-U35A2-10-00 | Cushion Seat, Front Right UR FOR NC7 | 1 |
| 1 | F5K-U3796-00-00 | Back Rest 3 UR FOR BC6 | 1 |
| 1 | F5K-U3796-10-00 | Back Rest 3 UR FOR NC7 | 1 |
| 1 | F5K-U3798-00-00 | Back Rest 4 UR FOR BC6 | 1 |
| 1 | F5K-U3798-10-00 | Back Rest, 4 UR FOR NC7 | 1 |
| 1 | F5K-U372F-00-00 | Cushion 5 UR FOR BC6 | 1 |
| F5K-U372F-10-00 | Cushion 5 UR FOR NC7 | ||
| 1 | F5K-U35E1-00-00 | Backrest, Main 1 UR FOR BC6 | 1 |
| 1 | F5K-U35E1-10-00 | Backrest, Main 1 UR FOR NC7 | 1 |
| 1 | F5K-U36A2-00-00 | Pad 2 UR FOR BC6 | 1 |
| 1 | F5K-U36A2-10-00 | Pad 2 UR FOR NC7 | 1 |
| 1 | F5K-U371D-00-00 | Cushion 1 UR FOR BC6 | 1 |
| 1 | F5K-U371D-10-00 | Cushion 1 UR FOR NC7 | 1 |
| 1 | F5K-U3713-00-00 | Cushion,Seat UR FOR BC6 | 1 |
| 1 | F5K-U3713-10-00 | Cushion,Seat UR FOR NC7 | 1 |
| 4 | F3F-U3714-20-00 | Bracket,Seat | 4 |
| 4 | F3F-U3714-30-00 | Bracket,Seat | 4 |
| 16 | 90201-10S00-00 | Washer, Plate | 16 |
| 16 | 90204-10S00-00 | Washer, Spring | 16 |
| 16 | 90170-10S00-00 | .Nut | 16 |
| 16 | 90151-10S16-00 | Screw, Countersunk | 16 |
| 16 | 90185-10S00-00 | Nut, Self-Locking | 16 |
| 1 | F5K-U3791-00-00 | Back Rest 1 UR FOR BC6 | 1 |
| 1 | F5K-U3791-10-00 | Back Rest 1 UR FOR NC7 | 1 |
| 1 | F5K-U35E2-00-00 | Backrest, Main 2 UR FOR BC6 | 1 |
| 1 | F5K-U35E2-10-00 | Backrest, Main 2 UR FOR NC7 | 1 |
| 1 | F5K-U36A1-00-00 | Pad 1 UR FOR BC6 | 1 |
| 1 | F5K-U36A1-10-00 | Pad 1 UR FOR NC7 | 1 |
| F5K-U3724-00-00 | Cushion Seat, Rear UR FOR BC6 | ||
| 1 | F5K-U3724-10-00 | Cushion Seat, Rear UR FOR NC7 | 1 |
| 1 | F1C-U5192-00-00 | .Snap UN | 1 |
| 1 | 90202-06SA3-00 | .Washer, Plate UN | 1 |
| 1 | F5K-U35E4-00-00 | Backrest, Main 4 UR FOR BC6 | 1 |
| 1 | F5K-U35E4-10-00 | Backrest, Main 4 UR FOR NC7 | 1 |
| 1 | F5K-U379A-00-00 | Back Rest, 6 UR FOR BC6 | 1 |
| F5K-U379A-10-00 | Back Rest, 6 UR FOR NC7 | ||
| 1 | F4Y-UF8DH-00-00 | . Cable | 1 |
| 1 | F5K-UF8BA-00-00 | . Seat, Slide | 1 |
| 1 | F5K-UFRR1-00-00 | . Magnet Catch | 1 |
| 6 | 90209-14SA3-00 | Washer | 6 |
| 6 | 90204-14S00-00 | Washer, Spring | 6 |
| 6 | 90170-14S00-00 | Nut | 6 |
| F5K-U379B-00-00 | Back Rest, 7 UR FOR BC6 | ||
| 1 | F5K-U379B-10-00 | Back Rest, 7 UR FOR NC7 | 1 |
| 1 | F5K-U828B-00-00 | Cushion 1 UR FOR BC6 | 1 |
| 1 | F5K-U828B-10-00 | Cushion 1 UR FOR NC7 | 1 |
| 1 | F5K-U828C-00-00 | Cushion 2 UR FOR BC6 | 1 |
| 1 | F5K-U828C-10-00 | Cushion 2 UR FOR NC7 | 1 |
| 2 | F5K-U724H-00-00 | Holder | 2 |
| 6 | 90161-04S12-00 | Screw, Tapping | 6 |
| 1 | F5K-U521E-00-00 | Pad 3 UR FOR BC6 | 1 |
| 1 | F5K-U521E-10-00 | Pad 3 UR FOR NC7 | 1 |
| 1 | F5K-U521F-00-00 | Pad 4 UR FOR BC6 | 1 |
| 1 | F5K-U521F-10-00 | Pad 4 UR FOR NC7 | 1 |
| 1 | F5K-U35C5-00-00 | Cushion, Main 5 UR FOR BC6 | 1 |
| 1 | F5K-U35C5-10-00 | Cushion, Main 5 UR FOR NC7 | 1 |
| 1 | F5K-U35C6-00-00 | Cushion, Main 6 UR FOR BC6 | 1 |
| 1 | F5K-U35C6-10-00 | Cushion, Main 6 UR FOR NC7 | 1 |
| 1 | F1C-U5195-00-00 | Clip, 1 UN | 1 |
| 1 | 90167-08SA8-00 | Screw, Tapping UN | 1 |
| 10 | 90167-08SB1-00 | Screw, Tapping | 10 |
