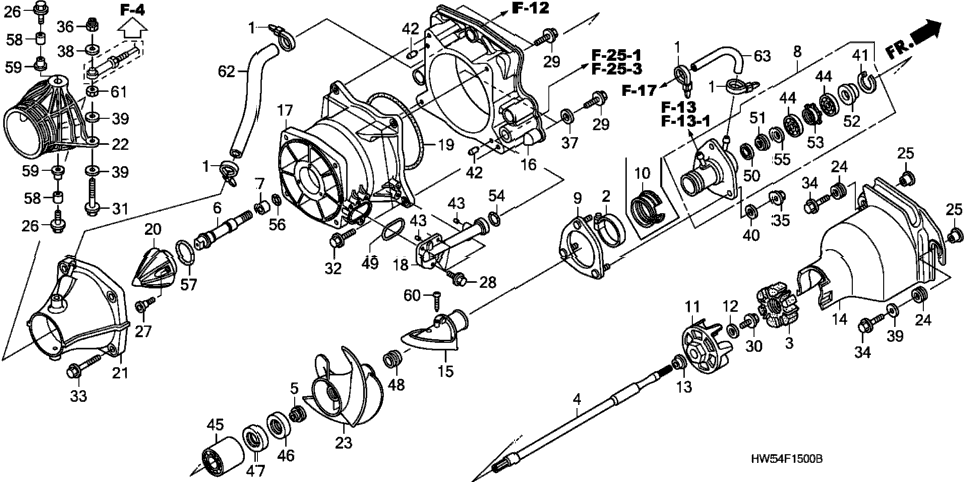

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 19035-HW1-670 | BAND, HOSE (140MM) | ||
| 19082-HW5-900 | CLAMP, WATER HOSE (32-57MM) | ||
| 23853-HW5-900 | RUBBER, COUPLING | ||
| 41112-HW5-900 | SHAFT, DRIVE | ||
| 41113-HW1-670 | RUBBER, STOPPER | ||
| 41161-HW5-900 | SHAFT, IMPELLER | ||
| 41162-HW5-900 | COLLAR, IMPELLER SHAFT | ||
| 43500-HW1-682 | HOUSING ASSY., BEARING | ||
| 43505-HW1-670 | HOLDER, BEARING HOUSING | ||
| 43851-HW5-900 | CONNECTOR, DRIVEN | ||
| 43856-HW1-670 | WASHER (10MM) | ||
| 43857-HW1-730 | COLLAR, SHAFT | ||
| 43860-HW5-900 | COVER, CONNECTOR | ||
| 47106-HW5-900 | GUIDE, DRIVESHAFT | ||
| 47110-HW5-900 | PLATE, THRUST | ||
| 47201-HW5-900 | STATOR, WATER JET | ||
| 47203-HW5-900 | PIPE, COOLING WATER | ||
| 47206-HW1-671 | O-RING (164.7X3.5) | ||
| 47214-HW5-900 | CAP, STATOR | ||
| 47310-HW5-900 | NOZZLE, WATER JET | ||
| 47410-HW5-900 | NOZZLE, STEERING | ||
| 58130-HW6-730 | IMPELLER | ||
| 2 | 61103-357-000 | RUBBER, FR. FENDER MOUNTING | 2 |
| 61104-HW1-671 | COLLAR, MOUNTING (6MM) | ||
| 2 | 90101-HW1-671 | BOLT, FLANGE (8X25) | 2 |
| 90103-HW1-671 | BOLT, SOCKET (5X18) | ||
| 90103-HW5-900 | BOLT, FLANGE (6X18) (SUS-G) | ||
| 90106-HW5-900 | BOLT, FLANGE (10X28) (SUS-D) | ||
| 90107-HW1-671 | BOLT, FLANGE (10X25) | ||
| 90117-HW1-670 | BOLT, FLANGE (6X40) | ||
| 4 | 90118-HW1-671 | BOLT, FLANGE (8X28) | 4 |
| 90119-HW3-671 | BOLT, FLANGE (8X40) (SUS-D) | ||
| 2 | 90205-HW1-670 | BOLT, FLANGE (6X25) | 2 |
| 90219-HW3-670 | NUT, FLANGE (8MM) | ||
| 90303-HW1-671 | NUT, SELF-LOCK (6MM) | ||
| 90502-HW3-670 | WASHER (10MM) (SUS) | ||
| 1 | 90504-HW1-670 | WASHER, PLAIN (6MM) | 1 |
| 3 | 90511-ZV4-000 | WASHER, PLAIN (6MM) | 3 |
| 3 | 90514-921-000 | WASHER (8MM) | 3 |
| 90686-HW1-671 | CIRCLIP (INNER) (42MM) | ||
| 90756-HW5-900 | PIN, DOWEL (6X10) | ||
| 90757-HW1-670 | PIN, DOWEL (5X8) | ||
| 2 | 91001-MG7-000 | BEARING, BALL (6905) | 2 |
| 91003-HW2-731 | BEARING, ANGULAR BALL (5304) | ||
| 91251-HW5-901 | SEAL A, WATER (30X45X9) | ||
| 91252-HW5-901 | SEAL B, WATER (30X45X9) | ||
| 91253-HW1-680 | SEAL, IMPELLER | ||
| 1 | 91305-PX4-003 | O-RING (40X1.9) (NOK) | 1 |
| 91353-HW1-671 | SEAL, WATER (25X35X6) | ||
| 91353-HW1-681 | SEAL, WATER (25X36X6.5) | ||
| 91354-HW1-681 | SEAL, WATER (25X42.5X10) | ||
| 91355-HW1-671 | SEAL, STOPPER | ||
| 1 | 91355-759-003 | O-RING (21.8X2.4) | 1 |
| 91356-HW1-671 | WASHER, SEALING | ||
| 91356-HW5-900 | O-RING (18.8X2.4) | ||
| 1 | 91358-MB0-000 | O-RING (46.5X3.5) | 1 |
| 91560-HW1-670 | COLLAR (12X8X11) | ||
| 91565-HW1-670 | COLLAR, STEERING NOZZLE | ||
| 1 | 93903-254J0 | SCREW, TAPPING (5X20) | 1 |
| 1 | 94001-06490-0S | NUT, HEX. (6MM) | 1 |
| 1 | 95005-12001-50M | BULK HOSE, VACUUM (12X1000) (12X270) | 1 |
| 1 | 95005-50001-50M | BULK HOSE, VACUUM (5X1000) (5X370) | 1 |
