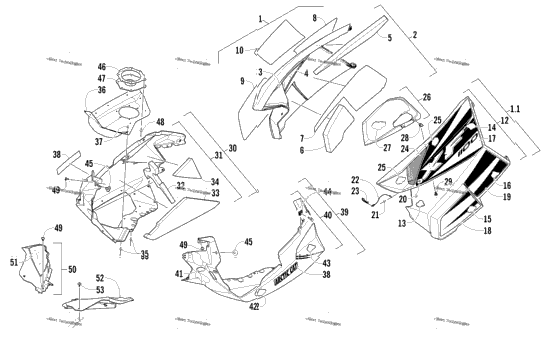

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 3718-206 | Panel, Side - Right - w/Decals - Black (inc. 2-10) | ||
| 1 | 3718-312 | Panel, Side w/o Decals - Right - Black (inc. 3-7) | 1 |
| 1 | 0617-626 | Foam, Side Panel - Upper Front - Right | 1 |
| 1 | 6606-414 | Foil, Protective | 1 |
| 1 | 0617-628 | Foam, Side Panel - Upper Rear - Right | 1 |
| 1 | 0617-632 | Foam, Side Panel - Lower Front - Right | 1 |
| 1 | 6606-416 | Foil, Protective | 1 |
| 9611-538 | Decal, Side Panel - Upper Front - Right | ||
| 9611-566 | Decal, Side Panel - Lower Front - Right | ||
| 1 | 9611-564 | Decal, Side Panel - Lower Rear - Right | 1 |
| 3718-207 | Panel, Side - Left - w/Decals - Black (inc. 12-19) | ||
| 1 | 4718-101 | Panel, Side w/o Decals - Left - Black (inc. 13-16) | 1 |
| 1 | 0617-631 | Foam, Side Panel - Center Front - Left | 1 |
| 1 | 0617-629 | Foam, Side Panel - Upper Rear - Left | 1 |
| 1 | 0617-633 | Foam, Side Panel - Lower Front - Left | 1 |
| 1 | 0617-635 | Foam, Side Panel - Lower Rear - Left | 1 |
| 9611-539 | Decal, Side Panel - Upper Front - Left | ||
| 1 | 9611-567 | Decal, Side Panel - Lower Front - Left | 1 |
| 1 | 9611-565 | Decal, Side Panel - Lower Rear - Left | 1 |
| 2 | 8050-127 | Washer | 2 |
| 2 | 8060-486 | Rivet | 2 |
| 2 | 0605-283 | Clip, Hairpin | 2 |
| 2 | 0607-447 | Cable | 2 |
| 1 | 5706-531 | Screen, Intake | 1 |
| 1 | 0619-206 | Foil, Protective | 1 |
| 1 | 1702-279 | Duct, Air - Clutch W/Foil (inc. 27) | 1 |
| 1 | 6606-462 | Foil, Protective Optional | 1 |
| 2 | 1623-030 | Clip, U-Nut | 2 |
| 2 | 0623-797 | Screw, Self-Tapping | 2 |
| 1 | 3718-236 | Plate, Skid - Right - w/Decals - Black (inc. 31-37 and one No. 38) | 1 |
| 1 | 3718-234 | Plate, Skid - Right - w/o Decals - Black (inc. 32-37) | 1 |
| 1 | 0617-636 | Foam, Skid Plate - Upper Front - Right | 1 |
| 1 | 0617-638 | Foam, Skid Plate - Center Front - Right | 1 |
| 1 | 0617-640 | Foam, Skid Plate - Upper Rear - Right | 1 |
| 29 | 8061-708 | Rivet | 29 |
| 1 | 1712-722 | Deflector, Heat | 1 |
| 11 | 0123-802 | Washer | 11 |
| 9611-517 | Decal, Side Panel - Front | ||
| 1 | 3718-237 | Plate, Skid - Left - w/Decals - Black (inc. 40-43 and one No. 38) | 1 |
| 1 | 3718-235 | Plate, Skid - Left - w/o Decals - Black (inc. 41-43) | 1 |
| 1 | 0617-637 | Foam, Skid Plate - Upper Front - Left | 1 |
| 1 | 0617-639 | Foam, Skid Plate - Center Front - Left | 1 |
| 1 | 0617-641 | Foam, Skid Plate - Upper Rear - Left | 1 |
| 2 | 1623-748 | Clip, Retaining | 2 |
| 2 | 5606-639 | Pin, Retaining | 2 |
| 1 | 2612-685 | Plate, Exhaust Outlet | 1 |
| 2612-669 | Seal, Exhaust Outlet | ||
| 6 | 8060-508 | Rivet | 6 |
| 1623-129 | Screw, Self-Tapping | ||
| 1 | 3718-302 | Fascia, Front - Right - Black (inc. 51) | 1 |
| 1 | 6606-404 | Foil, Protective | 1 |
| 6606-343 | Fascia, Front - Left - Black | ||
| 2 | 0623-784 | Screw, Self-Tapping | 2 |
