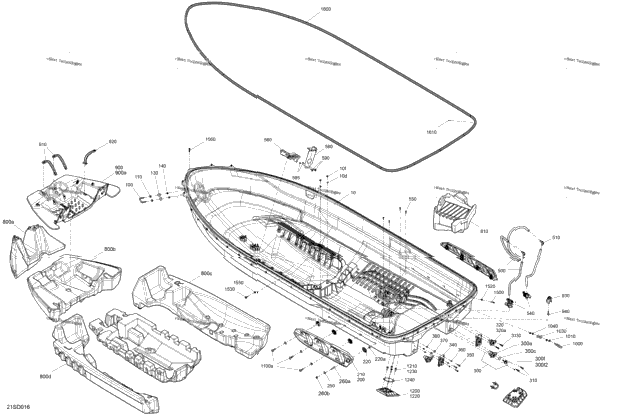

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 292002891 | Hull Ass'y Includes 10 to 10f | 1 |
| 2 | 234080600 | Flat Washer M8, Stainless | 2 |
| 2 | 232581200 | Hex. Elastic Nut M8 Brass | 2 |
| 1 | 292000933 | U-Clamp | 1 |
| 2 | 293050001 | Flat Washer M8.5 x 18 | 2 |
| 2 | 250200175 | Flat Washer 8 mm, Stainless | 2 |
| 1 | 292001953 | RH Sponson | 1 |
| 1 | 292001954 | LH Sponson | 1 |
| 8 | 293450387 | Housing Nut M8 Includes 220 to 220a | 8 |
| 1 | 233181600 | Hex. Flange Nut M8 | 1 |
| 8 | 234082410 | Flat Washer 8 mm | 8 |
| 1 | 206285044 | Socket Set Screw M8 x 50 | 1 |
| 1 | 233081416 | Hex. Flange Nut M8 | 1 |
| 2 | 292002766 | Through Hull Fitting Ass'y Includes 300 to 300f | 2 |
| 1 | 292002765 | Through Hull Fitting | 1 |
| 1 | 293830080 | Floating Ball | 1 |
| 1 | 292002022 | Plug Ass'y Includes 300f to 300f2 | 1 |
| 1 | 293300067 | O-Ring | 1 |
| 4 | 250000879 | Plastite Torx Screw M6.81X30 | 4 |
| 1 | 292002768 | Through Hull Fitting Ass'y Includes 320 to 320a | 1 |
| 2 | 250000879 | Plastite Torx Screw M6.81X30 | 2 |
| 2 | 292002697 | Ladder Trim Fastener | 2 |
| 6 | 250000924 | Truss Cone Torx Screw M6 X 30 | 6 |
| 6 | 234061600 | Stainless Flat Washer M6 | 6 |
| 6 | 250200022 | Flat Washer M6.6 X 22 | 6 |
| 6 | 232561200 | Brass Elastic Stop Nut M6 | 6 |
| 4 | 219704393 | Polyurethane Hose 1000Mm Long | 4 |
| 2 | 293710152 | Fitting Elbow 90° | 2 |
| 2 | 269800956 | Pump Support | 2 |
| 4 | 211000023 | Hex. Screw 10-14 X 7/8” | 4 |
| 1 | 292002395 | Battery Support | 1 |
| 1 | 292002434 | Battery Support | 1 |
| 2 | 250000965 | Hex Screw M6 X 20 | 2 |
| 2 | 232561200 | Brass Elastic Stop Nut M6 | 2 |
| 1 | 292002405 | Float Hull Front Upper | 1 |
| 1 | 292002399 | Float Hull Front | 1 |
| 1 | 292002229 | RH Center Float Hull | 1 |
| 1 | 292002230 | LH Center Float Hull | 1 |
| 1 | 292002244 | Foam Support | 1 |
| 1 | 292002397 | Panel Includes 900 to 900a | 1 |
| 1 | 292001868 | Trunk Shield | 1 |
| 2 | 269502417 | Strap | 2 |
| 1 | 269502417 | Strap | 1 |
| 1 | 270000988 | Strap Anchor | 1 |
| 1 | 250000399 | Hexagonal Cap Screw M6 X35 | 1 |
| 2 | 292000933 | U-Clamp | 2 |
| 4 | 293050001 | Flat Washer M8.5 x 18 | 4 |
| 4 | 250200175 | Flat Washer 8 mm, Stainless | 4 |
| 4 | 232581200 | Hex. Elastic Nut M8 Brass | 4 |
| 8 | 250001215 | Torx Head Screw M8 X 35 | 8 |
| 1 | 292002102 | LH Trim Tab | 1 |
| 4 | 250000978 | Hexagonal Cap Screw M6 X 25 | 4 |
| 1 | 292002103 | RH Trim Tab | 1 |
| 2 | 277002171 | Gasket | 2 |
| 9 | 250001183 | Hex Sems Screw M6X30 | 9 |
| 9 | 233261200 | Nut Flange Elastic M6 | 9 |
| 1 | 250001183 | Hex Sems Screw M6X30 | 1 |
| 1 | 233261200 | Nut Flange Elastic M6 | 1 |
| 5 | 243163060 | Hex. Flange Screw M6.81 X 30 | 5 |
| 1 | 292002242 | Gasket | 1 |
| 6 | 250001132 | Self Drilling Screw #8 X 3/4 | 6 |
