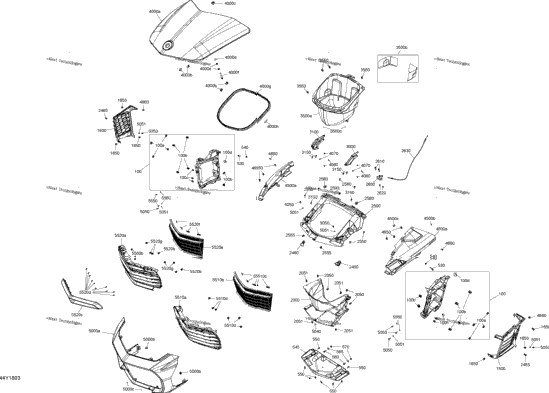

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 708200437 | LH Breakaway Lateral Tower Leg Includes 100 to 100d | 1 |
| 1 | 708200438 | RH Breakaway Lateral Tower Leg Includes 100 to 100d | 1 |
| 4 | 293720053 | Grommet | 4 |
| 6 | 250100169 | Panel Nut M6 X 1 | 6 |
| 3 | 250100176 | Panel Nut M5 X 0.8 | 3 |
| 1 | 414916600 | Black, Nylon Cap | 1 |
| 2 | 207663054 | Hex. Flange Screw M6 X 30 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 708200405 | Front Skid Plate | 1 |
| 8 | 207662044 | Hex. Flange Screw M6 X 20 | 8 |
| 2 | 207682534 | Hex. Flange Screw M8 X 25 | 2 |
| 2 | 234082430 | Flat Washer M8 | 2 |
| 2 | 233281434 | Hex. Flange Elastic Nut M8 | 2 |
| 1 | 708200406 | LH Front Lateral Vent | 1 |
| 1 | 708200407 | RH Front Lateral Vent | 1 |
| 6 | 293150089 | Tuflok Plastic Rivet | 6 |
| 1 | 708200362 | Front Air Duct Module | 1 |
| 4 | 293150089 | Tuflok Plastic Rivet | 4 |
| 1 | 708200493 | LH Front Union Link | 1 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 1 | 708200494 | RH Front Union Link | 1 |
| 1 | 708200446 | Sub-Frame Type Structure Includes 2500 to 2500a | 1 |
| 8 | 250100176 | Panel Nut M5 X 0.8 Not Shown | 8 |
| 4 | 207662034 | Hex. Flange Screw M6 X 20 | 4 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 2 | 210262050 | Hexagonal Head Screw | 2 |
| 2 | 705000321 | Oval Washer | 2 |
| 1 | 705003911 | Spring | 1 |
| 1 | 705007379 | Latch | 1 |
| 2 | 207663544 | Hex. Flange Screw M6 X 35 | 2 |
| 1 | 517305742 | Hood Cable | 1 |
| 1 | 710002896 | Tie-Rap Clip Not Shown | 1 |
| 1 | 708200673 | LH Hood Hinge Includes 3000 to 3000a | 1 |
| 7 | 234051670 | Flat Washer M5 Not Shown | 7 |
| 1 | 708200674 | RH Hood Hinge Includes 3100 to 3100a | 1 |
| 6 | 250000715 | Torx Truss Screw M5 X 20 | 6 |
| 1 | 708200403 | Front Storage Bin | 1 |
| 1 | 708200490 | Heat Shield Sheet | 1 |
| 2 | 705006633 | Stopper | 2 |
| 1 | 708200379 | Steel Black Hood Model Steel Black | 1 |
| 1 | 708200667 | Oxford Blue - Hood Model Oxford Blue | 1 |
| 1 | 708200743 | Jet Black, Hood Model Jet Black | 1 |
| 1 | 708200677 | Vegas White Pearl, Hood Model Vegas White | 1 |
| 1 | 708200803 | Intense Red, Hood Model Intense Red | 1 |
| 4 | 250100176 | Panel Nut M5 X 0.8 | 4 |
| 1 | 269501943 | Elastic Nut Housing M8 Includes 4000c to 4000c1 | 1 |
| 1 | 232581200 | Hex. Elastic Nut M8 Brass | 1 |
| 1 | 234081410 | Flat Washer 8 mm | 1 |
| 2 | 232180600 | Hex. Jam Nut M8 | 2 |
| 1 | 705002223 | Lug | 1 |
| 1 | 219704371 | Neoprene Seal 3000 mm Long | 1 |
| 1 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long | 1 |
| 4 | 250000578 | Torx Truss Screw M5 X 16, T25 | 4 |
| 4 | 234051670 | Flat Washer M5 | 4 |
| 1 | 708200450 | Steel Black, LH Vent Panel Model Steel Black | 1 |
| 1 | 708200669 | Oxford Blue LH Vent Panel Model Oxford Blue | 1 |
| 1 | 708200752 | Jet Black, LH Vent Fairing Model Jet Black | 1 |
| 1 | 708200679 | Vegas White Pearl, LH Vent Panel Model Vegas White | 1 |
| 1 | 708200804 | FAIRING FL B-372 Model Intense Red | 1 |
| 1 | 708200451 | Steel Black, RH Vent Panel Model Steel Black | 1 |
| 1 | 708200671 | Oxford Blue - RH Vent Panel Model Oxford Blue | 1 |
| 1 | 708200755 | Jet Black, RH Vent Panel Model Jet Black | 1 |
| 1 | 708200680 | Vegas White Pearl, RH Vent Panel Model Vegas White | 1 |
| 1 | 708200805 | Intense Red, RH Vent Panel Model Intense Red | 1 |
| 1 | 705006634 | Polyurethane Stopper | 1 |
| 1 | 293830143 | Rubber Pad | 1 |
| 2 | 250000715 | Torx Truss Screw M5 X 20 | 2 |
| 1 | 708200665 | Oxford Blue Front Fascia | 1 |
| 1 | 708200666 | Circuit Yellow Front Fascia | 1 |
| 1 | 708200691 | Vegas White Front Fascia | 1 |
| 1 | 708200693 | Monolith Black, Front Fascia | 1 |
| 1 | 708200694 | Steel Metallic Black, Front Fascia | 1 |
| 1 | 708200747 | Jet Black, Front Fascia | 1 |
| 1 | 708200806 | Intense Red, Front Fascia | 1 |
| 2 | 250100176 | Panel Nut M5 X 0.8 | 2 |
| 6 | 234051670 | Flat Washer M5 | 6 |
| 1 | 708200404 | Front Grille | 1 |
| 2 | 517302785 | Edge Clip | 2 |
| 1 | 708200392 | Bright Chrome, Front Mouth CHROME | 1 |
| 1 | 708200468 | Carbon Black - Front Mouth DARK | 1 |
| 1 | 708200789 | Liquid Gold, Front Mouth 10TH | 1 |
| 10 | 250000577 | Torx Truss Screw K40 X 12 | 10 |
| 1 | 708200393 | Front Deflector Grille | 1 |
| 4 | 705004838 | Flat Clip | 4 |
| 6 | 517302785 | Edge Clip | 6 |
