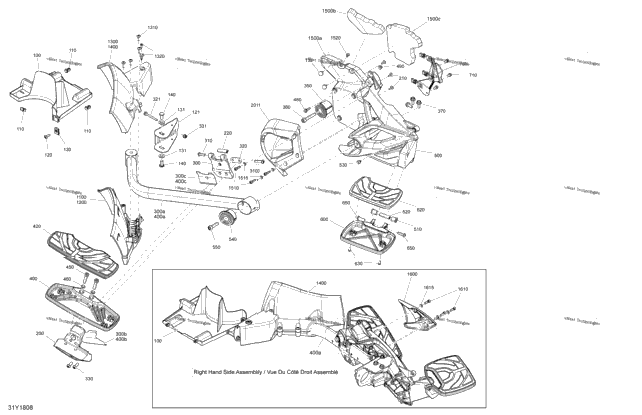

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705007785 | LH Front Skid Plate | 1 |
| 1 | 705007786 | RH Front Skid Plate | 1 |
| 3 | 293150230 | Tuflok Plastic Rivet | 3 |
| 1 | 250000446 | Torx Screw M6 X 20, Scotch Grip | 1 |
| 2 | 705008950 | Tube Support | 2 |
| 1 | 250100208 | Panel Nut M6 X 1.0 | 1 |
| 2 | 506152582 | Washer | 2 |
| 1 | 708000759 | Rubber Stopper | 1 |
| 2 | 250000719 | Hex. Cap Screw Full Thread M10 X 20 | 2 |
| 1 | 705009466 | Carbon Black, LH Slider Outside | 1 |
| 1 | 705009463 | Carbon Black, RH Slider Outside | 1 |
| 1 | 705007780 | LH Engine Fairing | 1 |
| 1 | 250000725 | Screw M4 X 16 | 1 |
| 2 | 705013628 | Pivot Pin | 2 |
| 1 | 705013117 | Black, LH Slider Clamp | 1 |
| 1 | 705013120 | Black, RH Slider Clamp | 1 |
| 1 | 705008955 | Carbon Black, LH Footrest Support | 1 |
| 1 | 705009452 | LH Frame Protector Outside | 1 |
| 1 | 705009025 | LH Frame Protector Inside | 1 |
| 4 | 250000830 | Socket Head Screw M8 X 25 | 4 |
| 2 | 705008553 | Back Plate | 2 |
| 1 | 250000778 | Hex. Flange Screw M6 X 60 | 1 |
| 2 | 233261466 | Hex. Flange Elastic Nut M6 | 2 |
| 2 | 705010202 | Pivot Cap | 2 |
| 2 | 205505560 | Socket Head Screw | 2 |
| 6 | 207582054 | Hex Screw Washer Head M8 X 20 | 6 |
| 1 | 705009454 | LH Foot Board | 1 |
| 1 | 705009455 | RH Foot Board | 1 |
| 1 | 705008954 | Carbon Black, RH Footrest Support | 1 |
| 1 | 705009453 | Rh Protector | 1 |
| 1 | 705009023 | RH Frame Protector Inside | 1 |
| 1 | 705009229 | LH Pad | 1 |
| 1 | 705009230 | RH Pad | 1 |
| 4 | 250000997 | Thin Socket Screw, Scotch Grip, M10 | 4 |
| 4 | 250200105 | Stainless Flat Washer, 10 mm | 4 |
| 1 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 | 1 |
| 1 | 233261466 | Hex. Flange Elastic Nut M6 | 1 |
| 1 | 705008276 | Bright Chrome, LH Rear Footrest Support Chrome | 1 |
| 1 | 705009401 | Carbon Black, LH Rear Footrest Support Black | 1 |
| 1 | 705008277 | Bright Chrome, RH Rear Footrest Support Chrome | 1 |
| 1 | 705009402 | Carbon Black, RH Rear Footrest Support Black | 1 |
| 4 | 705008166 | Spacer Bushing | 4 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 2 | 705010203 | Pivot Cap | 2 |
| 2 | 244003560 | SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP | 2 |
| 2 | 705010759 | Carbon Black, RH Foot Board | 2 |
| 2 | 705009234 | Foot Board Pad, Passenger | 2 |
| 4 | 250000099 | Allen Plastite Screw #12 | 4 |
| 1 | 705008961 | LH Fairing Support | 1 |
| 1 | 705008962 | RH Fairing Support | 1 |
| 6 | 210261250 | Hex. Flange Screw M6 X 12 | 6 |
| 1 | 705007794 | LH Deflector | 1 |
| 1 | 705007795 | RH Deflector | 1 |
| 1 | 705009027 | LH Shell | 1 |
| 8 | 250000586 | Torx Truss M5 X 20 | 8 |
| 2 | 414745900 | Tuflock Phillips Plastic Screw | 2 |
| 1 | 705009029 | RH Shell | 1 |
| 1 | 705009144 | LH Acoustic Fairing | 1 |
| 1 | 705009344 | Acoustic Foam | 1 |
| 1 | 705009162 | Acoustic Foam | 1 |
| 3 | 205562060 | Socket Head Screw M6 X 20, Scotch Grip | 3 |
| 3 | 234061600 | Stainless Flat Washer M6 | 3 |
| 1 | 293730024 | Dart, Fastex | 1 |
| 1 | 705007781 | RH Engine Fairing | 1 |
