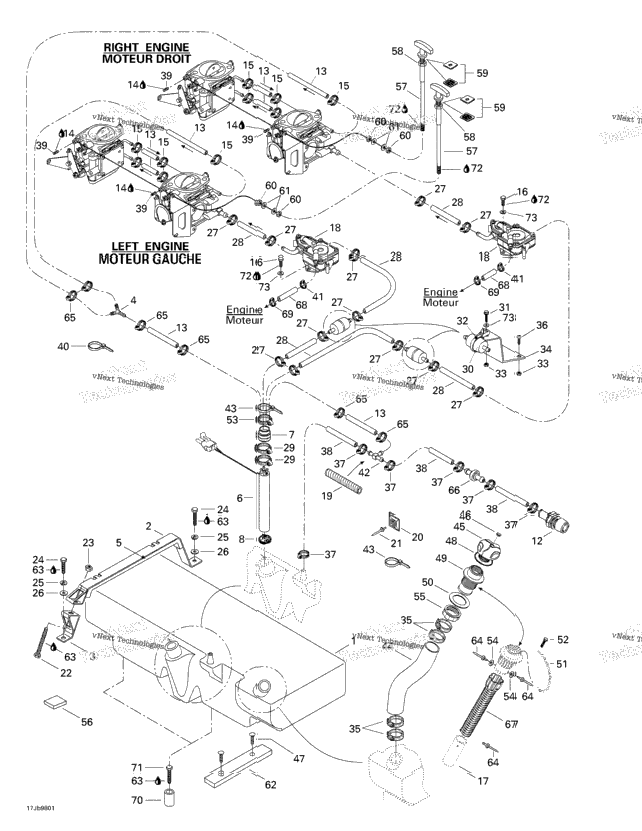

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204560073 | Fuel Tank, Plastic | ||
| 204560015 | Aluminum Fuel Tank | ||
| 204560011 | Fuel Tank Strap | ||
| 2 | 275500252 | TANK BRACKET | 2 |
| 1 | 293710059 | Y-Fitting | 1 |
| 204560037 | Protector Pad | ||
| 204560059 | BAFFLE PICK-UP ASS'Y Includes 6 - 11. | ||
| 204560066 | Fuel Tube Adaptor | ||
| 275500397 | FUEL FILTER | ||
| 3 | 278000218 | Wire Seal | 3 |
| 3 | 278000223 | Female Terminal | 3 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 1 | 275500206 | VENT BOAT | 1 |
| 204000068 | Hose 6 mm | ||
| XXXX | Not Available As Spare Part - Loctite 220 | ||
| 10 | 293650070 | NORMA CLAMP | 10 |
| 4 | 210000011 | Hex. Screw M6 x 12 | 4 |
| XXXX | Not Available As Spare Part - Aluminum Tube | ||
| 2 | 270500388 | Fuel Pump | 2 |
| 204560078 | Vent Hose Protector | ||
| 293750015 | TIE RAP MOUNT | ||
| 1 | 293150008 | Pop Rivet 3/16" | 1 |
| 2 | 215085560 | Hexagonal Screw M8 x 55 | 2 |
| 2 | 212000002 | Elastic Stop Nut M8 | 2 |
| 4 | 210000002 | Hexagonal Screw M8 x 25 | 4 |
| 4 | 213000001 | Lock-Washer 8 mm | 4 |
| 4 | 213200011 | Flat Washer 8 mm | 4 |
| 12 | 293650087 | NORMA CLAMP | 12 |
| 204560070 | Hose 5/16" | ||
| 2 | 293650023 | Tridon Clamp | 2 |
| 204560077 | FUEL FILTER | ||
| 2 | 210000004 | Hex. Screw M6 x 20 | 2 |
| 293750017 | Tie-Rap | ||
| 6 | 212000001 | Elastic Stop Nut M6 | 6 |
| 204560007 | Fuel Filter Support | ||
| 4 | 293650023 | Tridon Clamp | 4 |
| 211000003 | Screw M6 x 16 | ||
| 6 | 293650069 | NORMA CLAMP | 6 |
| 275500205 | HOSE 16 MM | ||
| 210100014 | Allen Screw M4 x 6 | ||
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 2 | 293650042 | Oetiker Clamp | 2 |
| 204560038 | T-Fitting | ||
| 2 | 294000606 | Tie Rap 180 mm | 2 |
| 204560033 | Filler Neck Hose | ||
| 1 | 275500153 | Fuel Cap Ass'y Includes 45 - 46. | 1 |
| 1 | 293000034 | Black, Snap Cap | 1 |
| 8 | 293730006 | Black, Dart | 8 |
| 293250017 | Gasket | ||
| 275500247 | Filler Neck | ||
| 1 | 293250029 | Gasket | 1 |
| 275500015 | Oil Cap Chain | ||
| 1 | 211000028 | Screw K40 x 10 | 1 |
| 1 | 293650078 | Norma Clamp | 1 |
| 2 | 213200018 | Washer 3 mm | 2 |
| 1 | 211100012 | Filler Neck Nut, Fuel | 1 |
| 204560027 | Protecteur Pad | ||
| 270000207 | RH Choke Cable Includes 57 - 61. | ||
| 270000208 | LH CHOKE CABLE | ||
| 211100007 | Hex. Nut | ||
| 291000457 | Choke Plate | ||
| 4 | 212100003 | Lock Nut M6 | 4 |
| 4 | 213200001 | Flat Washer 6 mm | 4 |
| 293830021 | Rubber Pad | ||
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 293150057 | Rivet 1/8” | ||
| 293650088 | Norma Clamp | ||
| 204560074 | Vent Line Surge Protector | ||
| 275500067 | INTERNAL FILLER NECK HOSE | ||
| 1 | 219704396 | HOSE-6MM. 5000MM LONG | 1 |
| 2 | 293650038 | Oetiker Clamp | 2 |
| 204560039 | Rubber Bumper | ||
| 2 | 215853568 | Screw M5 x 35 | 2 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 6 | 213200001 | Flat Washer 6 mm | 6 |
