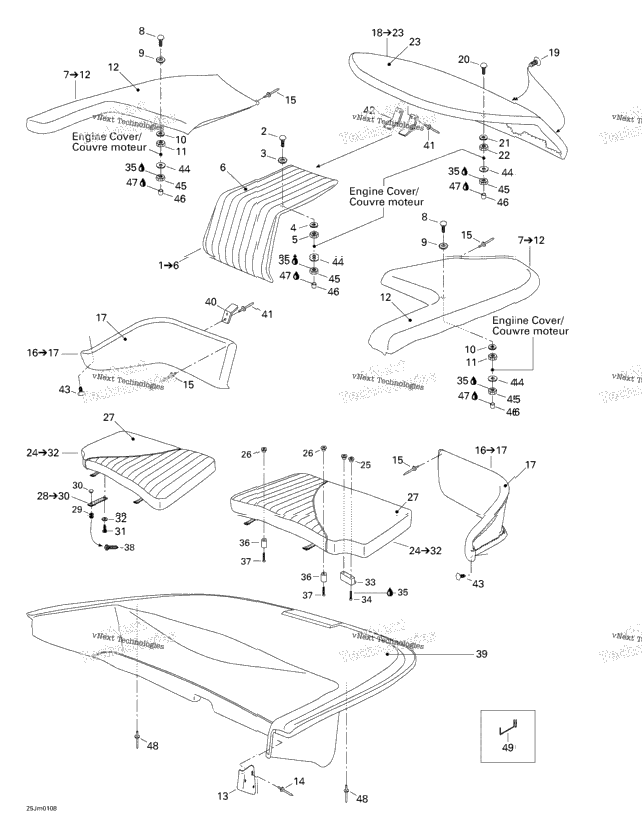

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204611792 | Sundeck Center Cushion (185 Single dist. Includes 1 - 6. | ||
| 204000130 | Elevator Bolt | ||
| 3 | 211200054 | EXTERNAL TOOTH LOCK WASHER 10 MM | 3 |
| 3 | 234461608 | External Serrated Lock Washer 6 mm | 3 |
| 204100060 | Hex. Jam Nut | ||
| 204611457 | Center Cushion Cover | ||
| 204611458 | Sundeck Cushion (Port Side) (185 Includes 7 - 12. | ||
| 204611466 | Sundeck Cushion (Starboard) (185 | ||
| 204100088 | Screw #8 X 1/2” | ||
| 6 | 211200054 | EXTERNAL TOOTH LOCK WASHER 10 MM | 6 |
| 6 | 234461608 | External Serrated Lock Washer 6 mm | 6 |
| 204611465 | Cushion Cover (Port Side) | ||
| 204611473 | Cushion Cover (Starboard) | ||
| 204611599 | Upholstery Cap, Port Side | ||
| 204611600 | Upholstery Cap, Starboard | ||
| 6 | 293150037 | Avdel Rivet 3/16" | 6 |
| 4 | 293150013 | Pop Rivet 3/16" | 4 |
| 204611795 | Sundeck Backrest (Port Side) (185 Includes 16 - 17. | ||
| 204611798 | Sundeck Backrest (Starboard) | ||
| 204611480 | Sundeck Backrest Cover (Port Side) (185 | ||
| 204611487 | Sundeck Backrest Cover (Starboard)(185 | ||
| 204611605 | Sundeck Rear Cushion (185 Single dist.) Includes 18 - 23. | ||
| 4 | 293730006 | Black, Dart | 4 |
| 2 | 204100039 | SCREW 1/4?-20 X 2? | 2 |
| 2 | 234461608 | External Serrated Lock Washer 6 mm | 2 |
| 204611495 | Sundeck Rear Cushion Cover | ||
| 204611319 | Rear Seat Cushion (Port Side) Includes 24 - 32. | ||
| 204611320 | Rear Seat Cushion (Starboard) | ||
| 4 | 204100021 | TEE-NUT 1/4?- 20 | 4 |
| 4 | 204100044 | TEE-NUT #10-32 | 4 |
| 204611413 | Rear Seat Cushion Cover (Port Side) | ||
| 204611419 | Rear Seat Cushion Cover (Starboard) | ||
| 204611416 | Retaining Strap (185) Includes 28 - 30. | ||
| 4 | 204000083 | SNAP BASE | 4 |
| 4 | 204611609 | SNAP COVER | 4 |
| 4 | 204100054 | SCREW 8 X 3/4? | 4 |
| 4 | 211200019 | FLAT WASHER | 4 |
| 204611598 | Seat Base Catch | ||
| 4 | 204100039 | SCREW 1/4?-20 X 2? | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 204560039 | Rubber Bumper | ||
| 204100075 | Screw 10-32 X 1-1/4” | ||
| 204100046 | Threaded Stud 5/8” | ||
| 204071234 | Fiberglass Engine Cover | ||
| 10 | 204611531 | RETAINING CLIP | 10 |
| 24 | 293150008 | Pop Rivet 3/16" | 24 |
| 2 | 204611597 | SUNDECK PLATE | 2 |
| 8 | 293730021 | Dart | 8 |
| 11 | 204100089 | FLAT WASHER 9/32? | 11 |
| 211100026 | HEX. NUT 1/4 | ||
| 204130008 | Plastic Cap, White | ||
| 219704463 | ADHESIVE LOCTITE 414 28ML | ||
| 2 | 293150011 | Pop Rivet 3/16" | 2 |
| 293730025 | Staple 1/4" |
